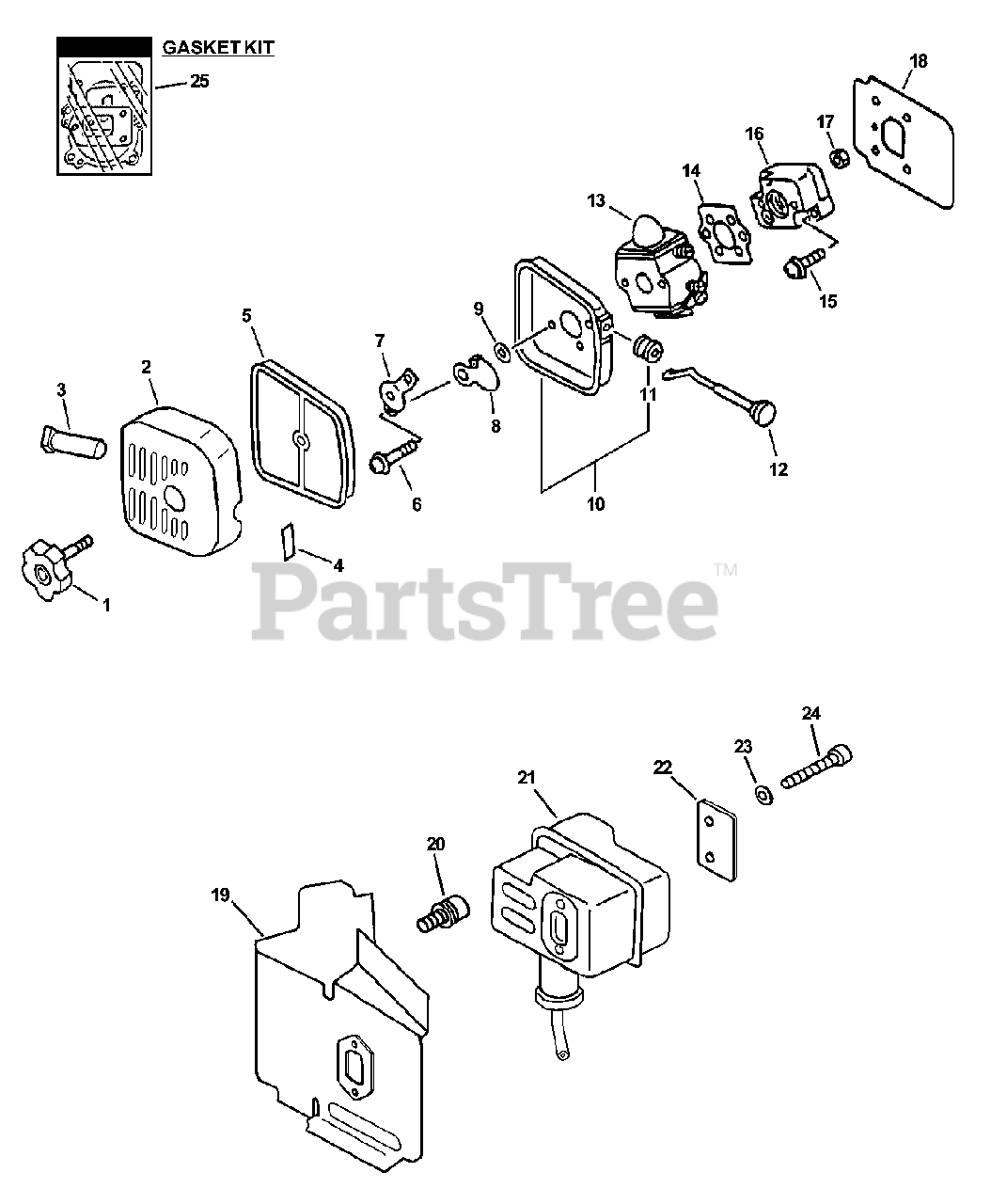

SV-6 - Little Wonder Engine (SN: 35001001 - 35999999) Intake, Exhaust Parts Diagram

Engine

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

2

Echo A232000041

COVER, AIR FILTER
(Superseded to A232000042)

$9.49

$

In Stock, Qty 10

0

3

Echo V141000010

PLUG

$0.99

$

Usually ships in 2-4 days

0

4

Echo X506000070

LABEL - CHOKE

$0.99

$

In Stock, Qty 9

0

5

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

6

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

7

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$5.49

$

In Stock, only 3 left!

0

8

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

9

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13030151730

CASE, AIR FILTER

Note: Includes ITEM 11

$21.99

$

Usually ships in 2-4 days

0

11

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

12

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

13

Echo 12520013124

CARBURETOR C1U-K54A
(Superseded to 12520013125)

$92.99

$

In Stock, Qty 7

0

14

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

15

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

16

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

17

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 2 left!

0

19

Echo V104000410

SHIELD, EXHAUST

$10.99

$

Usually ships in 2-4 days

0

20

Echo 9110704008

SCREW - 4X8

$0.99

$

In Stock, Qty 20+

0

21

Echo A300000410

MUFFLER
(Superseded to A300000411)

$102.99

$

Usually ships in 2-4 days

0

22

Echo V150000371

PLATE

$1.49

$

In Stock, Qty 9

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90010505070

SCREW - 5X70

$1.99

$

Usually ships in 2-4 days

0

28

Echo P021006190

GASKET KIT
(Superseded to P021006193)

$29.99

$

Usually ships in 2-4 days

0
