SV-6/2 - Little Wonder Engine (SN: 36001001 - 36999999) Fuel System Parts Diagram

Engine

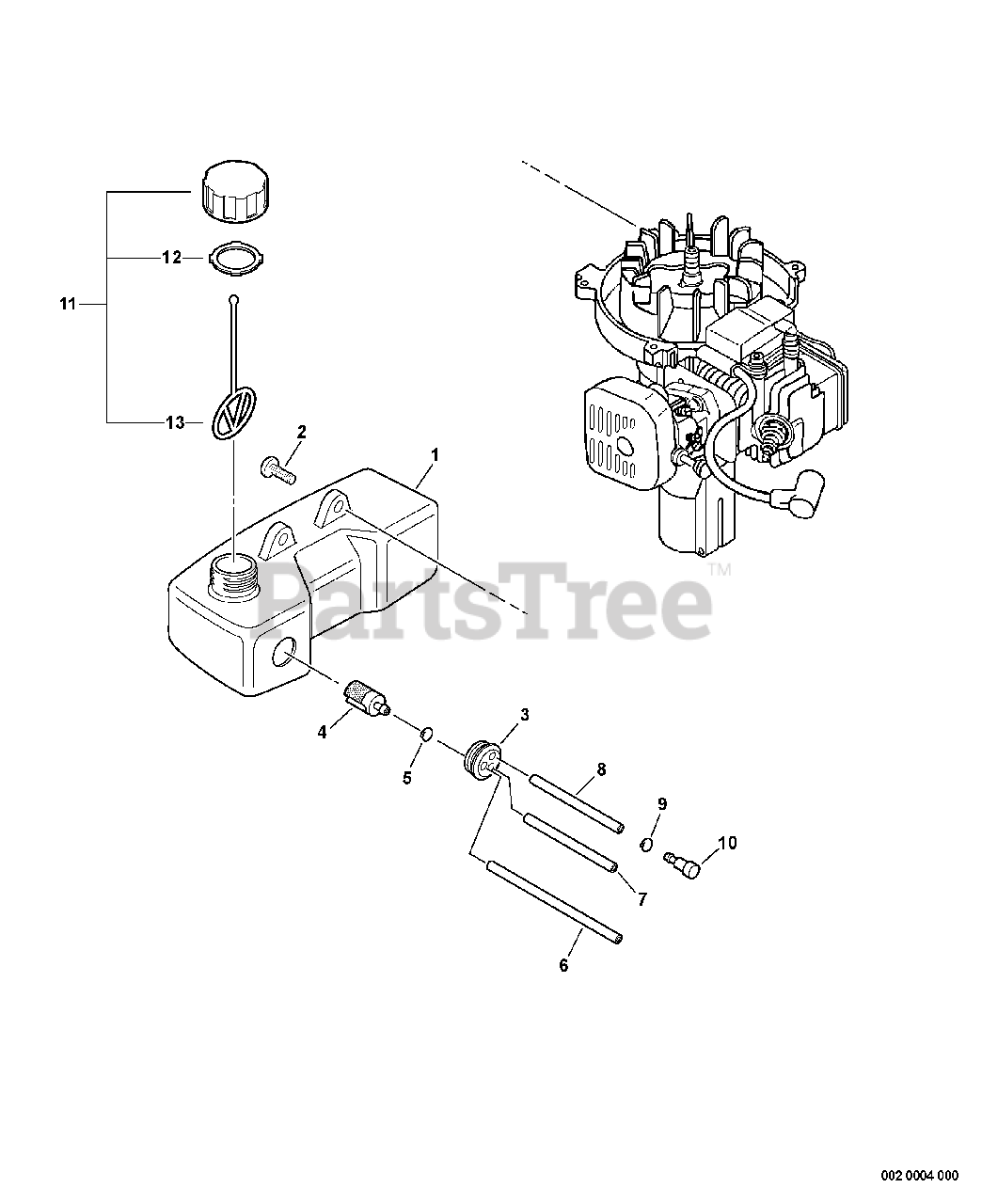

Fuel System Parts Diagram

  • Title

1

Echo A350000300

FUEL TANK ASSY

$22.99

$

In Stock, only 3 left!

0

2

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 12

0

3

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

4

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

5

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 15

0

7

Echo 13201049030

PIPE - 3X6X50 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 9

0

8

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

9

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

10

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

11

Echo 13100409060

CAP ASSY
(Superseded to P100006610)

Note: Includes ITEMS 12-13

$8.99

$

In Stock, only 1 left!

0

12

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

13

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0
