SV-6/2 - Little Wonder Engine (SN: 36001001 - 36999999) Engine Parts Diagram

Engine

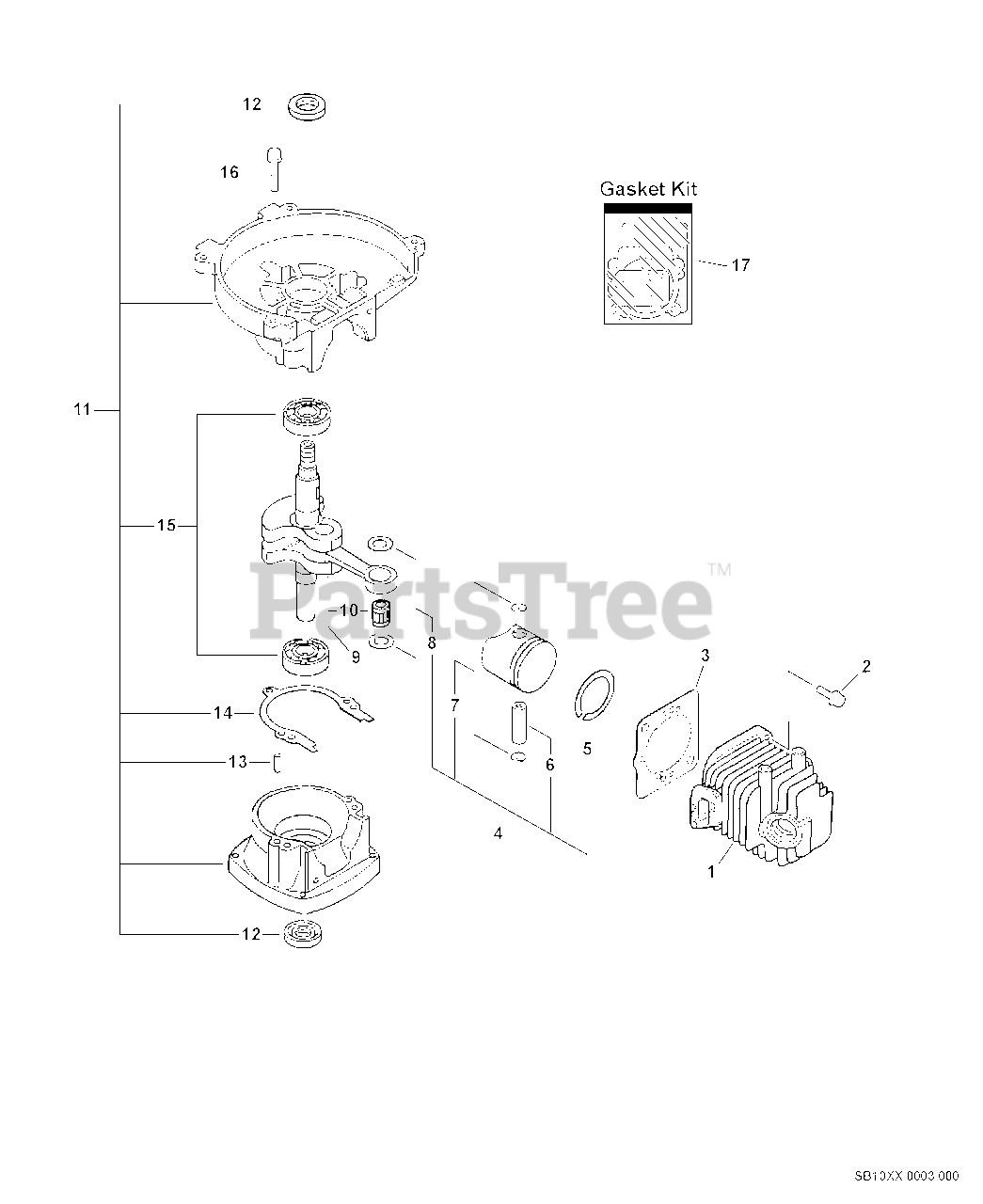

Engine Parts Diagram

  • Title

1

Echo A130000790

CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo V100000080

GASKET, CYLINDER

$5.99

$

In Stock, only 1 left!

0

4

Echo P021007712

PISTON KIT

Note: INCLUDES ITEMS 5-8

$50.99

$

In Stock, only 3 left!

0

5

Echo A101000090

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo A011000271

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEM 10

$

$

Not available

10

Echo V553000010

BEARING, NEEDLE - 8

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 12-16

$129.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

17

Echo P021006190

GASKET KIT
(Superseded to P021006193)

$29.99

$

Usually ships in 2-4 days

0
