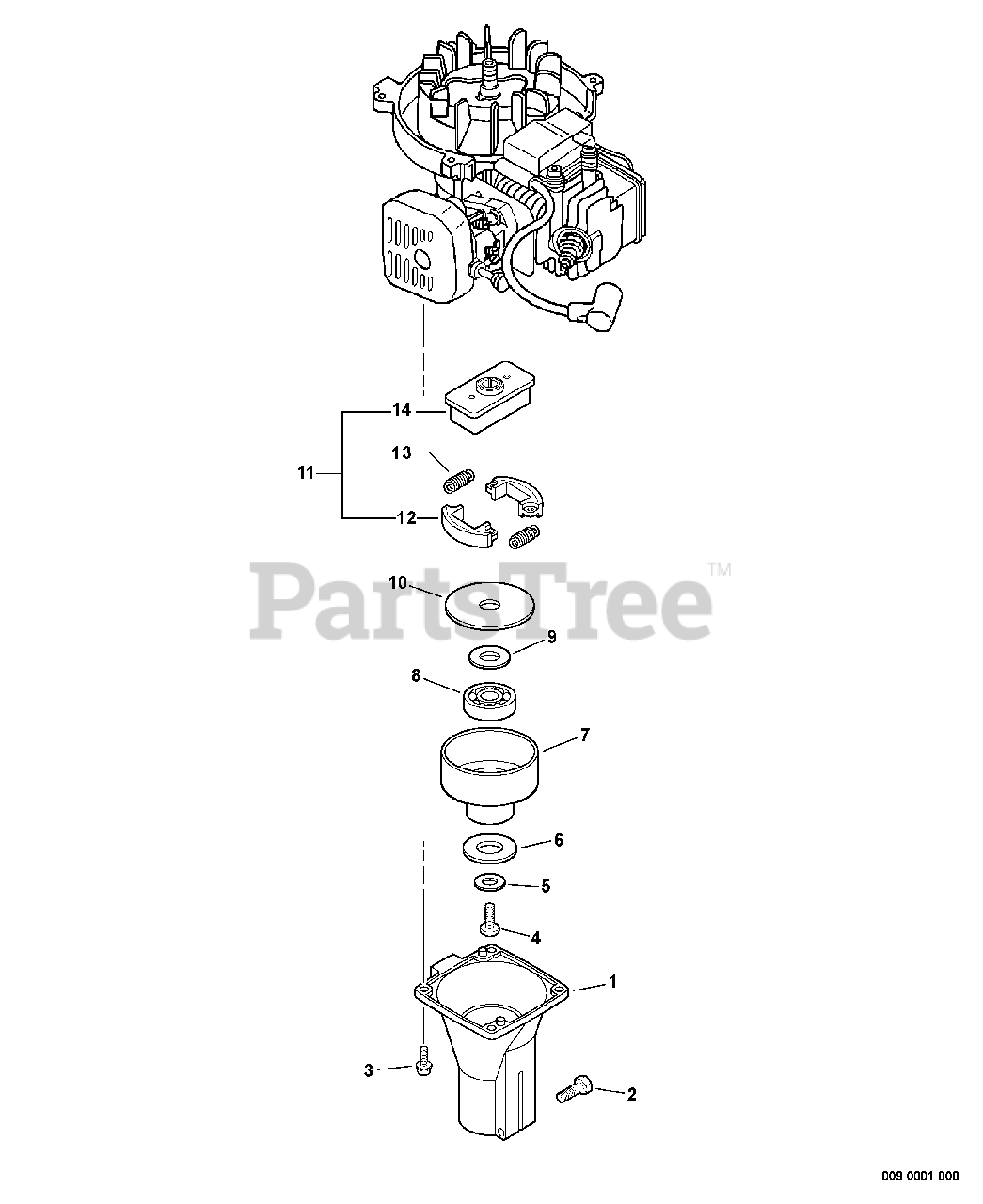

SV-6/2 - Little Wonder Engine (SN: 36001001 - 36999999) Clutch Case, Clutch Parts Diagram

Engine

Clutch Case, Clutch Parts Diagram

  • Title

1

Echo 61022311520

CASE, CLUTCH

$61.99

$

Usually ships in 2-4 days

0

2

Echo 13041611520

BOLT - 5X25
(Superseded to Discontinued)

$

$

Not available

3

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

4

Echo 90023806012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

5

Echo 17501411520

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

6

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

7

Echo 17501004634

DRUM, CLUTCH
(Superseded to 17501004635)

$30.99

$

Usually ships in 2-4 days

0

8

Echo 90080836000

BEARING, BALL - 6000

$15.99

$

Usually ships in 2-4 days

0

9

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

10

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

11

Echo 17500007531

CLUTCH ASSY

Note: Includes ITEMS 12-13

$58.99

$

Usually ships in 2-4 days

0

12

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

13

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

14

Echo 17501605020

HUB, CLUTCH

$10.99

$

Usually ships in 2-4 days

0
