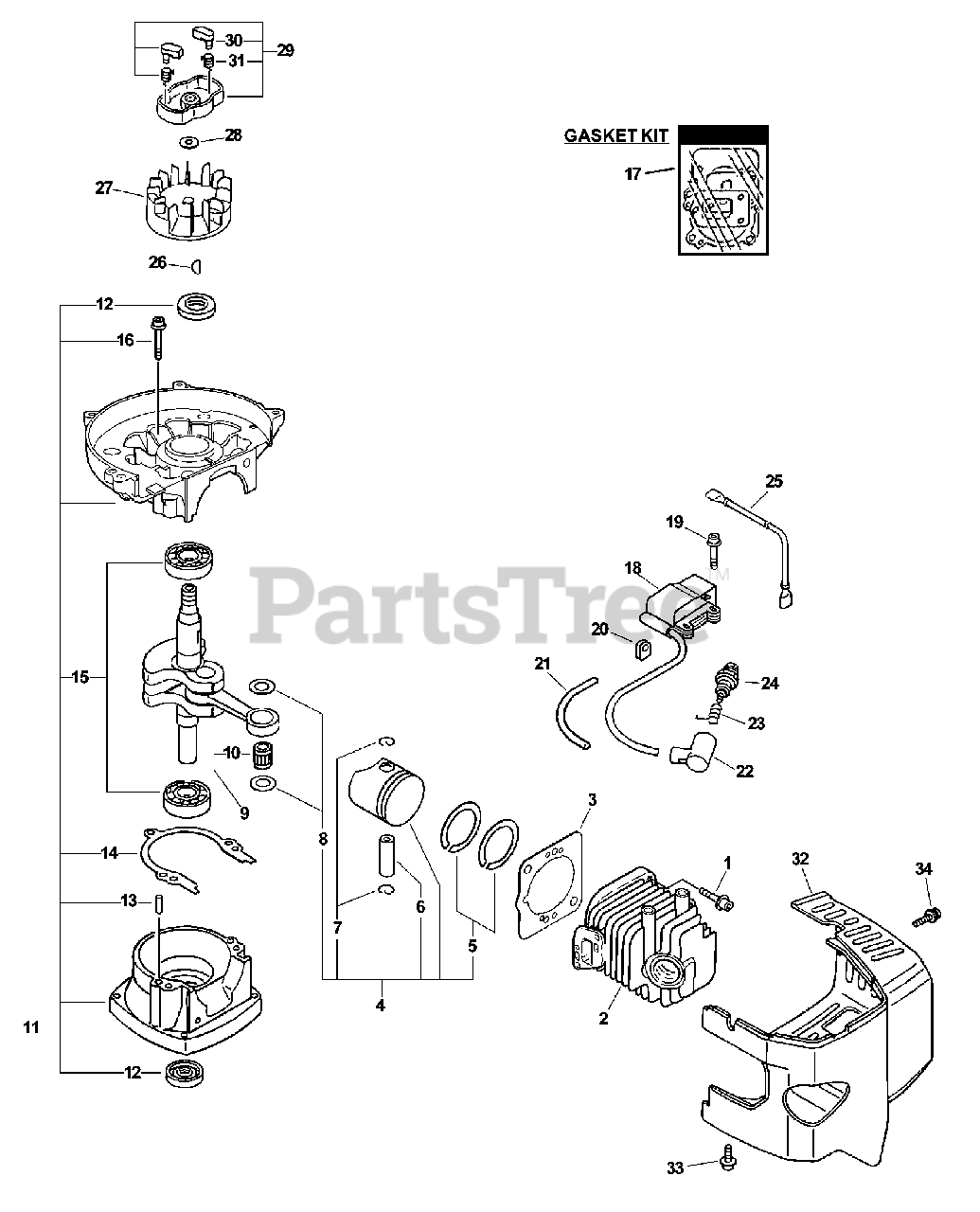

SV-6/1 - Little Wonder Engine (SN: 36001001 - 36999999) Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

Engine

Engine, Ignition, Starter Pawl Asy, Cylinder Cover Parts Diagram

  • Title
1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

2

Echo A130000531

CYLINDER

$107.99

$

Usually ships in 2-4 days

0

3

Echo V100000080

GASKET, CYLINDER

$5.99

$

In Stock, only 1 left!

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5-8

$77.99

$

In Stock, Qty 5

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo A011000271

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEM 10

$

$

Not available

10

Echo V553000010

BEARING, NEEDLE - 8

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020411521

CRANKCASE KIT

Note: Includes ITEMS 12-16

$129.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo P021006190

GASKET KIT
(Superseded to P021006193)

$29.99

$

Usually ships in 2-4 days

0

18

Echo A411000171

COIL, IGNITION

$145.99

$

Usually ships in 2-4 days

0

19

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

20

$0.99

$

In Stock, Qty 6

0

21

Echo V475002200

TUBE, INSULATOR

$1.49

$

In Stock, Qty 13

0

22

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 11

0

24

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.49

$

In Stock, Qty 20+

0

25

Echo V485000450

LEAD - IGNITION

$6.99

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0

27

Echo A409000150

FLYWHEEL

$76.99

$

Usually ships in 2-4 days

0

28

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

29

Echo 17720212220

STARTER PAWL ASSY

Note: INCLUDES ITEMS 30-31

$16.99

$

In Stock, Qty 18

0

30

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

31

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

32

Echo P021006161

COVER, ENGINE

$62.99

$

Usually ships in 2-4 days

0

33

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

34

Echo 9110704008

SCREW - 4X8

$0.99

$

In Stock, Qty 20+

0
