SV-5H/2 - Little Wonder Engine (SN: E15012001001 - E15012999999) Fuel System Parts Diagram

Engine

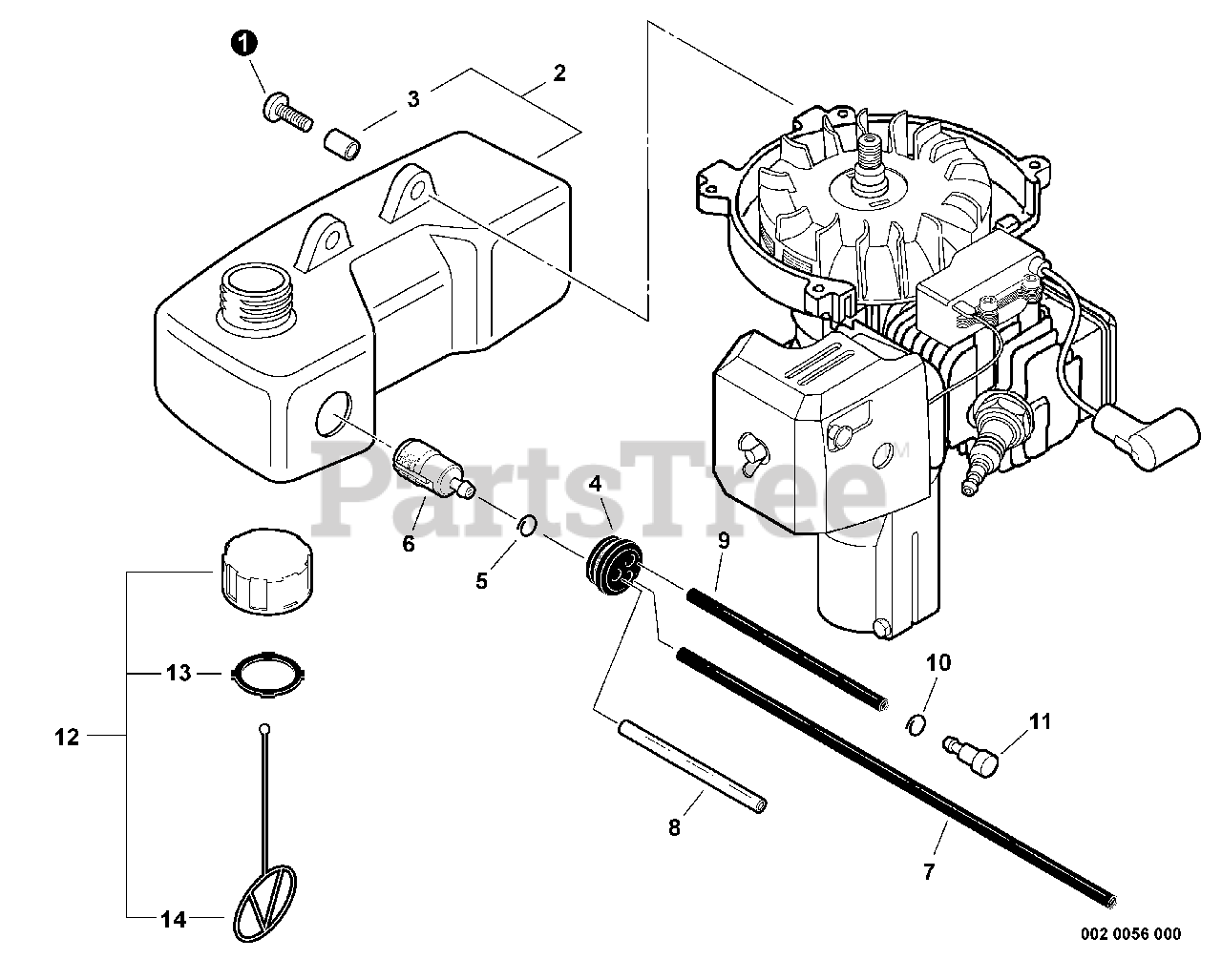

Fuel System Parts Diagram

  • Title

1

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 12

0

2

Echo A350001360

TANK, FUEL
(Superseded to P021036463)

Note: Includes ITEM 3

$47.99

$

Usually ships in 2-4 days

0

3

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

4

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 19

0

5

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

7

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, only 4 left!

0

8

Echo 13201049030

PIPE - 3X6X50 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 7

0

9

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13130054631

VENT, FUEL TANK

$

$

Currently unavailable

12

Echo P021034480

CAP ASSY - BLACK

Note: Includes ITEMS 13- 14

$6.49

$

Usually ships in 2-4 days

0

13

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0
