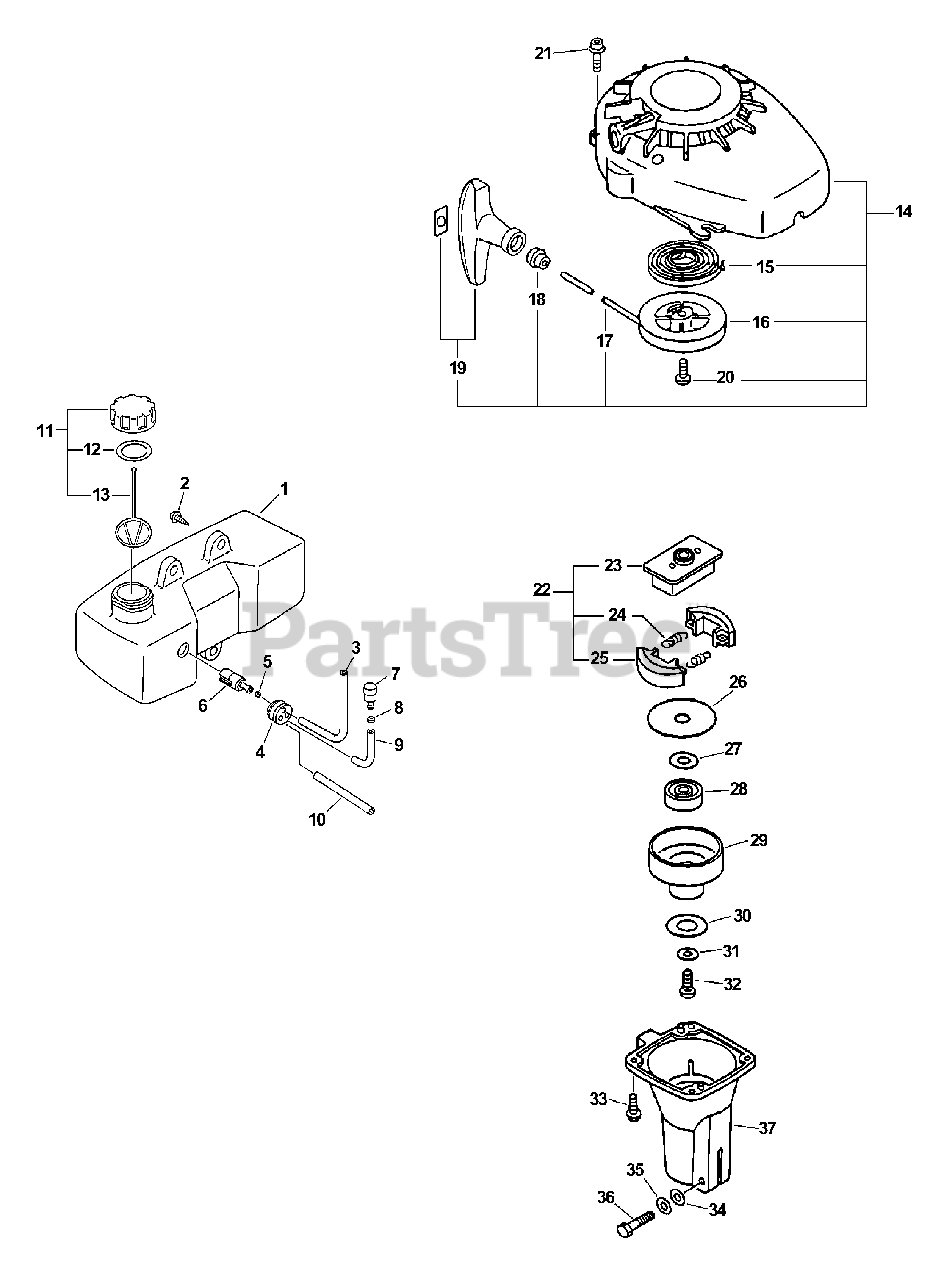

SV-5C - Little Wonder Engine (SN: 05001001 - 05999999) Starter, Clutch, Fuel System Parts Diagram

Engine

Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo A350000300

FUEL TANK ASSY

$22.99

$

In Stock, only 2 left!

0

2

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 12

0

3

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 11

0

4

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

5

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

8

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo 13201049030

PIPE - 3X6X50 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 8

0

11

Echo 13100409060

CAP ASSY
(Superseded to P100006610)

Note: Includes ITEMS 12-13

$8.99

$

Usually ships in 2-4 days

0

12

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

13

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

14

Echo 17720012820

STARTER ASSY
(Superseded to A051000950)

Note: Includes ITEMS 15-20

$103.99

$

In Stock, only 1 left!

0

15

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 10

0

16

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

17

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

18

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

19

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

20

Echo 17723644330

SCREW

$3.49

$

In Stock, only 2 left!

0

21

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

22

Echo 17500007531

CLUTCH ASSY

Note: INCLUDES ITEMS 23-25

$58.99

$

Usually ships in 2-4 days

0

23

Echo 17501605020

HUB, CLUTCH

$10.99

$

Usually ships in 2-4 days

0

24

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

25

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

26

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

27

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

28

Echo 90080836000

BEARING, BALL - 6000

$15.99

$

Usually ships in 2-4 days

0

29

Echo 17501004633

DRUM, CLUTCH
(Superseded to 17501004634)

$30.99

$

Usually ships in 2-4 days

0

30

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

31

Echo 17501411520

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

32

Echo 90023806012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

34

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

36

Echo 13041611520

BOLT - 5X25
(Superseded to Discontinued)

$

$

Not available

37

Echo 61022311520

CASE, CLUTCH

Note: MODEL SV-5C

$61.99

$

Usually ships in 2-4 days

0

37

Echo A570000050

CASE, CLUTCH

Note: MODEL SV-5H2

$61.99

$

Usually ships in 2-4 days

0

Echo 90014

RePower BULK PIPE - 25 FEET

Note: OPTIONAL

$42.99

$

In Stock, Qty 20+

0

Echo 90017

RePower BULK PIPE - 25 FEET

Note: CLEAR

$58.99

$

In Stock, Qty 9

0

Echo 99944444000

RePower BULK ROPE - 200 FEET

Note: OPTIONAL

$

$

Currently unavailable
