SV-5C/2 - Little Wonder Engine (SN: E14114200001 - E14114999999) Fuel System Parts Diagram

Engine

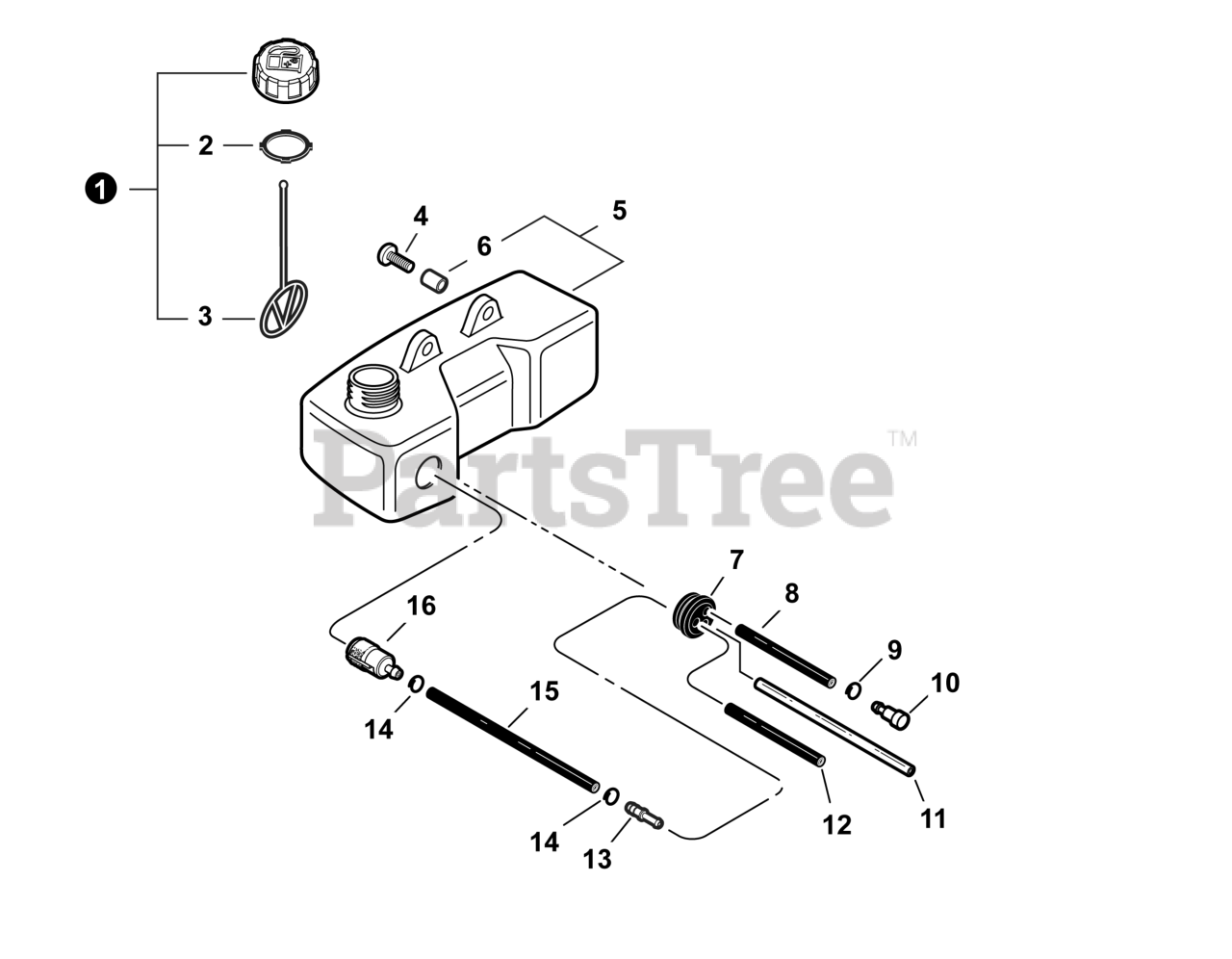

Fuel System Parts Diagram

  • Title

1

Echo P021034480

CAP ASSY

Note: Includes Items 2-3

$6.49

$

Usually ships in 2-4 days

0

2

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

4

Echo 90027505015

SCREW 5x15

$0.99

$

In Stock, Qty 12

0

5

Echo A350001630

TANK ASSY, FUEL

Note: Includes Item 6

$

$

Not available

6

Echo 13104528230

SPACER 6.2x7.8x6

$1.49

$

In Stock, Qty 20+

0

7

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 19

0

8

Echo V471-001200

PIPE, FUEL

$

$

Currently unavailable

9

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

11

Echo 13201049030

PIPE, FUEL 3x6x50 YELLOW

$1.99

$

In Stock, Qty 7

0

12

Echo V471003720

PIPE, FUEL 3x5x70 BLACK
(Superseded to V471005610)

$3.49

$

In Stock, Qty 10

0

13

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

14

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

15

Echo V471003731

PIPE, FUEL 3x5x140 BLACK

$1.49

$

In Stock, only 3 left!

0

16

Echo A369000480

FILTER, FUEL

Note: Included in Tune-up Kit

$5.49

$

In Stock, Qty 20+

0
