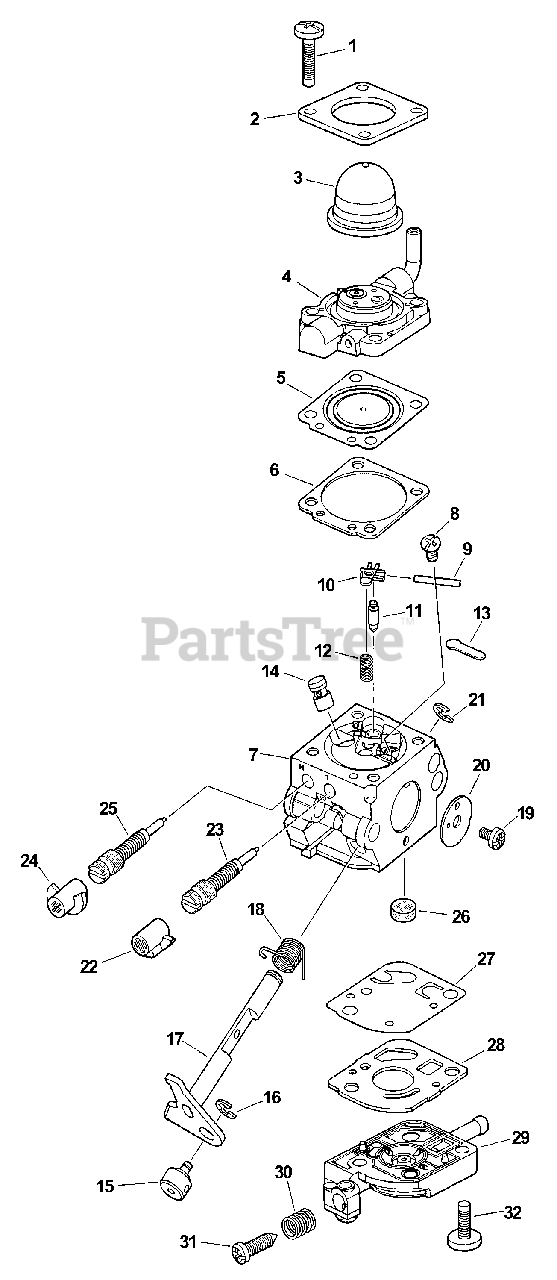

SV-4B - Little Wonder Engine (Type 1E) Carburetor S/N: 377321_Up Parts Diagram

Engine (Type 1E)

Carburetor S/N: 377321_Up Parts Diagram

  • Title

Echo 12520013124

CARBURETOR C1U-K54A
(Superseded to 12520013125)

Note: Includes ITEMS 1-32

$92.99

$

In Stock, Qty 7

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo P005000620

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 17

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo P005000970

BASE, PURGE

$20.99

$

In Stock, only 1 left!

0

5

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

6

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

7

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

8

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

9

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530013120

$

$

Not available

10

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530013120

$

$

Not available

11

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530013120

$

$

Not available

12

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530013120

$

$

Not available

13

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530013120

$

$

Not available

14

Echo 12537613120

NOZZLE, CHECK VALVE

$6.49

$

Usually ships in 2-4 days

0

15

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

16

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

17

Echo 12531713310

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

18

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

19

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

20

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

21

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

22

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

23

Echo 12531813120

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

24

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

25

Echo 12532013310

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

26

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530013120

$

$

Not available

27

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

28

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530013120 & GASKET/DIAPHRAGM KIT P/N 12530313120

$

$

Not available

29

Echo 12532412820

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

30

Echo 12533306960

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 10

0

31

Echo 12533406960

SCREW, IDLE ADJUST

$4.99

$

Usually ships in 2-4 days

0

32

Echo 12531012820

SCREW, PUMP COVER

$1.49

$

Usually ships in 2-4 days

0

Echo 12530013120

REPAIR KIT

$17.99

$

In Stock, only 2 left!

0

Echo 12530313120

DIAPHRAGM/GASKET KIT

$8.99

$

In Stock, only 2 left!

0
