SV-4B - Little Wonder Engine (Type 1E) Carburetor S/N: 001001-102760 Parts Diagram

Engine (Type 1E)

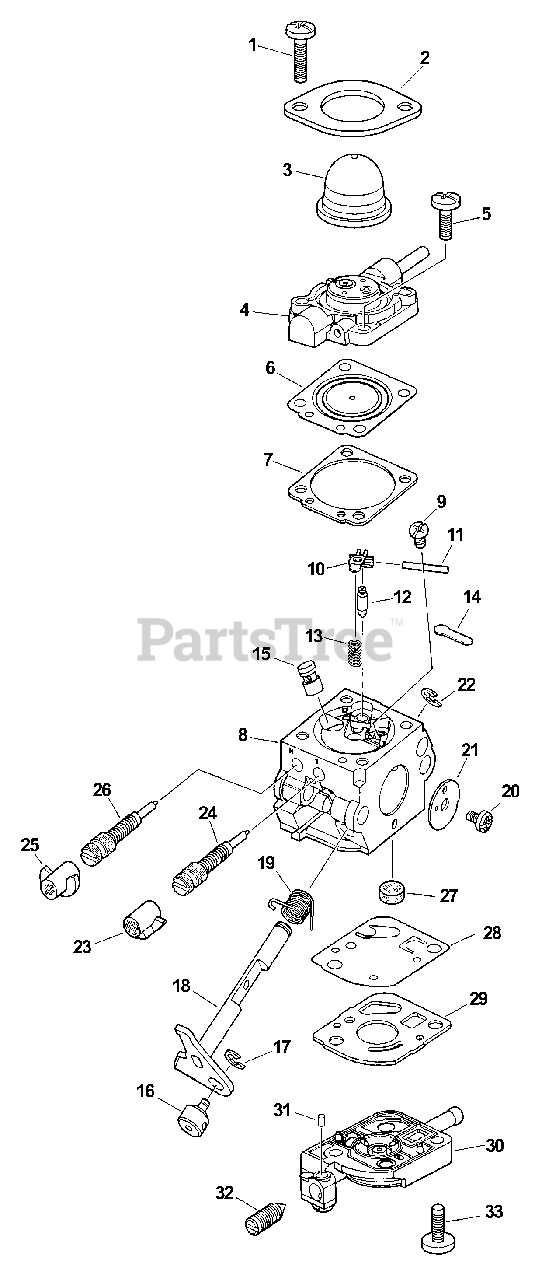

Carburetor S/N: 001001-102760 Parts Diagram

  • Title

Echo 12520013120

CARBURETOR C1U-K54
(Superseded to 12520013121)

Note: Includes ITEMS 1-33

$92.99

$

In Stock, Qty 7

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308560

RETAINER, PURGE BULB

$1.99

$

In Stock, only 1 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12538305360

BASE, PURGE

$21.99

$

Usually ships in 2-4 days

0

5

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

6

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

7

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

8

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

9

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

10

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

11

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

12

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

13

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

14

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

15

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

17

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

18

Echo 12531713310

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

19

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

20

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

21

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

23

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

24

Echo 12531813120

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

25

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

26

Echo 12532013310

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

27

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530012820

$

$

Not available

28

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530012820 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

29

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530012820 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

30

Echo 12532412820

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

31

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

32

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

33

Echo 12531012820

SCREW, PUMP COVER

$1.49

$

Usually ships in 2-4 days

0

Echo 12530012820

REPAIR KIT

$15.99

$

In Stock, Qty 7

0

Echo 12530320560

DIAPHRAGM/GASKET KIT

$8.99

$

In Stock, only 4 left!

0
