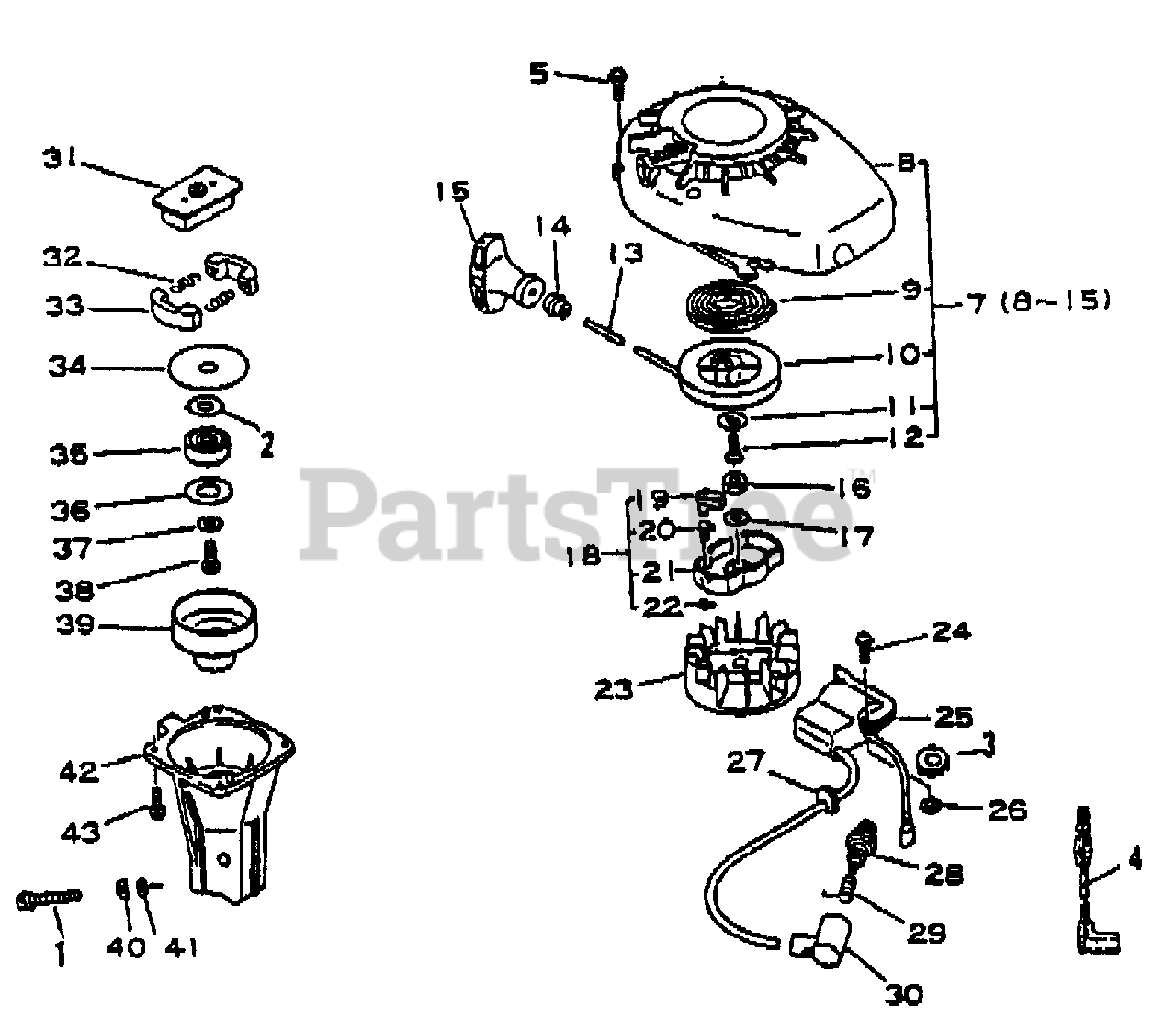

SV-4A - Little Wonder Engine Clutch, Ignition, Starter Parts Diagram

Engine

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 90011505025

BOLT - 5X25
(Superseded to 13041611520)

$

$

Not available

2

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

3

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

4

Echo 15063011520

LEAD
(Superseded to Discontinued)

$

$

Not available

5

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

7

Echo 17720011820

STARTER ASSY
(Superseded to 17720011822)

Note: Includes Items 8-15

$103.99

$

In Stock, only 1 left!

0

8

Echo 10151111521

CASE, STARTER
(Superseded to 10151111522)

$38.99

$

Usually ships in 2-4 days

0

9

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 14

0

10

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 17

0

11

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

12

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

13

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

14

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 15

0

15

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

16

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

17

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

18

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: Includes Items 19-22

$16.99

$

In Stock, Qty 19

0

19

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

20

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 11

0

21

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 19

0

22

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

23

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

$113.99

$

Usually ships in 2-4 days

0

24

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

25

Echo 15062611521

COIL, IGNITION
(Superseded to 15662611820)

$

$

Not available

26

Echo 15011709130

SPACER

$1.49

$

In Stock, only 1 left!

0

27

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 8

0

28

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

$

$

Not available

29

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

30

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

31

Echo 17501605020

HUB, CLUTCH

$10.99

$

Usually ships in 2-4 days

0

32

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

33

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

34

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

35

Echo 90080836000

BEARING, BALL - 6000

$15.99

$

Usually ships in 2-4 days

0

36

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

37

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

38

Echo 90023806012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

39

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$30.99

$

Usually ships in 2-4 days

0

40

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

41

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

42

Echo 61022311520

CASE, CLUTCH

$61.99

$

Usually ships in 2-4 days

0

43

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0
