SV-4 - Little Wonder Engine Fuel System Parts Diagram

Engine

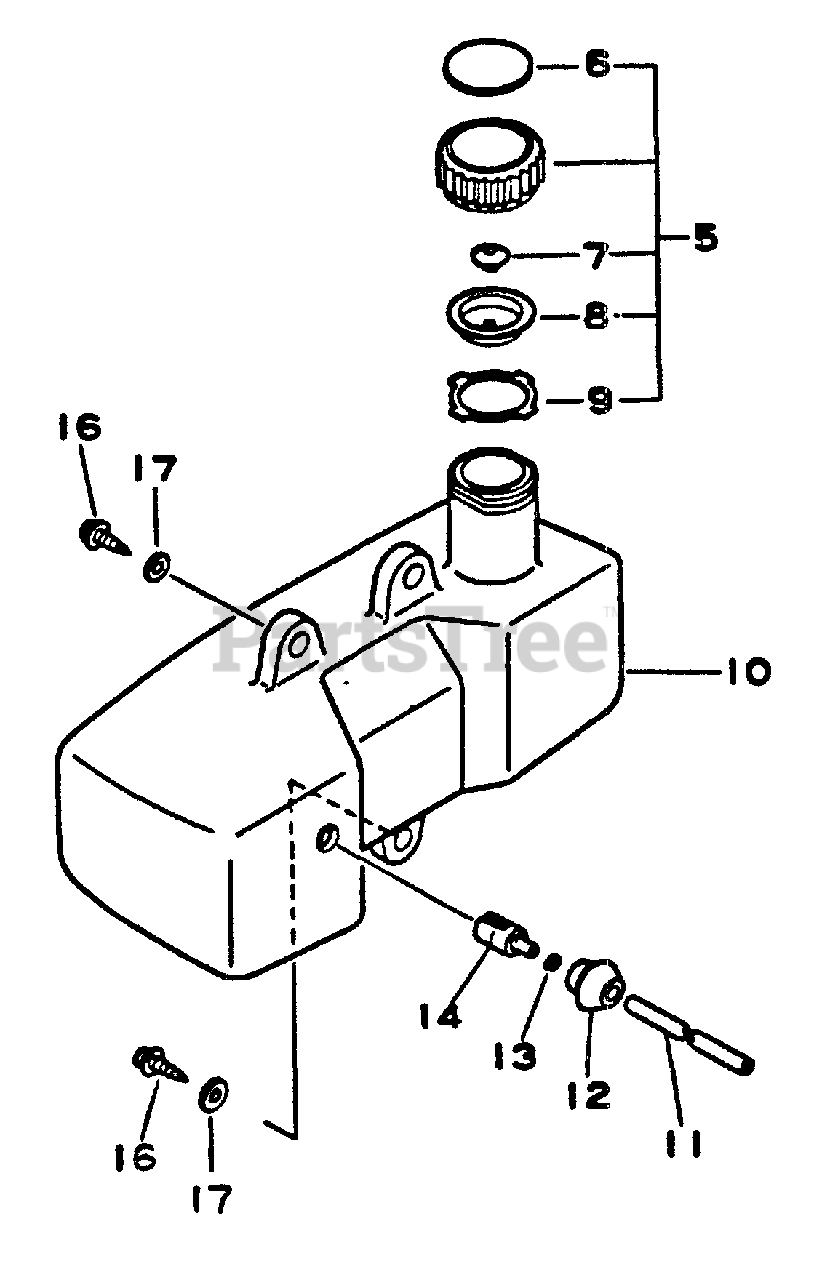

Fuel System Parts Diagram

  • Title

5

Echo 13160004520

CAP ASSY
(Superseded to 13160004521)

$

$

Not available

6

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

7

Echo 13131400330

VENT

$11.99

$

Usually ships in 2-4 days

0

8

Echo 13101504520

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

9

Echo 13101604930

GASKET, CAP
(Superseded to 13101604931)

$

$

Not available

10

Echo 13100511520

TANK, FUEL
(Superseded to 13100511521)

$23.99

$

Usually ships in 2-4 days

0

11

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, only 4 left!

0

12

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

13

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

14

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

16

Echo 90025005014

SCREW - 5X14
(Superseded to Discontinued)

$

$

Not available

17

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 16381011520

BRACKET, SWITCH

Note: FOR HEDGE TRIMMER

$2.49

$

Usually ships in 2-4 days

0

19

Echo 16340002160

IGNITION SWITCH KIT

$8.49

$

In Stock, only 3 left!

0
