SV-2A - Little Wonder Engine Engine, Crankcase, Stop Switch, Ignition, Starter Parts Diagram

Engine

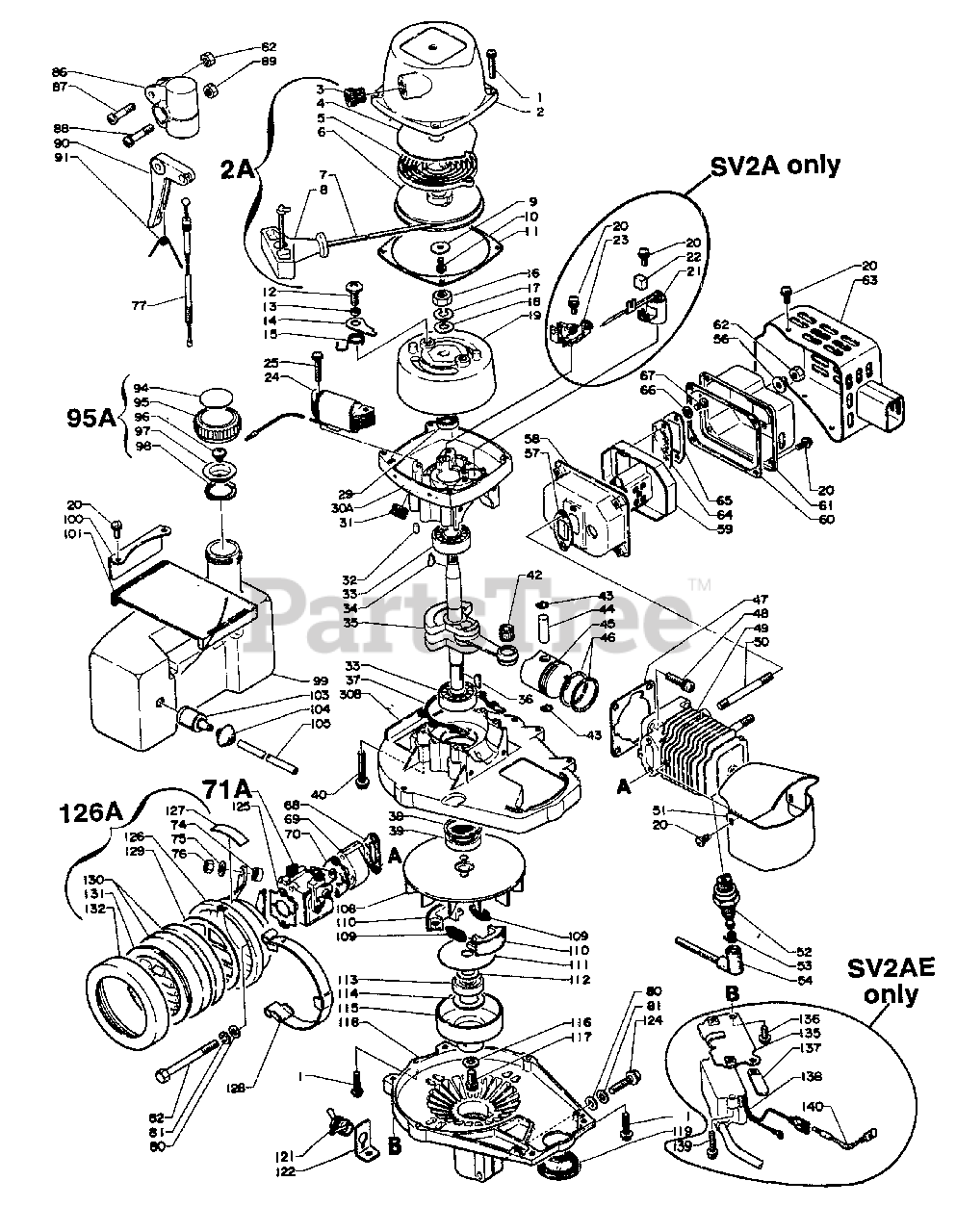

Engine, Crankcase, Stop Switch, Ignition, Starter Parts Diagram

  • Title

1

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

2A

Echo 17720005920

STARTER ASSY
(Superseded to 17720005921)

Note: Consisting of items 2 thru 8

$

$

Not available

2

Echo 17720905920

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

4

Echo 17722105020

PLATE, STARTER

$2.49

$

Usually ships in 2-4 days

0

5

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

6

Echo 17720605020

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 7

0

8

Echo 17722811130

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

10

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 10

0

11

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

13

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

14

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 17723404632

SPRING, RETURN

$1.49

$

In Stock, Qty 8

0

16

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

17

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

18

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

19

Echo 15620004631

FLYWHEEL
(Superseded to Discontinued)

Note: SV-2A Only

$

$

Not available

19

Echo 15680006331

FLYWHEEL
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available

20

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

21

Echo 15612704521

CONDENSER
(Superseded to Discontinued)

Note: SV-2A Only

$

$

Not available

22

Echo 15613404630

PAD, OIL

Note: SV-2A Only

$2.49

$

Usually ships in 2-4 days

0

23

Echo 15610104630

CONTACT POINT SET
(Superseded to Discontinued)

Note: SV-2A Only

$

$

Not available

24

Echo 15612604630

COIL, IGNITION
(Superseded to Discontinued)

Note: SV-2A Only

$

$

Not available

24

Echo 15662709820

COIL, EXCITER
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available

25

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

29

Echo 10021204630

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

30A

Echo 10020005020

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes item 30B

$

$

Not available

30B

------------------

CRANKCASE SET

$

$

Not available

31

Echo 15111204630

GROMMET

Note: SV-2A Only

$0.99

$

In Stock, Qty 6

0

31

Echo 15611406330

BUSHING
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available

32

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

33

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

34

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

35

Echo 10010005331

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

36

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

37

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

38

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

39

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

40

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

42

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

43

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

44

Echo 10001310210

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

45

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

46

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

47

Echo 10101004630

GASKET, CYLINDER
(Superseded to 10101004631)

$

$

Not available

48

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

49

Echo 10101105020

CYLINDER
(Superseded to Discontinued)

$

$

Not available

50

Echo 10101405330

STUD
(Superseded to 10101422330)

$1.99

$

Usually ships in 2-4 days

0

51

Echo 10151405920

COVER, CYLINDER - BLACK

$7.49

$

Usually ships in 2-4 days

0

52

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

53

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 18

0

54

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

56

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

57

Echo 14551005020

GASKET, EXHAUST
(Superseded to 14551005021)

$

$

Not available

58

Echo 14580605120

CASE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

59

Echo 14580705120

SILENCER

$6.49

$

Usually ships in 2-4 days

0

60

Echo 14586605120

GASKET, EXHAUST
(Superseded to 14586605121)

$

$

Not available

61

Echo 14586105920

LID, MUFFLER

$3.99

$

Usually ships in 2-4 days

0

62

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

63

Echo 14562105921

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

64

Echo 14586205120

SCREEN, SPARK ARRESTOR

$2.99

$

Usually ships in 2-4 days

0

65

Echo 14586305120

RETAINER, SCREEN

$2.49

$

Usually ships in 2-4 days

0

66

Echo 90061000004

LOCKWASHER - 4

$0.99

$

Usually ships in 2-4 days

0

67

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

68

Echo 13001005020

GASKET, INTAKE
(Superseded to 13001005021)

$

$

Not available

69

Echo 13001705020

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

70

Echo 13001606430

GASKET, INTAKE
(Superseded to 13001606431)

$0.99

$

In Stock, Qty 20+

0

71A

Echo 12300008430

CARBURETOR WA-59

Note: See "Carb" illustration and parts list.

$112.99

$

In Stock, only 1 left!

0

74

Echo 17802107330

LOCKNUT

$2.99

$

Usually ships in 2-4 days

0

75

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

76

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

77

Echo 17800104520

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

80

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

81

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

82

Echo 13002105020

BOLT

$

$

Not available

86

Echo 17802406130

BRACKET, TRIGGER

$5.49

$

Usually ships in 2-4 days

0

87

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

88

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

89

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

90

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

91

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 7

0

94

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

95A

Echo 13100404520

CAP ASSY
(Superseded to 13160004520)

Note: Consisting of 94 thru 98

$

$

Not available

95

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

96

Echo 13131400330

VENT

$11.99

$

In Stock, only 1 left!

0

97

Echo 13101504520

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

98

Echo 13101604930

GASKET, CAP
(Superseded to 13101604931)

$

$

Not available

99

Echo 13101005920

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

100

Echo 13191005020

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

101

Echo 13192405921

CUSHION
(Superseded to Discontinued)

$

$

Not available

103

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

104

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

105

Echo 13200705920

PIPE ASSY

$5.99

$

In Stock, only 2 left!

0

108

Echo 10150005020

FAN
(Superseded to Discontinued)

$

$

Not available

109

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

110

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$21.99

$

In Stock, only 2 left!

0

111

Echo 17501904630

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

112

Echo 17501505020

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

113

Echo 90080836000

BEARING, BALL - 6000

$15.99

$

Usually ships in 2-4 days

0

114

Echo 17504404630

WASHER, CLUTCH

$1.49

$

Usually ships in 2-4 days

0

115

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$30.99

$

Usually ships in 2-4 days

0

116

Echo 17501404630

WASHER - 6

$1.99

$

In Stock, Qty 20+

0

117

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 4 left!

0

118

Echo 10151105920

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

119

Echo 15901504630

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

120

Echo 17812104520

CLIP
(Superseded to Discontinued)

$

$

Not available

121

Echo 16340002160

IGNITION SWITCH KIT

$8.49

$

In Stock, only 4 left!

0

122

Echo 16381005920

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

124

Echo 90011505025

BOLT - 5X25
(Superseded to 13041611520)

$

$

Not available

125

Echo 13001606230

GASKET, INTAKE
(Superseded to 13001606231)

$0.99

$

In Stock, Qty 12

0

126

Echo 13030705922

CASE, AIR FILTER
(Superseded to 13030705923)

$

$

Not available

126A

Echo 13030000761

AIR CLEANER ASSY
(Superseded to 13030000763)

Note: Includes ITEMS 125-32

$50.99

$

Usually ships in 2-4 days

0

127

Echo 89015800760

LABEL - CHOKE
(Superseded to X506000010)

$1.49

$

In Stock, only 3 left!

0

128

Echo 13042500761

CLAMP

$10.99

$

In Stock, only 1 left!

0

129

Echo 13031900760

RETAINER, AIR FILTER

$2.49

$

In Stock, only 1 left!

0

130

Echo 13031000760

FILTER, AIR

$3.99

$

In Stock, Qty 20+

0

131

Echo 13031304620

COVER, AIR FILTER

$3.49

$

In Stock, only 1 left!

0

132

Echo 13034104620

COVER, AIR FILTER

$6.49

$

In Stock, only 1 left!

0

135

Echo 15931009820

BRACKET, IGNITION COIL
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available

136

Echo 90024205010

SCREW - 5X10

Note: SV-2AE Only

$0.99

$

In Stock, Qty 20+

0

137

Echo 15911323630

CLIP
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available

138

Echo 15660109820

COIL, IGNITION
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available

139

Echo 90024204016

SCREW - 4X16

Note: SV-2AE Only

$0.99

$

In Stock, Qty 20+

0

140

Echo 16202109820

LEAD - GROUND
(Superseded to Discontinued)

Note: SV-2AE Only

$

$

Not available
