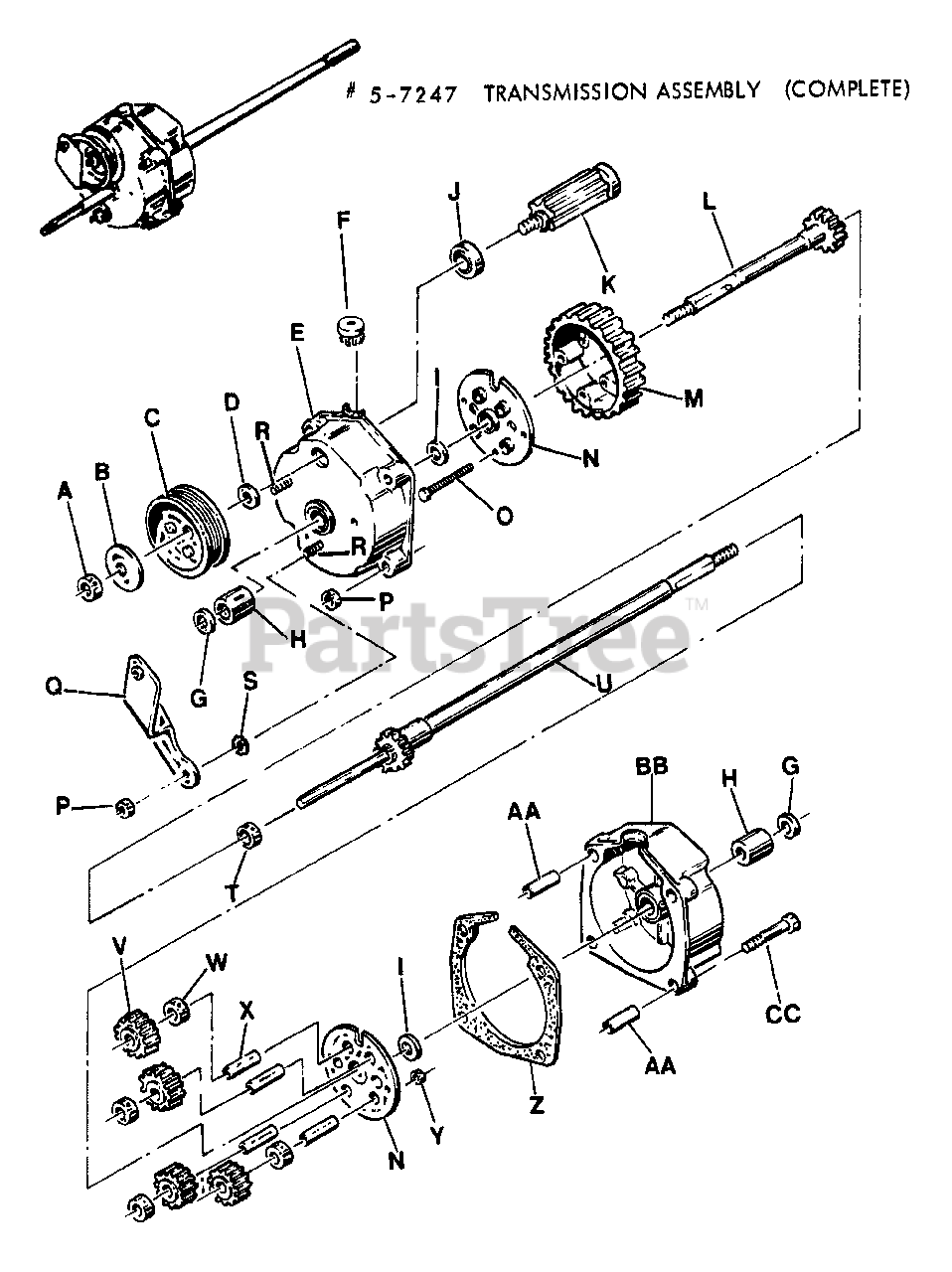

SV 212P (87054) - Snapper 21" Walk-Behind Mower, 3.5hp Transmission (Differential) Parts Diagram

21" Walk-Behind Mower, 3.5hp

Transmission (Differential) Parts Diagram

  • Title

A

Snapper 7092062

NUT, 5/16-24 Hex Lock, Grade C
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

B

Snapper 7011132

WASHER, Spring
(Superseded to 7011132YP)

$4.49

$

In Stock, only 1 left!

0

C

Snapper 7019213

PULLEY, Poly V-Belt
(Superseded to 7019213YP)

Note: Was 12109

$35.99

$

In Stock, only 1 left!

0

D

Snapper 7011724

WASHER, Spring
(Superseded to 703940)

$4.49

$

In Stock, Qty 6

0

E

Snapper 7051908

HOUSING ASSEMBLY, Right
(Superseded to 7051908YP)

Note: Was 57246 (Includes G, H, J & R)

$

$

Not available

F

Snapper 7016544

PLUG, Housing
(Superseded to 703931)

Note: Was 11133

$3.99

$

In Stock, Qty 10

0

G

Snapper 7012314

SEAL
(Superseded to 7012314YP)

$4.49

$

In Stock, only 3 left!

0

H

Snapper 7012507

BEARING, Tapered O.D.
(Superseded to 7012507YP)

$4.49

$

In Stock, only 2 left!

0

I

Snapper 7031965

WASHER, Thrust
(Superseded to 7031965YP)

$4.49

$

In Stock, only 2 left!

0

J

Snapper 7073963

BEARING, Ball
(Superseded to 7073963YP)

Note: Was 11767

$13.99

$

Usually ships in 2-12 days

0

K

Snapper 7050767

ASSEMBLY, Gear Input
(Superseded to 7050767YP)

Note: (Includes item J)

$36.99

$

Usually ships in 2-12 days

0

L

Snapper 7050830

ASSEMBLY, Short Axle
(Superseded to 7050830YP)

$57.99

$

In Stock, only 1 left!

0

M

Snapper 7012495

GEAR, 46 Tooth Differential
(Superseded to 7012495YP)

$17.99

$

In Stock, only 1 left!

0

N

Snapper 7031970

PLATE
(Superseded to 7031970YP)

$16.99

$

Usually ships in 2-12 days

0

O

Snapper 7090557

SCREW, #10-32 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703938)

$3.99

$

Usually ships in 2-12 days

0

P

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

Q

Snapper 7040474

BRACKET, Differential
(Superseded to 7040474YP)

Note: Was 40447

$31.99

$

Usually ships in 2-12 days

0

R

Snapper 7014858

BOLT, 1 /4-28 x 1" Ribbed
(Superseded to 7014858YP)

Note: Was 12499

$12.99

$

Usually ships in 2-12 days

0

S

Snapper 7090574

WASHER, 1/4" Internal/External Tooth Lock

$

$

Not available

T

Snapper 7012543

SPACER, Axle Gear
(Superseded to 703934)

$4.49

$

In Stock, only 2 left!

0

U

Snapper 7050831

ASSEMBLY, Long Axle
(Superseded to 7050831YP)

$95.99

$

In Stock, only 1 left!

0

V

Snapper 7021115

GEAR, 12 Tooth Pinion
(Superseded to 7021115YP)

$4.49

$

In Stock, Qty 12

0

W

Snapper 7012500

SPACER, Pinion Gear
(Superseded to 703933)

$4.49

$

Usually ships in 2-12 days

0

X

Snapper 7011110

SHAFT, Pinion
(Superseded to 7011110YP)

$4.49

$

In Stock, only 2 left!

0

Y

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

Z

Snapper 7011774

GASKET, Housing
(Superseded to 7011774YP)

$11.99

$

In Stock, Qty 10

0

AA

Snapper 7012512

PIN, 3/8 x 7/16" Roll

$

$

Not available

BB

Snapper 7053939

HOUSING ASSEMBLY, Left
(Superseded to 7053939YP)

Note: Was 57245 (Includes G & H)

$50.99

$

Usually ships in 2-12 days

0

CC

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

57247

Snapper 7059070

TRANSMISSION ASSEMBLY (COMPLETE)
(Superseded to 7053943YP)

Note: Was 57247

$302.99

$

Usually ships in 2-12 days

0

Snapper 7060337

KIT, 46T Gear Repair

Note: NOT SHOWN-REPAIR KIT

$

$

Not available
