SV 212 - Shindaiwa Shredder / Vacuum (SN: P02611001001 - P02611999999) Intake Parts Diagram

Shredder / Vacuum

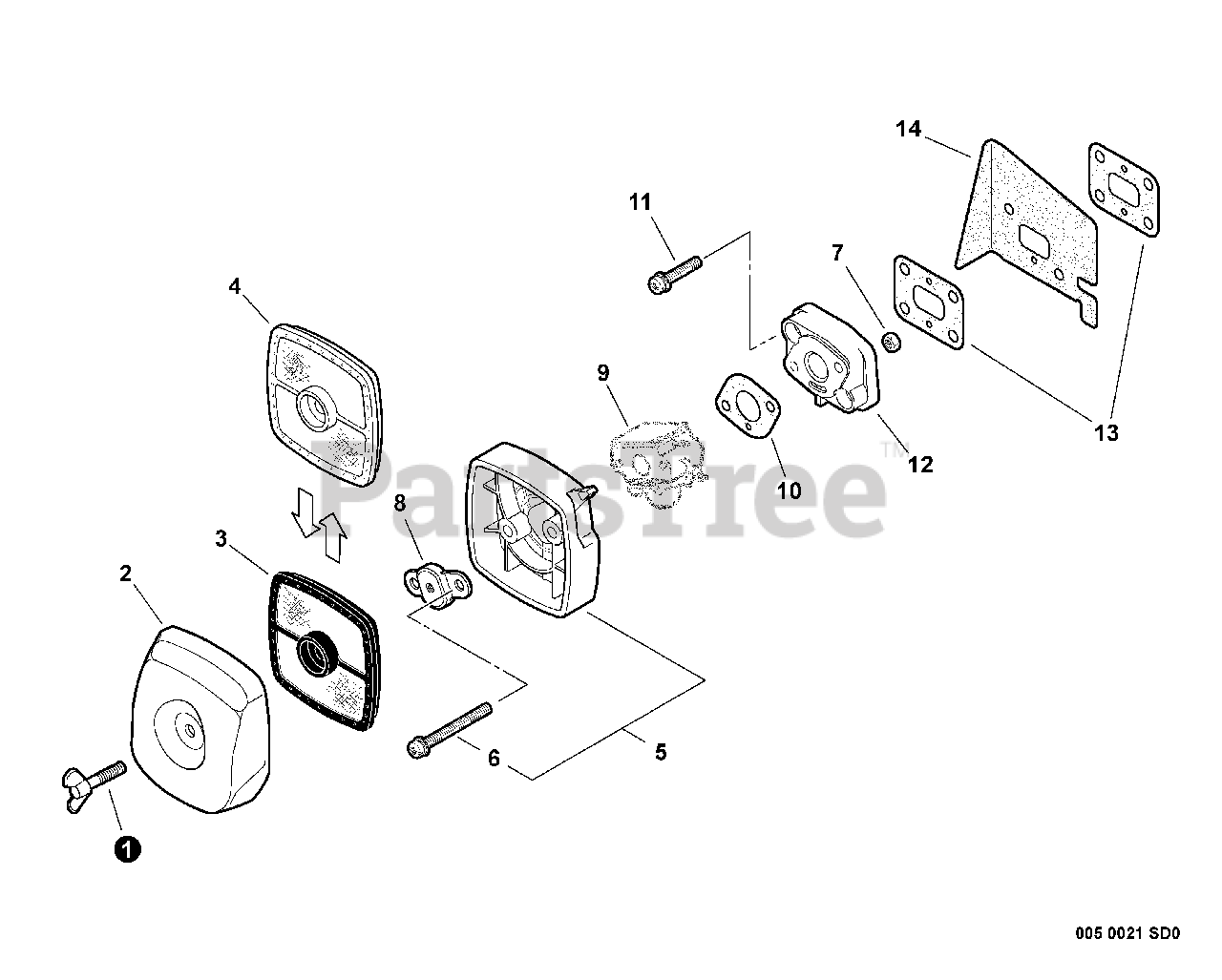

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$7.49

$

In Stock, Qty 20+

0

5

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

$19.99

$

In Stock, only 4 left!

0

6

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

9

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

10

Echo 13001020560

GASKET, INTAKE

$2.49

$

In Stock, Qty 20+

0

11

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 13

0

12

Echo 13001705062

INSULATOR, INTAKE

$6.49

$

Usually ships in 2-4 days

0

13

Echo 13001009561

GASKET, INTAKE

$2.99

$

In Stock, only 2 left!

0

14

Echo 10151420560

SHIELD, INTAKE

$2.99

$

Usually ships in 2-4 days

0
