SV 212 - Shindaiwa Shredder / Vacuum (SN: P02611001001 - P02611999999) Fan Case, Engine Cover, Throttle Control Parts Diagram

Shredder / Vacuum

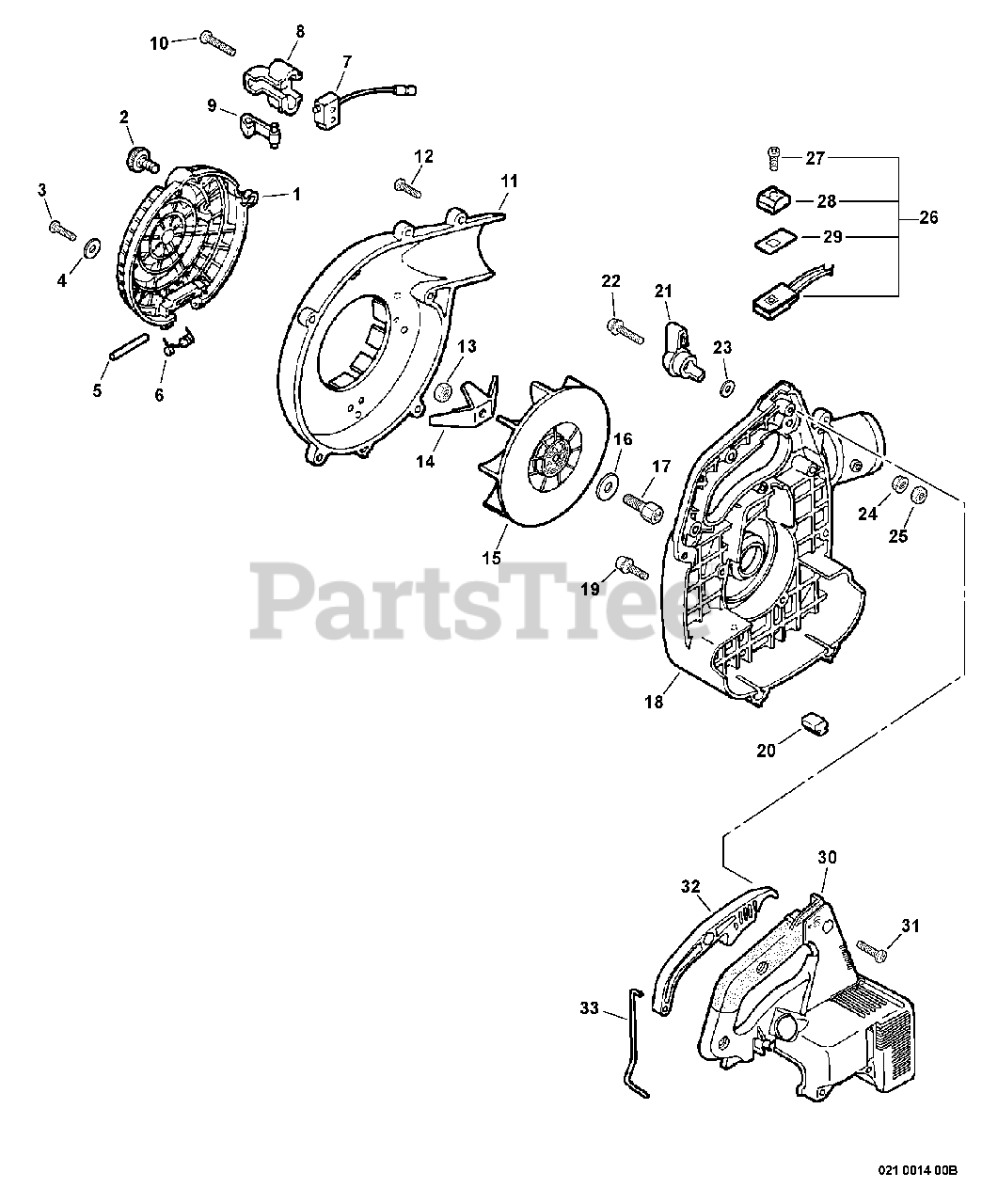

Fan Case, Engine Cover, Throttle Control Parts Diagram

  • Title

1

Echo 20012420661

GUARD, DEBRIS

$20.99

$

In Stock, only 3 left!

0

2

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.49

$

In Stock, Qty 20+

0

3

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

4

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 20015005060

PIN

$2.99

$

In Stock, only 1 left!

0

6

Echo 20015205060

SPRING

$3.49

$

In Stock, only 3 left!

0

7

Echo 16340020660

IGNITION SWITCH ASSY

$10.99

$

Usually ships in 2-4 days

0

8

Echo A439000380

BRACKET, SWITCH
(Superseded to A439000370)

$9.49

$

Usually ships in 2-4 days

0

9

Echo 16333520560

ACTUATOR

$3.99

$

Usually ships in 2-4 days

0

10

Echo 90025604022

SCREW - 4X22

$0.99

$

In Stock, Qty 7

0

11

Echo E103000600

COVER, FAN - LEFT

$15.99

$

Usually ships in 2-4 days

0

12

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

13

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

14

Echo 20018008761

BLADE, SHREDDER

$9.49

$

In Stock, only 4 left!

0

15

Echo 20001006363

FAN

$15.99

$

In Stock, Qty 6

0

16

Echo 10013205660

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

17

Echo 20001105661

HUB, FAN

$15.99

$

Usually ships in 2-4 days

0

18

Echo E103000610

COVER, FAN - RIGHT

$37.99

$

Usually ships in 2-4 days

0

19

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

20

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

21

Echo 17805421760

LEVER, THROTTLE - BLACK

$12.99

$

Usually ships in 2-4 days

0

22

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

23

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

25

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 13

0

26

Echo 16340120561

IGNITION SWITCH ASSY

Note: INCLUDES ITEMS 27-29

$10.99

$

In Stock, only 1 left!

0

27

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 16341012331

KNOB, SWITCH

$3.49

$

Usually ships in 2-4 days

0

29

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

30

Echo A190000760

COVER, ENGINE

$9.49

$

Usually ships in 2-4 days

0

31

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

32

Echo 17801021760

TRIGGER, THROTTLE - BLACK

$7.99

$

Usually ships in 2-4 days

0

33

Echo 17801120561

ROD, THROTTLE

$6.49

$

In Stock, Qty 20+

0
