SUPER XL 925W (UT-10510-C) - Homelite Chainsaw Carburetor Chamber Parts Diagram

Chainsaw

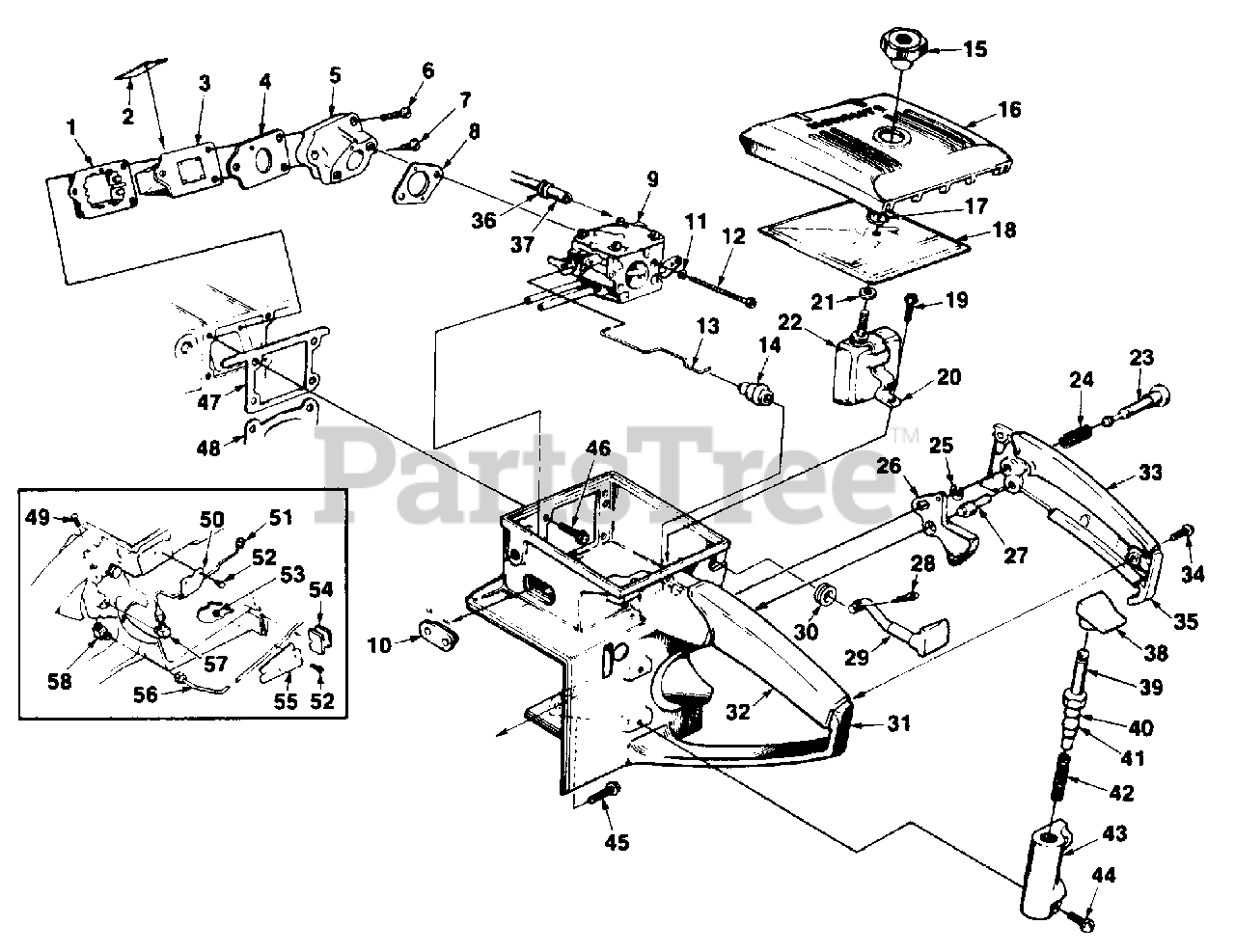

Carburetor Chamber Parts Diagram

  • Title

1

Homelite 63370A

RETAINER- Reed valve

$10.99

$

Usually ships in 3-7 days

0

2

Homelite 63166A

VALVE- Reed

$6.49

$

In Stock, only 2 left!

0

3

Homelite 63371B

SEAT- Reed valve

$

$

Not available

4

Homelite 65483

GASKET- Reed valve seat

$

$

Not available

5

Homelite A674601

MANIFOLD- Intake

$

$

Currently unavailable

6

Homelite 82174

SCREW- Pan hd., 8-32 x 1 1/4
(Superseded to 82570)

$

$

Not available

7

Homelite 82173

SCREW- Pan hd., 8-32 x 1
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 67540

GASKET- Carburetor

$

$

Not available

9

Homelite A69812A

CARBURETOR
(Superseded to A01708)

$

$

Currently unavailable

10

Homelite 69751

GROMMET- Hi-Lo

$

$

Not available

11

Homelite 83046

WASHER- Lock #10

$

$

Not available

12

Homelite 82179

SCREW- Hex hd. 10-32 x 1 7/8

$

$

Not available

13

Homelite 63266A

ROD- Throttle

$

$

Currently unavailable

14

Homelite 58348

BOOT- Throttle rod

$

$

Not available

15

Homelite A67639

NUT- Cover mounting

$

$

Currently unavailable

16

Homelite A694142

COVER- Air filter element

$

$

Currently unavailable

17

Homelite 58319A

RING- Retaining

$

$

Not available

18

Homelite 69880

FILTER ELEMENT- Air

$

$

Not available

19

Homelite 80821

SCREW- Hex hd. 12-24 x 1/2

$2.49

$

Usually ships in 3-7 days

0

20

Homelite A67101A

BRACKET- Air filter

$

$

Not available

21

Homelite 583921

GASKET- Mounting nut

$

$

Not available

22

Homelite 70189

DEFLECTOR- Air

$

$

Not available

23

Homelite 95671

PIN- Throttle latch
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

24

Homelite 58405

SPRING- Throttle latch

$

$

Not available

25

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

26

Homelite 65745

TRIGGER- Throttle

$

$

Not available

27

Homelite 65719

PIN- Throttle latch adjusting

$

$

Not available

28

Homelite 86324

PIN- Cotter

$

$

Not available

29

Homelite A68429

ROD- Choke
(Superseded to 672011)

$

$

Not available

30

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

31

Homelite A68025D

HANDLE- Throttle

$

$

Not available

Homelite 68445

BUSHING (not shown)

$

$

Not available

32

Homelite 68767

GRIP- Throttle handle

$

$

Not available

33

Homelite 68768

GRIP- Throttle handle cover

$

$

Not available

34

Homelite 80560

SCREW- Pan hd. 8-32 x 1/2

$

$

Not available

35

Homelite A69045

COVER- Throttle handle

$

$

Not available

Homelite 59064

BUSHING- Nylon (not shown)

$

$

Not available

36

Homelite 68046

GROMMET- Fuel line

$

$

Not available

37

Homelite 65718B

LINE- Fuel
(Superseded to UP05995)

$

$

Not available

38

Homelite 63622

BUTTON- Oil pump plunger

$

$

Not available

39

Homelite A5783416

PLUNGER- Oil pump

$

$

Currently unavailable

40

Homelite 59074

"O" RING- Shaft

$

$

Not available

41

Homelite 74388

"O" RING- Plunger
(Superseded to UP06601)

$4.99

$

Usually ships in 3-7 days

0

42

Homelite 59293

SPRING- Compression

$

$

Not available

43

Homelite 633435

BODY- Oil pump

$

$

Not available

44

Homelite 80568

SCREW- Hex hd. 3-32 x 7/8

$

$

Not available

45

Homelite 80891

SCREW- Hex hd. 12-24 x 7/8

$

$

Not available

46

Homelite 80676

SCREW- Hex hd. 12-24 x 5/8

$

$

Not available

47

Homelite 63779C

GASKET- Throttle handle

$

$

Not available

48

Homelite 637781

GASKET- Cylinder (Fig 2)

$

$

Not available

49

Homelite 800232

SCREW- Fil. hd. 8-32 x 5/8

$

$

Not available

50

Homelite 656601

CLAMP- Oil line

$

$

Currently unavailable

51

Homelite A65705

LINE- Oil (intake)

$

$

Not available

52

Homelite 80571

SCREW- Pan hd. 6-32 x 3/8

$

$

Not available

53

Homelite 81126

NUT- Lock 6-32

$

$

Not available

54

Homelite 65357

GROMMET- Oil line

$

$

Not available

55

Homelite 655131

CLAMP- Oil line

$

$

Not available

56

Homelite A65682

LINE- Oil (discharge)

$

$

Not available

57

Homelite A65502

VALVE- Check

$

$

Not available

Homelite 25527

BALL- (not shown)

$

$

Not available

58

Homelite A65515

VALVE- Check

$

$

Currently unavailable

Homelite 25527

BALL- (not shown)

$

$

Not available

Homelite 59022

SPRING- (not shown)

$

$

Not available
