SUPER XL 925 (UT-10415) - Homelite Chainsaw Engine Internals Parts Diagram

Chainsaw

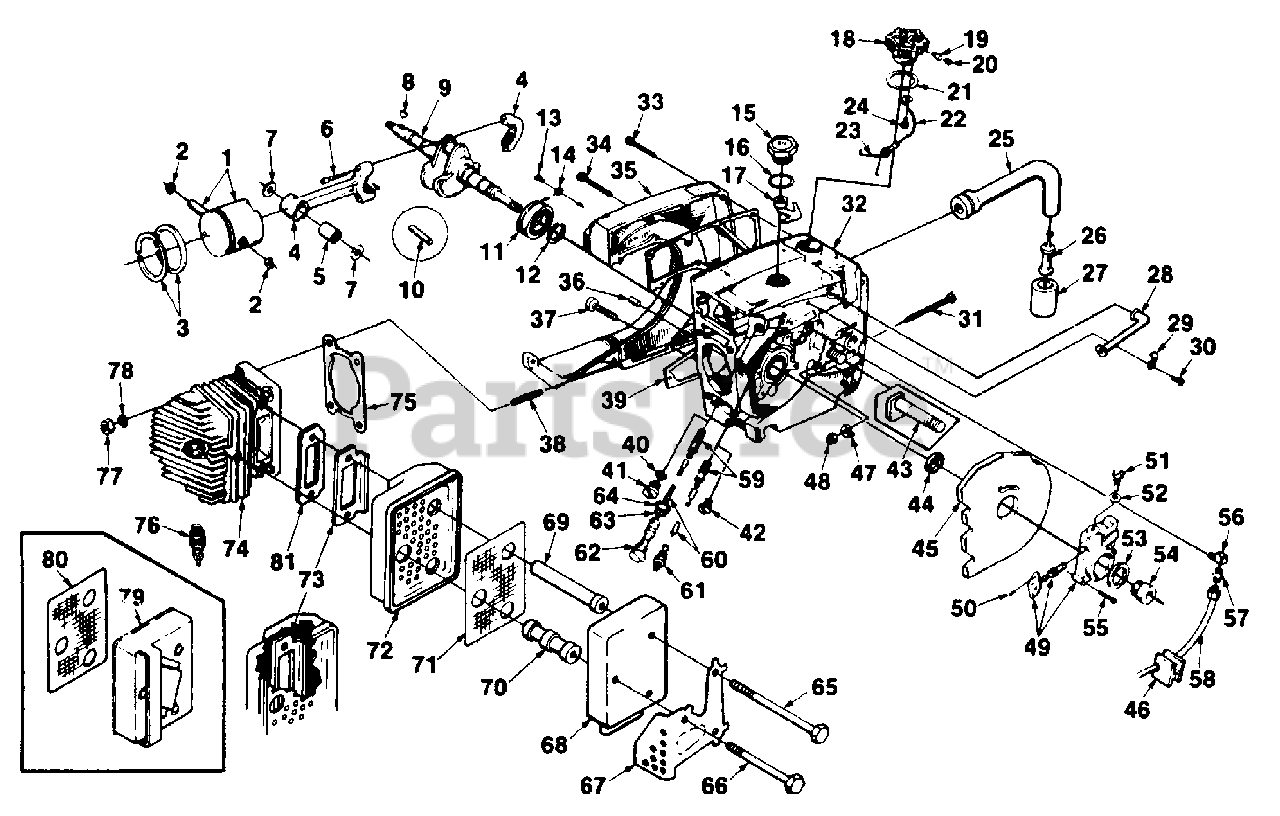

Engine Internals Parts Diagram

  • Title

1

Homelite A69467

PISTON & PIN

$

$

Not available

2

Homelite 64742

RING- Piston pin retaining

$

$

Not available

3

Homelite 69452

PISTON RING

$

$

Not available

4

Homelite A69658A

ROD- Connecting

$

$

Currently unavailable

5

Homelite 69638

BEARING- Needle
(Superseded to 69638A)

$

$

Not available

6

Homelite 69919

SCREW- Soc hd. 8-32 x 9/16

$

$

Not available

7

Homelite 68010

WASHER- Thrust

$

$

Not available

8

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

9

Homelite 671683

CRANKSHAFT

$

$

Not available

10

Homelite A69056

BEARING- Needle (set of 28)

$

$

Currently unavailable

11

Homelite 58190S

BEARING- Ball
(Superseded to 58190)

$

$

Not available

12

Homelite 58319A

RING- Retaining

$

$

Not available

13

Homelite 70306

SCREW- Bearing retaining

$

$

Not available

14

Homelite 59705

WASHER- Lock

$

$

Not available

15

Homelite A65284B

CAP- Oil filler

$

$

Currently unavailable

16

Homelite 69834

GASKET- Oil cap

$

$

Not available

Homelite 69451

VALVE- Check duck bill (not shown)

$

$

Not available

17

Homelite 68750

RETAINER

$

$

Not available

18

Homelite A69500A

CAP- Fuel filler
(Superseded to UP06559)

$

$

Not available

19

Homelite 69451

VALVE- Check (oval duckbill)

$

$

Not available

20

Homelite 69454

FILTER- Filler cap

$

$

Not available

21

Homelite 69501

GASKET- Fuel cap

$

$

Not available

22

Homelite 69502

CHAIN- Bead

$

$

Not available

23

Homelite 69503

RETAINER
(Superseded to 96535)

$

$

Not available

24

Homelite 82256

SCREW- Pan hd., plastite 6 x 1/4
(Superseded to 82256A)

$

$

Not available

25

Homelite 65593A

LINE- Fuel
(Superseded to UP06819)

$

$

Not available

26

Homelite A69923

FILTER- Fuel
(Superseded to UP06560)

$

$

Not available

27

Homelite 64083

FILTER- Felt

$

$

Not available

28

Homelite 67080

CONNECTOR- Fuel line

$

$

Not available

29

Homelite 655971

CLAMP- Fuel line

$

$

Currently unavailable

30

Homelite 80605

SCREW- Pan hd. 6-32 x 5/16

$

$

Not available

31

Homelite 63367

SCREW- Guide bar adjusting

$

$

Not available

32

Homelite A68023B

CRANKCASE

$

$

Not available

Homelite 65144

GASKET- Check valve (not shown)

$

$

Currently unavailable

Homelite 65143

CAP- Check valve (not shown)

$

$

Not available

33

Homelite 82358

SCREW- Fil. hd., 8-32 x 5/8

$

$

Not available

34

Homelite 95725

SCREW- Fil. hd., 8-32 x 2 3/16

$

$

Not available

35

Homelite 671532

COVER- Fuel tank

$

$

Currently unavailable

36

Homelite 63621

PIN- Dowel

$

$

Currently unavailable

37

Homelite 82147

SCREW- Fil. hd. 8-32 x 1 3/4

$

$

Not available

38

Homelite 55871

STUD
(Superseded to 96127A)

$10.99

$

Usually ships in 3-7 days

0

39

Homelite 67159

GASKET- Fuel tank

$

$

Not available

40

Homelite 58138

WASHER

$

$

Not available

41

Homelite 63115

CAP- Oil pump

$

$

Not available

42

Homelite 28097

PLUG- Pipe

$

$

Not available

43

Homelite 67158

BOLT- Guide bar

$

$

Not available

44

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

45

Homelite A64715

SHIELD- Sawdust
(Superseded to 64156A)

$

$

Not available

46

Homelite 65357

GROMMET- Oil line

$

$

Not available

47

Homelite 93039

PIN- Guide bar adjusting

$37.99

$

In Stock, only 1 left!

0

48

Homelite 81204

NUT- Gripco

$5.99

$

Usually ships in 3-7 days

0

49

Homelite A68265A

PUMP- Automatic oil
(Superseded to A02240)

$

$

Not available

50

Homelite 80919

SCREW- Pan hd. 4-40 x 1/4

$

$

Not available

51

Homelite 64102A

SCREW- Cam

$

$

Not available

52

Homelite 59736

GASKET- Cam screw

$

$

Not available

53

Homelite 59926

SEAL- Felt
(Superseded to UP06982)

$6.49

$

In Stock, Qty 10

0

54

Homelite 59675

WORM- Gear

$

$

Not available

55

Homelite 82248

SCREW- Fil hd. 8-32 x 3/4

$

$

Not available

56

Homelite 31734

CONNECTOR- Elbow

$

$

Not available

57

Homelite 65696

FITTING- Tube

$

$

Not available

58

Homelite A65682

LINE- Oil (discharge)

$

$

Not available

59

Homelite A64293

FILTER- Oil

$

$

Not available

60

Homelite 64356

LINE- Oil pick-up

$

$

Not available

61

Homelite 65695

CONNECTOR- Oil filter

$

$

Not available

62

Homelite 63452A

TUBE- Oil line

$

$

Currently unavailable

63

Homelite 58406

"O" RING

$

$

Not available

64

Homelite 63751

GASKET- Oil line tube

$

$

Not available

Homelite A69864C

MUFFLER- Downdraft (complete)

$

$

Currently unavailable

65

Homelite 82280

SCREW- Hex hd. cap 1/4-20 x 3

$

$

Not available

66

Homelite 95885

SCREW- Hex hd. 1/4-20 x 2 3/8

$

$

Not available

67

Homelite 69842

SHIELD- muffler

$

$

Not available

68

Homelite A698361

CAP- Muffler (SXL-925)

$

$

Not available

69

Homelite 69843

SUPPORT- Muffler (long)

$

$

Not available

70

Homelite 69844

SUPPORT- Muffler (short)

$

$

Not available

71

Homelite A93900A

SCREEN- Spark arrestor

$

$

Currently unavailable

72

Homelite A698381

BODY- Muffler

$

$

Not available

73

Homelite 69839

PLATE- Muffler body

$

$

Not available

74

Homelite A42206A

CYLINDER- 2 1/16" bore
(Superseded to A42206B)

$

$

Currently unavailable

75

Homelite 637781

GASKET- Cylinder

$

$

Not available

Homelite 80402

SCREW Hex hd. cap 1/4-20 x 5/8 (not shown)
(Superseded to UP07182)

$

$

Not available

76

Homelite 93561S

SPARK PLUG CJ-6Y Champion (after Lot #C-246)
(Superseded to D93561)

$

$

Not available

76

Homelite 63547S

SPARK PLUG- C-J6 Champion (prior to Lot #C-246)

$9.99

$

Usually ships in 3-7 days

0

Homelite 69027S

SPARK PLUG- C-J4 Champion (opt) (colder plug)

$

$

Not available

77

Homelite 810652

NUT- Hex 1/4-28
(Superseded to UP03514)

$5.49

$

In Stock, only 1 left!

0

78

Homelite 83009

WASHER- Lock, 1/4

$8.49

$

Usually ships in 3-7 days

0

79

Homelite A94119

KIT- Muffler temperature ("SXL-925W")

$

$

Currently unavailable

80

Homelite A93900A

SPARK ARRESTOR

$

$

Currently unavailable

81

Homelite 78098

GASKET- Muffler

$

$

Not available
