SUPER EZ AO (UT-10537-A) - Homelite Chainsaw Mufflers Parts Diagram

Chainsaw

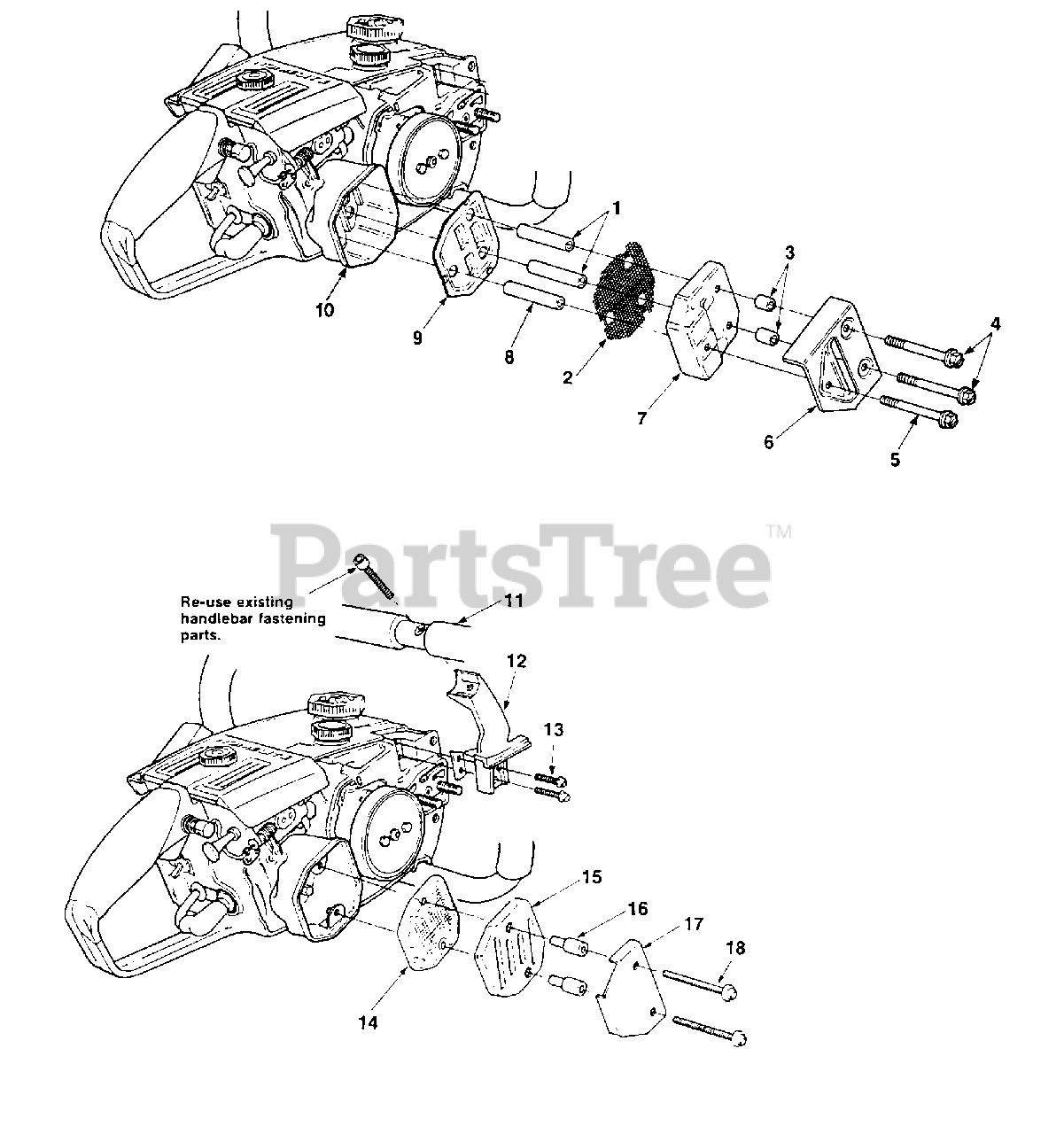

Mufflers Parts Diagram

  • Title

1

Homelite 9529403

SPACER- Split 2"

$

$

Currently unavailable

2

Homelite 95313

SCREEN- Muffler

$

$

Not available

3

Homelite 9529402

SPACER- Split 5/16"

$

$

Currently unavailable

4

Homelite 95316

SCREW- Mach. hex hd. (10-32 x 2 7/8)

$

$

Not available

5

Homelite 95315

SCREW- Mach. hex hd. (10-32 x 2 5/8")

$

$

Currently unavailable

6

Homelite 95298

DEFLECTOR- Muffler

$

$

Currently unavailable

7

Homelite 95281

CAP- Muffler

$

$

Not available

8

Homelite 9529404

SPACER- Split 2 1/8"

$

$

Not available

9

Homelite 95312

BAFFLE- Muffler

$

$

Not available

10

Homelite A651523

MUFFLER- Body

$

$

Currently unavailable

Homelite A94118

KIT- Muffler temperature

Note: Includes items 11 - 18.

$

$

Currently unavailable

11

Homelite A684693

HANDLE BAR

$

$

Currently unavailable

12

Homelite A70303

BRACKET- Handle bar

Note: Includes item 13.

$

$

Currently unavailable

13

Homelite 80704

SCREW- (#10-32 x .625)

$

$

Not available

14

Homelite DA65256A

ARRESTOR- Spark

$

$

Currently unavailable

15

Homelite 94098

CAP- Muffler

$

$

Currently unavailable

16

Homelite 94100

SPACER- Muffler

$

$

Currently unavailable

17

Homelite 94092

SHIELD- Muffler

$

$

Currently unavailable

18

Homelite 82353

SCREW- Hex washer (10-32 x 1.5)

$

$

Not available
