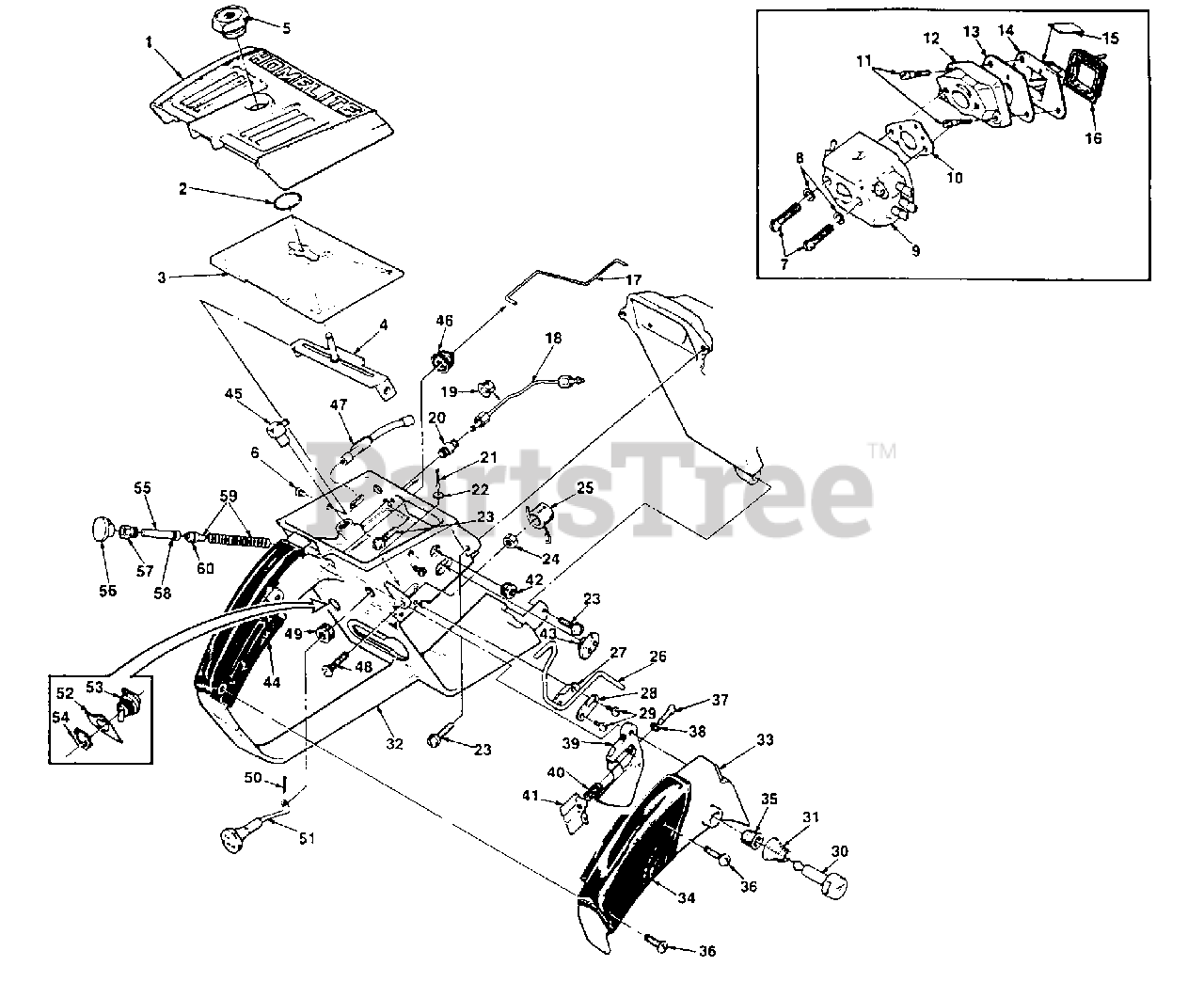

SUPER EZ AO (UT-10537-A) - Homelite Chainsaw Intake Parts Diagram

Chainsaw

Intake Parts Diagram

  • Title

1

Homelite 94271

COVER- Air filter

$

$

Currently unavailable

2

Homelite 58319A

RING- Retaining

$

$

Not available

3

Homelite A65178

FILTER ELEMENT- Air
(Superseded to DA65178B)

$

$

Currently unavailable

4

Homelite A95346

BRACKET- Air filter cover

Note: Includes items 5 - 6.

$

$

Currently unavailable

5

Homelite A65272

NUT- Cover mounting (1/4-28)
(Superseded to UP05611)

$31.99

$

Usually ships in 3-7 days

0

6

Homelite 95922

SCREW- Pan, 8-32 x 3/8
(Superseded to 660624001)

$

$

Not available

7

Homelite 82165

SCREW- Hex, 10-32 x 1 5/8

$

$

Not available

8

Homelite 83046

WASHER- Lock #10

$

$

Not available

9

Homelite A68415B

CARBURETOR- (HDC-64)

$

$

Currently unavailable

10

Homelite 65016

GASKET- Carburetor

$

$

Not available

11

Homelite 64349A

SCREW- Shoulder

$

$

Currently unavailable

12

Homelite A651541A

MANIFOLD- Intake

$

$

Currently unavailable

13

Homelite 65014A

GASKET- Reed valve seat

$

$

Not available

14

Homelite 65010

SEAT- Reed valve

$

$

Not available

15

Homelite 65012A

REED- Valve

$

$

Currently unavailable

16

Homelite 65011A

RETAINER- Reed valve

$

$

Currently unavailable

17

Homelite 65056

ROD- Throttle

$

$

Not available

18

Homelite A65214

LINE- Oil

$

$

Currently unavailable

Homelite 25302

NUT- Compression

$

$

Not available

19

Homelite 65085

GROMMET- Oil line

$

$

Not available

20

Homelite A65077

VALVE- Check (outlet)

$

$

Currently unavailable

21

Homelite 86301

PIN- Cotter, 1/16 x 1/2

$

$

Not available

22

Homelite 63290

WASHER- Felt

$

$

Not available

23

Homelite 80676

SCREW- Hex, 12-24 x 5/8

$

$

Not available

24

Homelite 810101

NUT- hex, 10-32

$

$

Currently unavailable

25

Homelite 65174

SPRING- Release valve

$

$

Not available

26

Homelite 65173

LEVER- Release

$

$

Not available

27

Homelite 65092

PLATE- Lever

$

$

Currently unavailable

28

Homelite 65093

CLAMP- Lever

$

$

Not available

29

Homelite 80571

SCREW- Pan 6-32 x 3/8

$

$

Not available

30

Homelite 65171A

PIN- Trigger latch

$

$

Currently unavailable

31

Homelite 64677

SPRING- Throttle latch

$

$

Not available

32

Homelite A68267B

HANDLE- Throttle

Note: Includes items 33 - 46.

$

$

Currently unavailable

33

Homelite 688522

COVER- Throttle handle

$

$

Not available

34

Homelite 68759

GRIP- Throttle handle cover

$

$

Not available

35

Homelite 67752

BUSHING

$

$

Not available

36

Homelite 80560

SCREW- Pan, 8-32 x 1/2

$

$

Not available

37

Homelite 82198

SCREW- Pan 6-40 x 1

$

$

Not available

38

Homelite 65260

"O" RING

$5.49

$

Usually ships in 3-7 days

0

39

Homelite 65031A

TRIGGER- Throttle

$

$

Currently unavailable

40

Homelite 65188

SPRING- Throttle stop

$

$

Not available

41

Homelite 65147A

STOP- Throttle adjustment

$

$

Not available

42

Homelite 68197

GROMMET- Idle adjusting

$

$

Not available

43

Homelite 68196

GROMMET- "Hi-Lo"

$

$

Not available

Homelite A68053A

LINE- Fuel

Note: (Shown on Starter and Ignition diagram)

$

$

Currently unavailable

Homelite 68046

GROMMET

Note: (See Starter and Ignition diagram)

$

$

Not available

44

Homelite 68770

GRIP- Throttle handle

$

$

Not available

45

Homelite A65076

VALVE- Check (inlet) 90ø

$

$

Currently unavailable

46

Homelite 67634

BOOT- Throttle rod

$

$

Not available

47

Homelite 65137

LINE- Oil

$

$

Not available

48

Homelite 80040

SCREW- Round hd., 10-32 x 7/8

$

$

Not available

49

Homelite 64862

GROMMET- Choke
(Superseded to 570219001)

$

$

Not available

50

Homelite 86324

PIN- Cotter, 1/32 x 1/2

$

$

Not available

51

Homelite 650721

ROD- Choke

$

$

Currently unavailable

52

Homelite 70834

PLATE- "On-Off"

$

$

Not available

53

Homelite A63938

SWITCH- Grounding
(Superseded to UP06871)

Note: Includes item 54.

$

$

Not available

54

Homelite 72084A1

NUT- Lock
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

55

Homelite A68061A

PLUNGER- Oil pump

Note: Includes items 56 - 60.

$

$

Currently unavailable

56

Homelite 65084

BUTTON- Oil pump

$

$

Not available

57

Homelite 65082

NUT- Plunger

$

$

Not available

58

Homelite 59074

"O" RING

$

$

Not available

59

Homelite A67235A

PLUNGER- Pump

Note: Includes item 60.

$

$

Currently unavailable

60

Homelite 58406

"O" RING

$

$

Not available
