SUPER 2 (UT-10697) - Homelite Chainsaw Peripheral Engine Parts Parts Diagram

Chainsaw

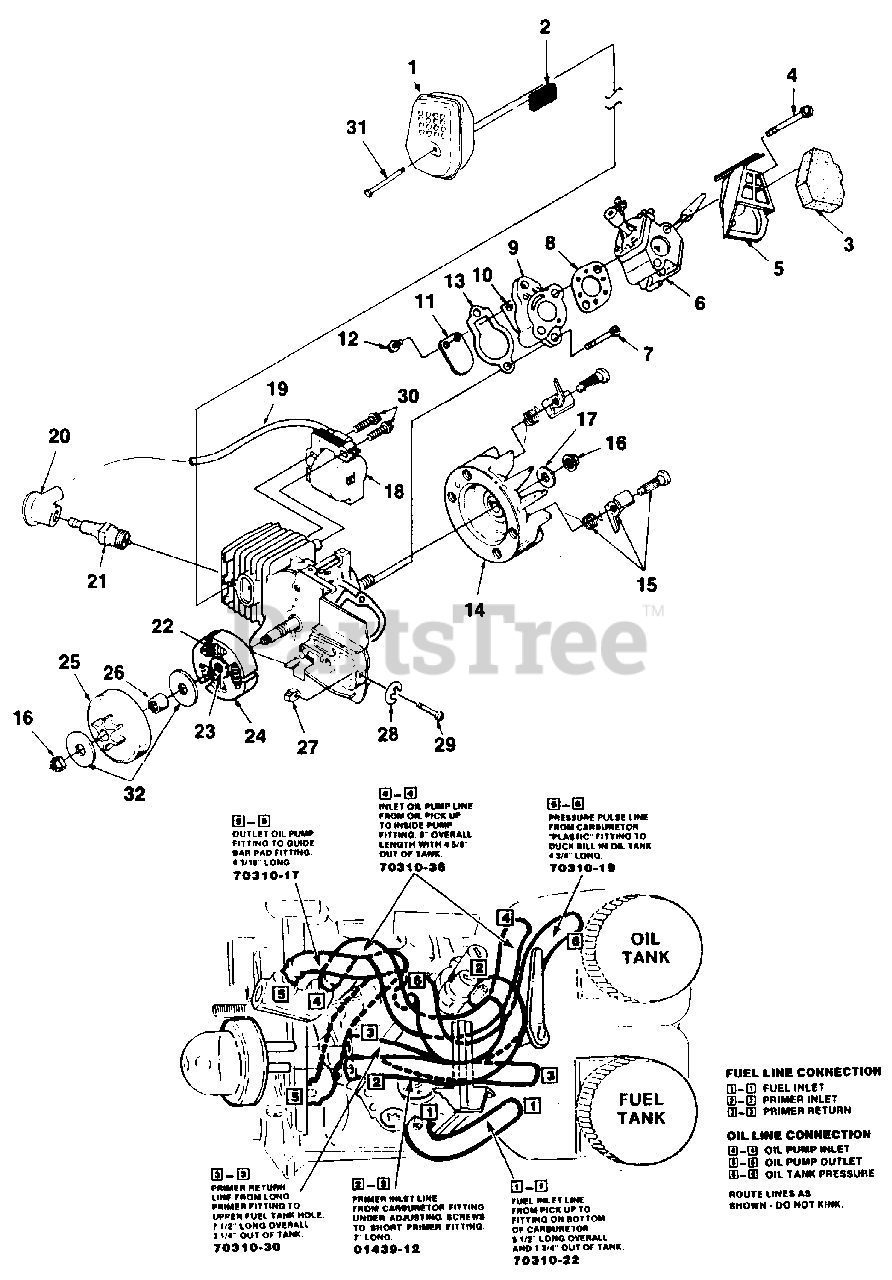

Peripheral Engine Parts Parts Diagram

  • Title
1

Homelite A02459

MUFFLER

$

$

Currently unavailable

2

Homelite 02458

SCREEN- Spark arrestor

$

$

Not available

3

Homelite 02500

FILTER- Air (10-24 x 1 7/8")
(Superseded to UP07386)

$

$

Not available

4

Homelite 82578

SCREW- Shoulder plastite (#10-24 x 1 3/4")
(Superseded to 00167)

$

$

Not available

5

Homelite 02491A

BOX- Air filter

$

$

Not available

6

Homelite A02486A

CARBURETOR & OIL PUMP ASSY.

$

$

Not available

7

Homelite 825491

SCREW- Torx taptite, thd. forming (10-24 x 1")
(Superseded to UP05542)

$

$

Not available

8

Homelite 02488

GASKET- Carburetor
(Superseded to UP05880)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite A02499

HEAT DAM

$15.99

$

Usually ships in 3-7 days

0

10

Homelite 95983

REED
(Superseded to UP07391)

$8.99

$

Usually ships in 3-7 days

0

11

Homelite 03205

STOP- Reed

$

$

Not available

12

Homelite 82498

SCREW- Hex Taptite (4-40 x 3/9)

$

$

Not available

13

Homelite 02453

GASKET- Intake manifold

$5.49

$

Usually ships in 3-7 days

0

14

Homelite A95007

ROTOR & STARTER PAWL
(Superseded to UP04242)

$

$

Not available

15

Homelite A70285E

KIT- Starter pawl

$101.99

$

Usually ships in 3-7 days

0

16

Homelite 81229

NUT- (5/16-24)
(Superseded to 81229A)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 84065

WASHER- (5/16")
(Superseded to UP04241)

$

$

Not available

18

$

$

Not available

19

Homelite 69326

LEAD- Hi-Tension

$

$

Not available

20

Homelite A33055

TERMINAL

$

$

Not available

21

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

Homelite 79252

SPARK PLUG (Champion RDJ7Y) (International Only)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

22

Homelite 98066

SPRING- Clutch
(Superseded to 03961)

$

$

Not available

23

Homelite 79221

SPIDER- Clutch

$30.99

$

Usually ships in 3-7 days

0

24

Homelite 79222A

SHOE- Clutch

$

$

Currently unavailable

25

Homelite A95653C

SPROCKET & DRUM
(Superseded to A95653E)

$

$

Not available

26

Homelite 70277

BEARING
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

27

Homelite 692542

PIN- Adjusting

$26.99

$

In Stock, only 1 left!

0

28

Homelite A00440

SCREW & E-RING KIT

$

$

Not available

29

Homelite 93574

E-RING
(Superseded to A00440)

$

$

Not available

30

Homelite 82540

SCREW Machine hex sems

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 93460

SCREW- Machine hex sems (10-24 x 1 7/8")

$

$

Not available

32

Homelite 95299

WASHER- Thrust

$

$

Not available

Homelite A97921A

KIT - Clutch complete

$

$

Not available
