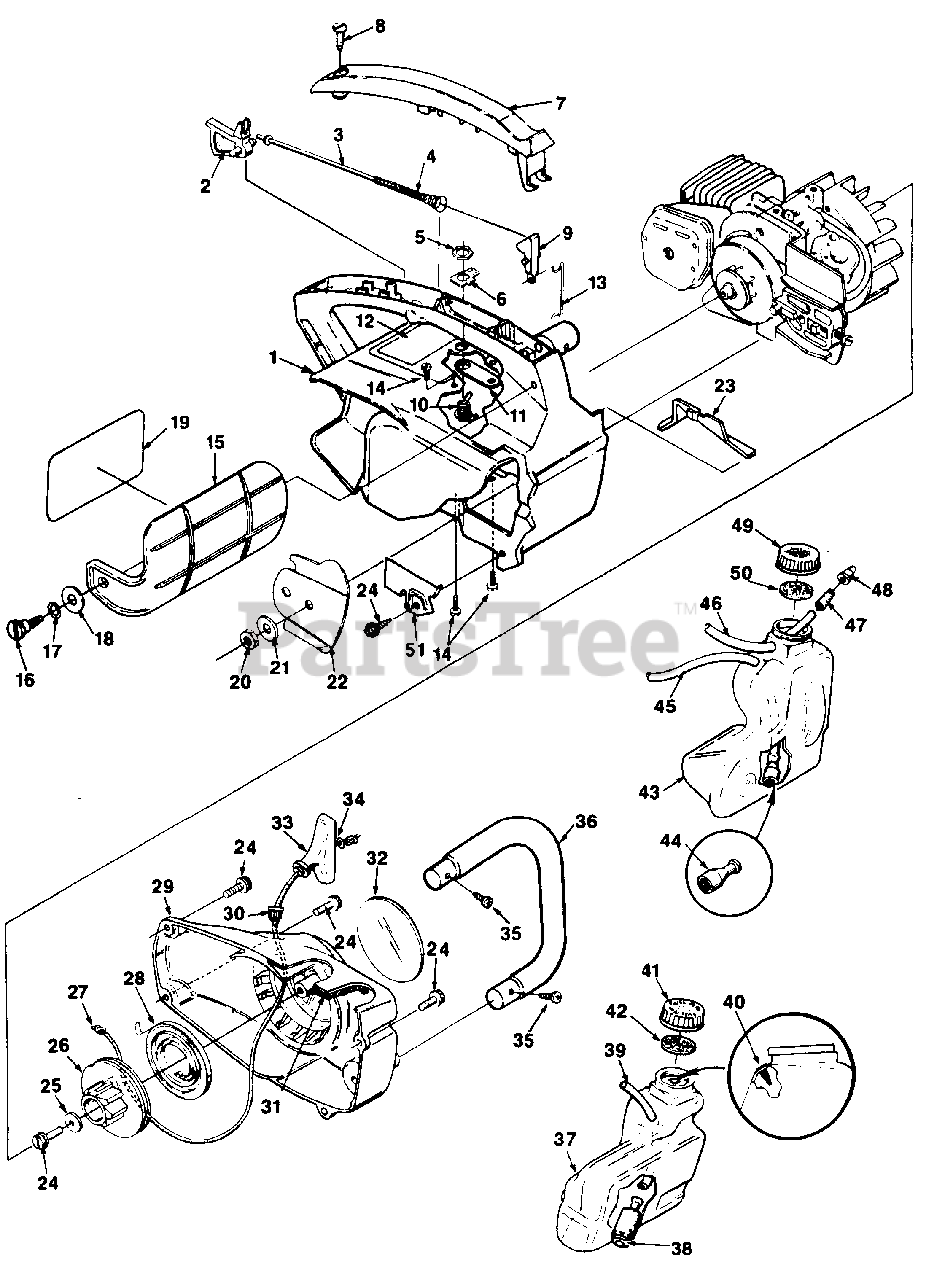

SUPER 2 (UT-10654) - Homelite Chainsaw Housing & Handles Parts Diagram

Chainsaw

Housing & Handles Parts Diagram

  • Title

1

Homelite A98086

HOUSING- Engine

Note: Includes items 2-12

$

$

Currently unavailable

2

Homelite 70619

TRIGGER- Rear

$

$

Not available

3

Homelite A98088

ROD- Throttle

$

$

Currently unavailable

4

Homelite 69249

SPRING- Throttle rod

$

$

Not available

5

Homelite 72084A1

NUT- Hex
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 70834

PLATE-"ON"-"OFF"

$

$

Not available

7

Homelite 98021

COVER- Handle

$

$

Not available

8

Homelite 82312

SCREW- Thread forming (10 x 625)

$

$

Not available

9

Homelite 69107

LEVER- Throttle

$

$

Not available

10

Homelite A94721

SWITCH & LEAD

$

$

Currently unavailable

11

Homelite 96417

STRAP- Ground

$

$

Not available

12

Homelite 70835

PLATE- Starting instruction

$

$

Not available

13

Homelite 69255C

ROD- Front throttle

$

$

Currently unavailable

14

Homelite 88063

SCREW- Hex hd.

$2.99

$

Usually ships in 3-7 days

0

15

Homelite A70796C

GUARD- Hand
(Superseded to UP06581)

Note: Includes items 16-19

$

$

Currently unavailable

16

Homelite 95714

SCREW- Shoulder
(Superseded to UP06845)

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 95694

WASHER- Belleville

$

$

Not available

18

Homelite 96102

WASHER- Flat

$

$

Not available

19

Homelite 96990

DECAL
(Superseded to 02661)

$

$

Not available

20

Homelite 810652

NUT- Guide bar 1/4-28
(Superseded to UP03514)

$5.49

$

In Stock, only 1 left!

0

21

Homelite 69309A

WASHER- Flat

$

$

Not available

22

Homelite 693601

PLATE- Guide bar

$

$

Currently unavailable

23

Homelite 69263

COVER- Air filter

$

$

Not available

24

Homelite 70771

SCREW- Thread forming
(Superseded to UP03900)

$1.99

$

In Stock, Qty 6

0

25

Homelite 94062

WASHER- Retaining

$

$

Not available

26

Homelite 97768

PULLEY- Starter
(Superseded to PS03117)

$

$

Not available

27

Homelite 97899

ROPE- Starter
(Superseded to 9789901)

$1.99

$

In Stock, only 3 left!

0

28

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

29

Homelite A98085

STARTER HOUSING ASSY.

Note: Includes items 30-31

$

$

Currently unavailable

30

Homelite 969811A

BUSHING- Starter housing

$

$

Not available

31

Homelite 69443

FILTER- Fuel tank valve

$

$

Not available

32

Homelite 70240

DECAL- (XL)

$

$

Not available

33

Homelite 70211

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

34

Homelite 84025

WASHER- Flat

$

$

Not available

35

Homelite 94065

SCREW- Thread forming

$

$

Not available

36

Homelite 94508

HANDLE BAR

$

$

Not available

37

Homelite A70899B

TANK- Fuel

Note: Includes items 38-42

$

$

Not available

38

Homelite 96639

FILTER- Fuel
(Superseded to UP03871)

$

$

Not available

39

Homelite 7031029

LINE- Fuel 7 1/4"

$

$

Not available

40

Homelite 69451

VALVE- Check (Duck bill)

$

$

Not available

41

Homelite A97228

CAP- Fuel tank (red)

Note: Includes items 42

$

$

Currently unavailable

42

Homelite 94494

GASKET- Fuel cap

$

$

Not available

43

Homelite A70898A

TANK- Oil
(Superseded to A07554)

Note: Includes items 44-50

$

$

Currently unavailable

44

Homelite A68593

FINDER- Oil

$

$

Not available

45

Homelite 7030924

LINE- Oil (6")

$

$

Not available

46

Homelite A69358B

LINE- Pressure
(Superseded to A09163)

Note: Includes items 47-48

$

$

Not available

47

Homelite 69659B

CONNECTOR- Oil

$

$

Currently unavailable

48

Homelite 69451

VALVE- Check (Duck bill)

$

$

Not available

49

Homelite A97359

CAP- Oil (Black)

Note: Includes items 50

$

$

Currently unavailable

50

Homelite 94494

GASKET- Fuel filler cap

$

$

Not available

51

Homelite 98054

GUARD- Chain

$

$

Not available

Homelite 94565

Oversized Screw

Note: Use to replace screw 70771 (item 24) if one is stripped out of starter housing

$

$

Not available
