SUPER 2 (UT-10653) - Homelite Chainsaw Peripheral Engine Parts Parts Diagram

Chainsaw

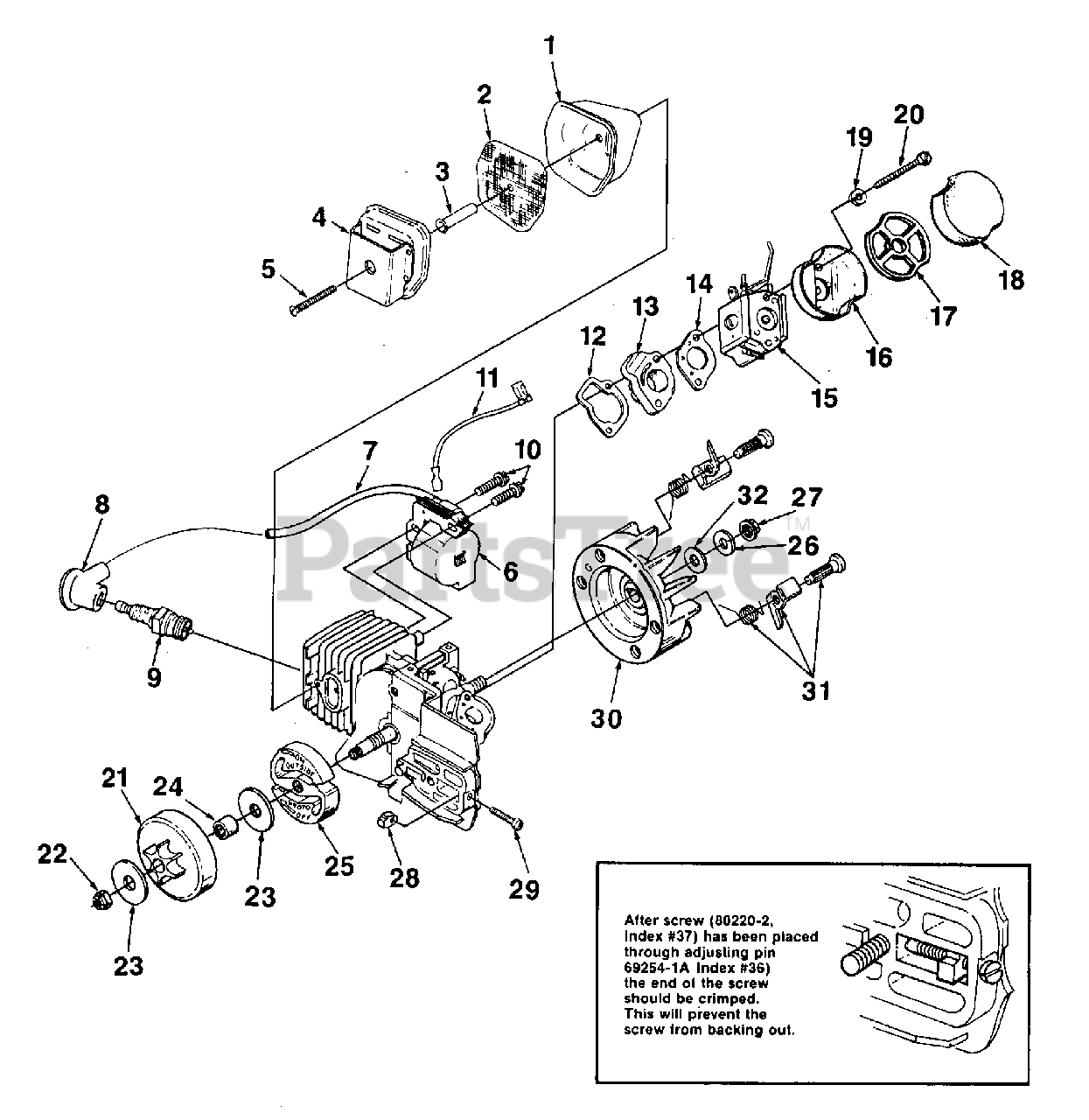

Peripheral Engine Parts Parts Diagram

  • Title

Homelite A94051C

MUFFLER- Complete
(Superseded to A06374)

$

$

Currently unavailable

1

Homelite 93986

BODY- Muffler

$

$

Not available

2

Homelite 93991A

SCREEN- Spark arrestor
(Superseded to A00072)

$

$

Currently unavailable

3

Homelite 9398308

SPACER- Muffler

$

$

Not available

4

Homelite A95428A

CAP- Muffler (w/shield)
(Superseded to 93985)

$

$

Not available

5

Homelite 93460

SCREW

$

$

Not available

6

Homelite 94711A

MODULE- Ignition (solid state)
(Superseded to UP03903)

$

$

Not available

7

Homelite 69326

LEAD- High tension

$

$

Not available

8

Homelite A33055

TERMINAL- Spark plug

$

$

Not available

9

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

10

Homelite 82248

SCREW- Hex w/washer (8-32 x 3/4)

$

$

Not available

11

Homelite A94721

LEAD- Ground

$

$

Currently unavailable

12

Homelite 69143

GASKET- Intake manifold

$

$

Not available

13

Homelite A69373B

MANIFOLD- Intake

$

$

Not available

14

Homelite 65016

GASKET- Carburetor

$

$

Not available

15

Homelite A94649A

CARBURETOR- (HDC-65) Walbro

$

$

Currently unavailable

Homelite A96481

CARBURETOR- (C2S-H5) Zama

$

$

Currently unavailable

16

Homelite 69148

CUP- Air filter

$

$

Not available

17

Homelite 69457

RETAINER- Air filter

$

$

Not available

18

Homelite 69141

FILTER- Air
(Superseded to D92702B)

$

$

Not available

19

Homelite 83006

WASHER- Lock

$

$

Not available

20

Homelite 80481

SCREW- Hex hd. (10-32 x 2 1/4)

$

$

Not available

21

Homelite A95653A

SPROCKET & DRUM

$

$

Currently unavailable

22

Homelite 81112

NUT- Locking (6/16-24)

$

$

Not available

23

Homelite 95299

WASHER- Thrust

$

$

Not available

24

Homelite 68512

BEARING- Needle
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

25

Homelite A70351A

CLUTCH (S)

$

$

Not available

26

Homelite 83002

WASHER- Lock
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

27

Homelite 81117

NUT- Rotor (5/16-24)

$2.49

$

In Stock, only 1 left!

0

28

Homelite 692541A

PIN- Adjusting (see insert)

$

$

Currently unavailable

29

Homelite 802202

SCREW- Adjusting (Fil. hd. 8-32 x 1) (see insert)

$

$

Currently unavailable

30

Homelite A95007

ROTOR & STARTER PAWL (Phelon)
(Superseded to UP04242)

$

$

Not available

31

Homelite A70285D

KIT- Starter pawl
(Superseded to UP07636)

$101.99

$

Usually ships in 3-7 days

0

32

Homelite 84065

WASHER- Flat
(Superseded to UP04241)

$

$

Not available
