SUPER 2 (UT-10653) - Homelite Chainsaw Engine Internals Parts Diagram

Chainsaw

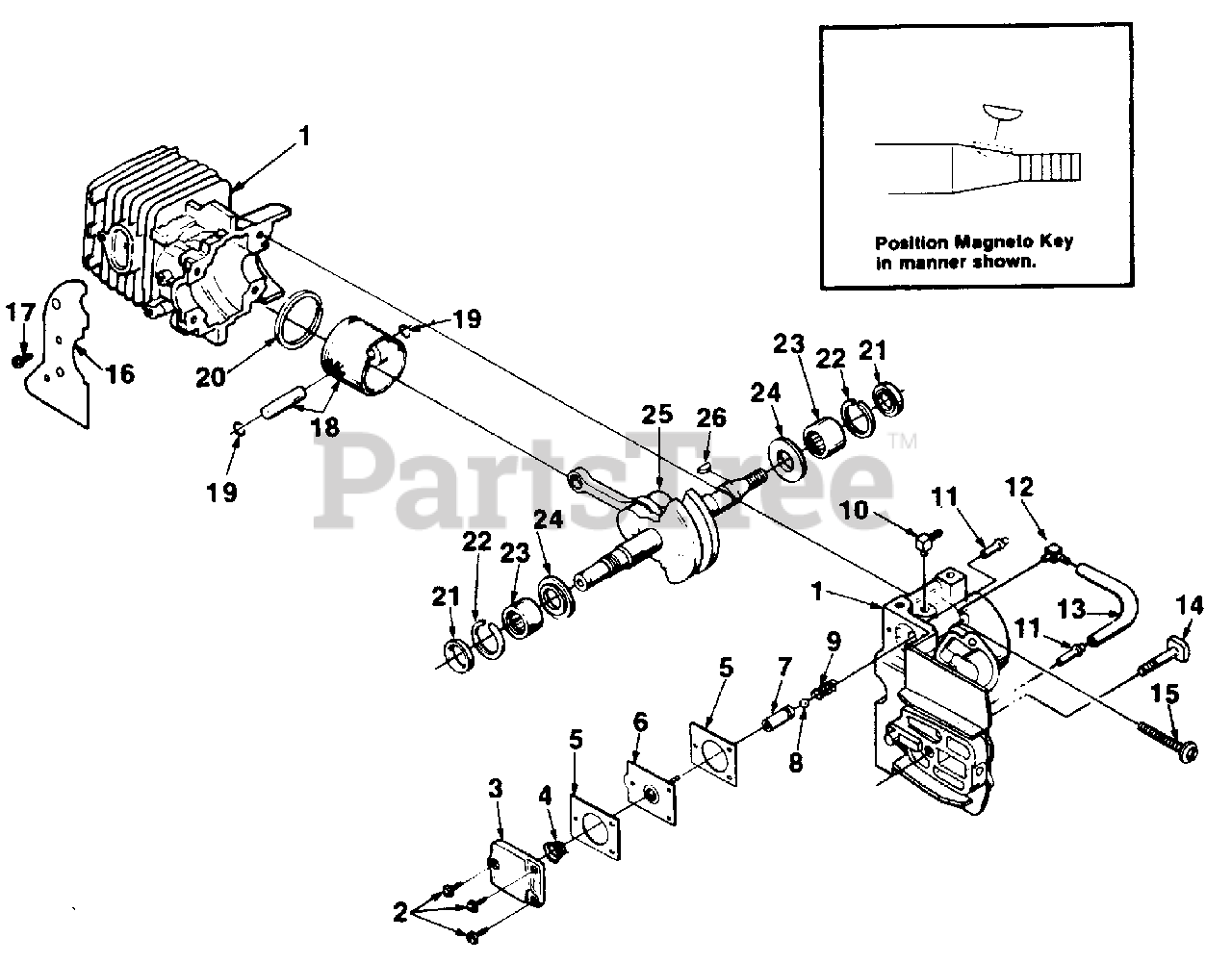

Engine Internals Parts Diagram

  • Title

1

Homelite A95072

CRANKCASE & CYLINDER ASSY.

$

$

Currently unavailable

2

Homelite 80571

SCREW- Pan hd. (6-32 x 3/8)

$

$

Not available

3

Homelite 692241C

COVER- Oil pump

$

$

Not available

4

Homelite 69447

SPRING- Oil pump

$

$

Not available

5

Homelite 692441

GASKET- Oil pump
(Superseded to UP07390)

$

$

Not available

6

Homelite A12356B

PLUNGER- Oil pump
(Superseded to A12356C)

$

$

Not available

7

Homelite 693431

BODY- Oil pump

$24.99

$

Usually ships in 3-7 days

0

8

Homelite 60051

BALL- Check valve
(Superseded to UP03652)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 68570

SPRING- Check valve

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 70204

FITTING- Oil line

$

$

Not available

11

Homelite 94619

FITTING- Tube

$

$

Not available

12

Homelite 98109

FITTING- Oil line

$

$

Not available

13

Homelite 70161

LINE- Oil

$

$

Not available

14

Homelite 69195

BOLT- Guide bar

$8.49

$

In Stock, only 1 left!

0

15

Homelite 88044

SCREW- Sems hex hd. (8-32 x 1)

$

$

Not available

16

Homelite 69094

SHIELD- Sawdust
(Superseded to 02639)

$

$

Not available

17

Homelite 93932

SCREW

$

$

Not available

18

Homelite A70224A

PISTON & PIN ASSEMBLY

$

$

Currently unavailable

19

Homelite 65261

RING- Piston pin retaining

$

$

Not available

20

Homelite 70205

RING- Piston (primary source)

$20.99

$

Usually ships in 3-7 days

0

Homelite 93165

RING- Piston (alternate source)

$

$

Not available

21

Homelite 94638

SEAL
(Superseded to 09108)

$

$

Not available

22

Homelite 69407

SPACER
(Superseded to 09108)

$

$

Not available

23

Homelite 12530

BEARING- Needle

$

$

Not available

24

Homelite 69093B

WASHER- Thrust

$

$

Not available

25

Homelite A94992

CRANKSHAFT
(Superseded to A94992A)

$217.99

$

Usually ships in 3-7 days

0

Homelite 81112

NUT

Note: (Not shown)

$

$

Not available

26

Homelite 69250

KEY- Magneto

$

$

Not available
