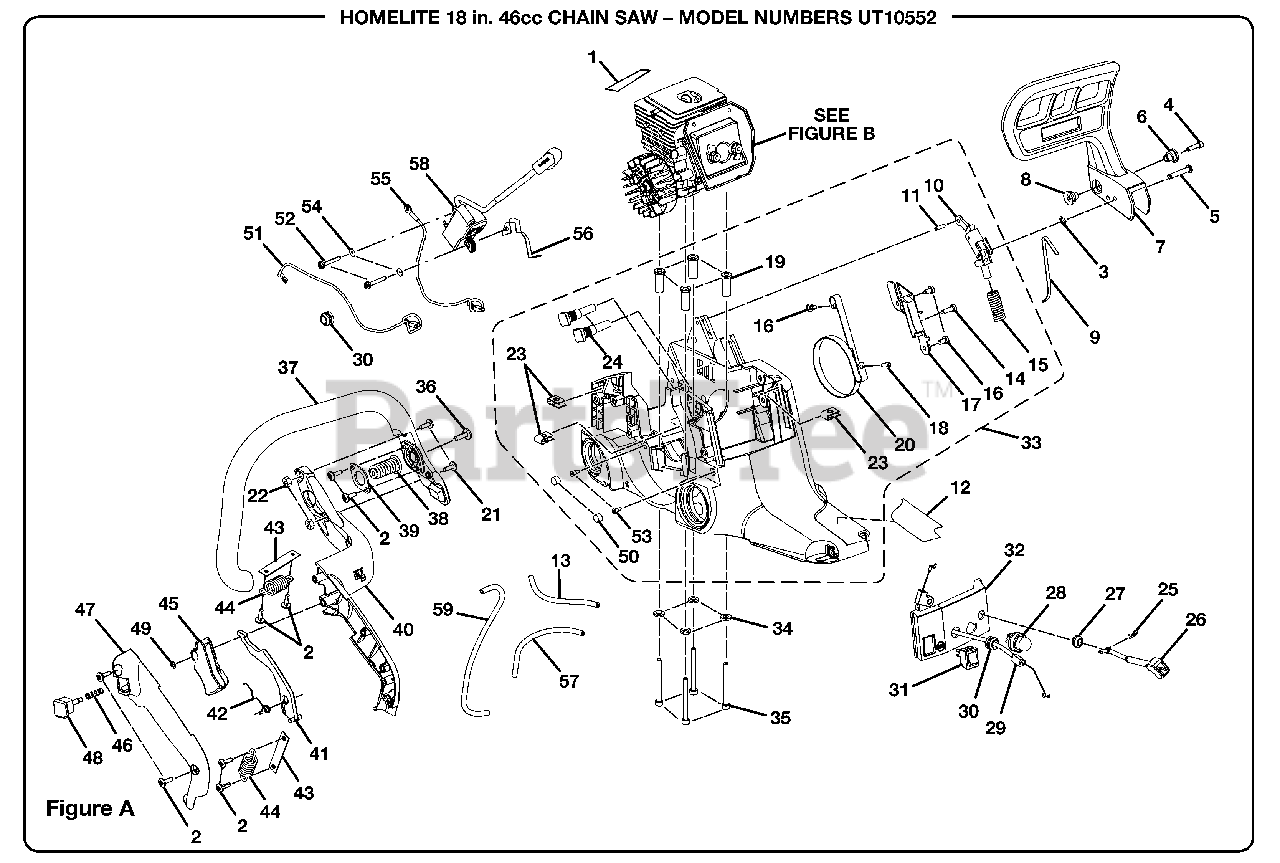

SUPER 2 (UT-10552) - Homelite Chainsaw Figure A Parts Diagram

Chainsaw

Figure A Parts Diagram

  • Title

1

Homelite 901358001

Heat Reflector Tape

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 660632001

Screw (10-14 X 5/8 in. Torx Pan Hd.)
(Superseded to 82621)

Note: Purchase locally

$

$

Not available

3

Homelite 671075001

Retaining Ring
(Superseded to 69599)

$

$

Not available

4

Homelite 660635001

Screw (8-32 X 5/8 in. Hex Soc. Hd.)

Note: Purchase locally

$1.99

$

In Stock, only 2 left!

0

5

Homelite 620442001

Handguard Lever Pin

$

$

Not available

6

Homelite 671096001

Pivot (Right Hand)

$1.99

$

In Stock, Qty 5

0

7

Homelite 518278001

Handguard

$

$

Not available

8

Homelite 671097001

Pivot (Left Hand)

$1.99

$

In Stock, Qty 5

0

9

Homelite 638024001

Spring

$1.99

$

In Stock, only 4 left!

0

10

Homelite 300954002

Chain Brake Link Assembly

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 671099001

Roll Pin (Small)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 940636001

On-board Label

$

$

Not available

13

Homelite 570247006

Rubber Tubing (95 mm)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 660634002

Screw (8-16 X 17 mm)

Note: Purchase locally

$

$

Not available

15

Homelite 678113001

Spring
(Superseded to 984679001)

$

$

Not available

16

Homelite 660634001

Screw (8-16 X 0.32 Pan Hd.)

Note: Purchase locally

$1.99

$

In Stock, Qty 20+

0

17

Homelite 518305001

Brake Band Cover

$

$

Not available

18

Homelite 671095001

Roll Pin (Big)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 671087001

Spacer Insert

$

$

Not available

20

Homelite 631063001

Chain Brake Band Kit
(Superseded to 985030001)

$

$

Not available

21

Homelite 660964001

Screw (10-24 X 19.5 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678744002

Lock Nut (10-24)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 671077001

Speed Nut ("U"-type)
(Superseded to 07598)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 660628001

Guide Bar Bolt
(Superseded to PS04881)

$

$

Not available

25

Homelite 631034001

Spring Clip
(Superseded to 08939)

$

$

Not available

26

Homelite 518298001

Choke Rod

$

$

Not available

27

Homelite 570219001

Grommet

$

$

Not available

28

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

29

Homelite 900885002

Throttle Cable

$

$

Not available

30

Homelite 570227001

Split Grommet

$1.99

$

In Stock, only 1 left!

0

31

Homelite 760338001

Switch
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 518276001

Control Panel

$

$

Not available

33

Homelite 308823001

Chassis Assembly
(Superseded to 120950005)

Note: Inc. Key Nos. 10, 11, 14-20, 23, 24, 50 and 53

$

$

Not available

34

Homelite 671080001

Washer

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 660622001

Screw (10-24 X 2 in. Soc. Cap Hd.)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 660630001

Screw (10-24 X 5/8 in. Torx Hd.)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 518244001

Front Handle

$

$

Not available

38

Homelite 671100003

Upper Isolator Spring

$

$

Not available

39

Homelite 631051001

Isolator Plate

$

$

Not available

40

Homelite 518240001

Handle Support

$

$

Not available

41

Homelite 518301001

Lockout Throttle

$1.49

$

In Stock, only 4 left!

0

42

Homelite 678037001

Torsion Spring
(Superseded to PS04914)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 308776001

Isolator Limiter

$

$

Not available

44

Homelite 671100002

Isolator Spring

$

$

Not available

45

Homelite 518300001

Trigger

$

$

Not available

46

Homelite 671073001

Spring

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 518241001

Handle Cover

$

$

Not available

48

Homelite 518299001

Throttle Lock Pin

$

$

Not available

49

Homelite 638177001

Retaining Ring

$

$

Not available

50

Homelite 671088001

Element

$

$

Not available

51

Homelite 290709001

Lead, Ignition Wire

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 660792001

Screw (9-15 x 1 in.)

Note: Purchase locally

$

$

Not available

53

Homelite 560955001

Duck Bill Valve

$2.49

$

In Stock, Qty 9

0

54

Homelite 678399001

Washer

$

$

Not available

55

Homelite 290709002

Lead,ground Wire

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 290709003

Lead,ground Wire

$

$

Currently unavailable

57

Homelite 570247007

Rubber Tubing (120 mm)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 300953002

Ignition Module

$

$

Not available

59

Homelite 570247008

Rubber Tubing (222 mm)

$

$

Not available
