SUPER 1130 G (UT-10226) - Homelite Chainsaw SDC-60 SDC-74 Carburetor Parts Diagram

Chainsaw

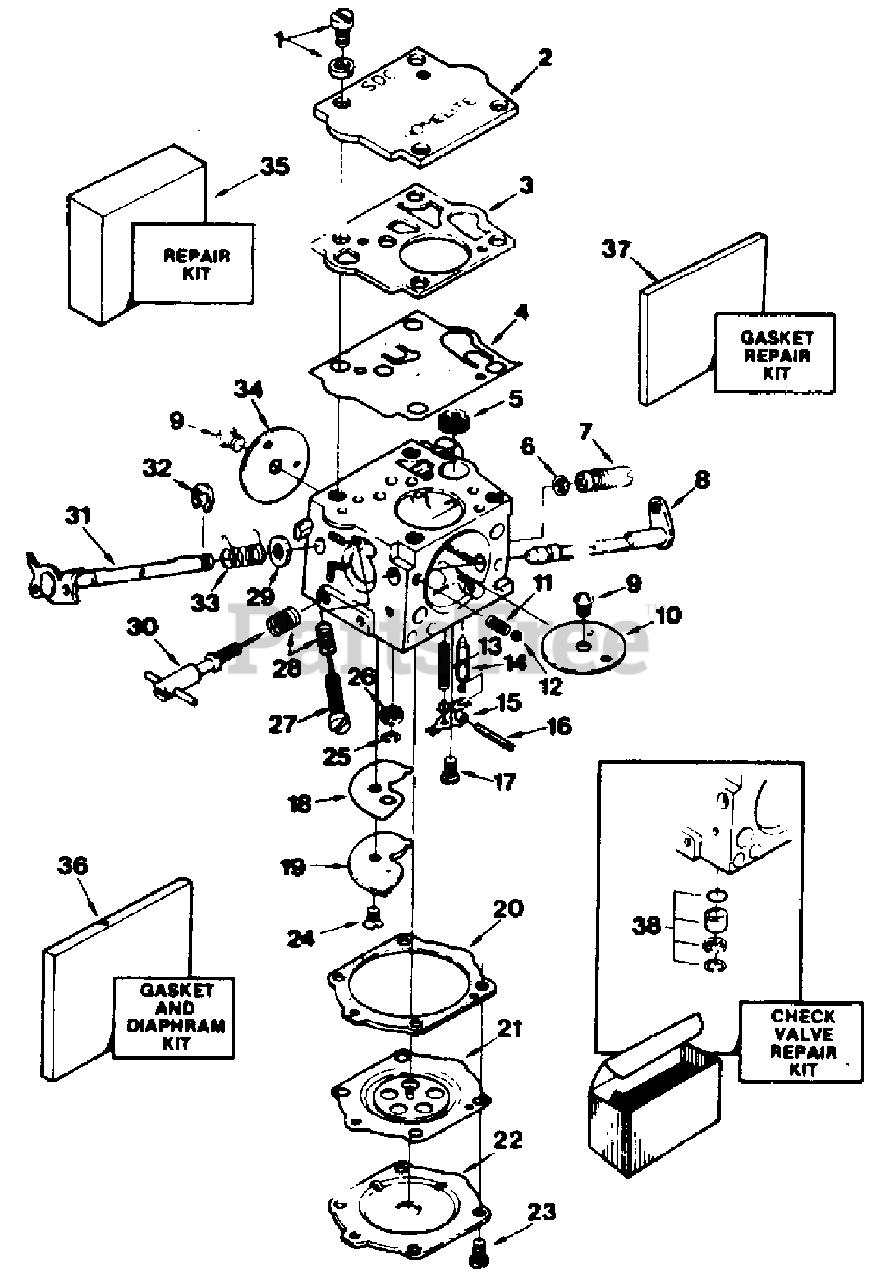

SDC-60 SDC-74 Carburetor Parts Diagram

  • Title

1

Homelite 64694

SCREW- Pump cover

$

$

Currently unavailable

2

Homelite 67002

COVER- Fuel pump

$

$

Not available

3

Homelite 67008

GASKET- Pump

$

$

Not available

4

Homelite 64233

DIAPHRAGM- Pump

$

$

Not available

5

Homelite 64243

SCREEN- Inlet

$

$

Not available

6

Homelite 70676

WASHER- Check valve

$5.99

$

Usually ships in 3-7 days

0

7

Homelite 93615

KIT- Governor check valve

$

$

Not available

8

Homelite 67109

SHAFT ASSEMBLY- Choke

$

$

Not available

9

Homelite 64693

SCREW- Valve

$

$

Currently unavailable

10

Homelite 64228

VALVE- Choke

$7.49

$

Usually ships in 3-7 days

0

11

Homelite 64238

SPRING- Choke friction

$

$

Not available

12

Homelite 60051

BALL- Choke friction
(Superseded to UP03652)

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 64237

SPRING- Metering lever (SDC-60)

$10.99

$

Usually ships in 3-7 days

0

Homelite 70081

SPRING- Metering lever (SDC-74)

$

$

Currently unavailable

14

Homelite 64229

VALVE- Inlet needle
(Superseded to 97942)

$

$

Not available

15

Homelite 64245

LEVER- Metering

$

$

Not available

16

Homelite 64244

PIN- Metering lever

$

$

Currently unavailable

17

Homelite 64688

SCREW- Metering lever pin

$

$

Currently unavailable

18

Homelite 68781

GASKET- Circuit plate

$

$

Not available

19

Homelite 70677

PLATE- Circuit (SDC-60)

$

$

Not available

Homelite 94874

PLATE- Circuit (SDC-74)

$

$

Not available

20

Homelite 64231

GASKET- Metering

$

$

Currently unavailable

21

Homelite 64235

DIAPHRAGM ASSEMBLY- Metering

$

$

Currently unavailable

22

Homelite 70880

COVER- Metering diaphragm

$

$

Not available

23

Homelite 64689

SCREW ASSEMBLY

$

$

Currently unavailable

24

Homelite 12840

SCREW- Circuit plate (SDC-60)

$

$

Currently unavailable

Homelite 70082

SCREW- Circuit plate (SDC-74)

$

$

Currently unavailable

25

Homelite 67360

RING- Screen retaining

$

$

Currently unavailable

26

Homelite 67381

SCREEN- Check valve

$

$

Currently unavailable

27

Homelite 70674

SCREW- Idle adjustment

$

$

Not available

28

Homelite 64236

SPRING- Needle adjustment

$

$

Currently unavailable

29

Homelite 70734

WASHER- Nylon

$

$

Currently unavailable

30

Homelite 70675

NEEDLE ASSEMBLY- Idle

$

$

Not available

31

Homelite 70669

SHAFT ASSEMBLY- Throttle

$

$

Not available

32

Homelite 70668

RING- Retaining

$

$

Not available

33

Homelite 67006

SPRING- Throttle return

$

$

Not available

34

Homelite 70670

VALVE- Throttle

$6.49

$

Usually ships in 3-7 days

0

35

Homelite 70679

KIT- Repair (SDC-60)

$

$

Not available

Homelite 94877

KIT- Repair (SDC-74)

$

$

Not available

36

Homelite 93006

KIT- Gasket & diaphragm (SDC-60)

$

$

Currently unavailable

Homelite 94876

KIT- Gasket & diaphragm (SDC-74)

$

$

Not available

37

Homelite 70678

GASKET SET

$

$

Currently unavailable

38

Homelite 65386

KIT- Check valve
(Superseded to 93910C)

$

$

Not available

VALVE- Check

$

$

Not available

SEAT- Valve

$

$

Not available

Homelite 67381

SCREEN- Check valve (Item 26)

$

$

Currently unavailable

Homelite 67360

RING- Screen retaining (Item 25)

$

$

Currently unavailable

Homelite 69365

FITTING- Inlet elbow

$

$

Currently unavailable
