SUPER 1050 (UT-10502) - Homelite Chainsaw Drivecase Parts Diagram

Chainsaw

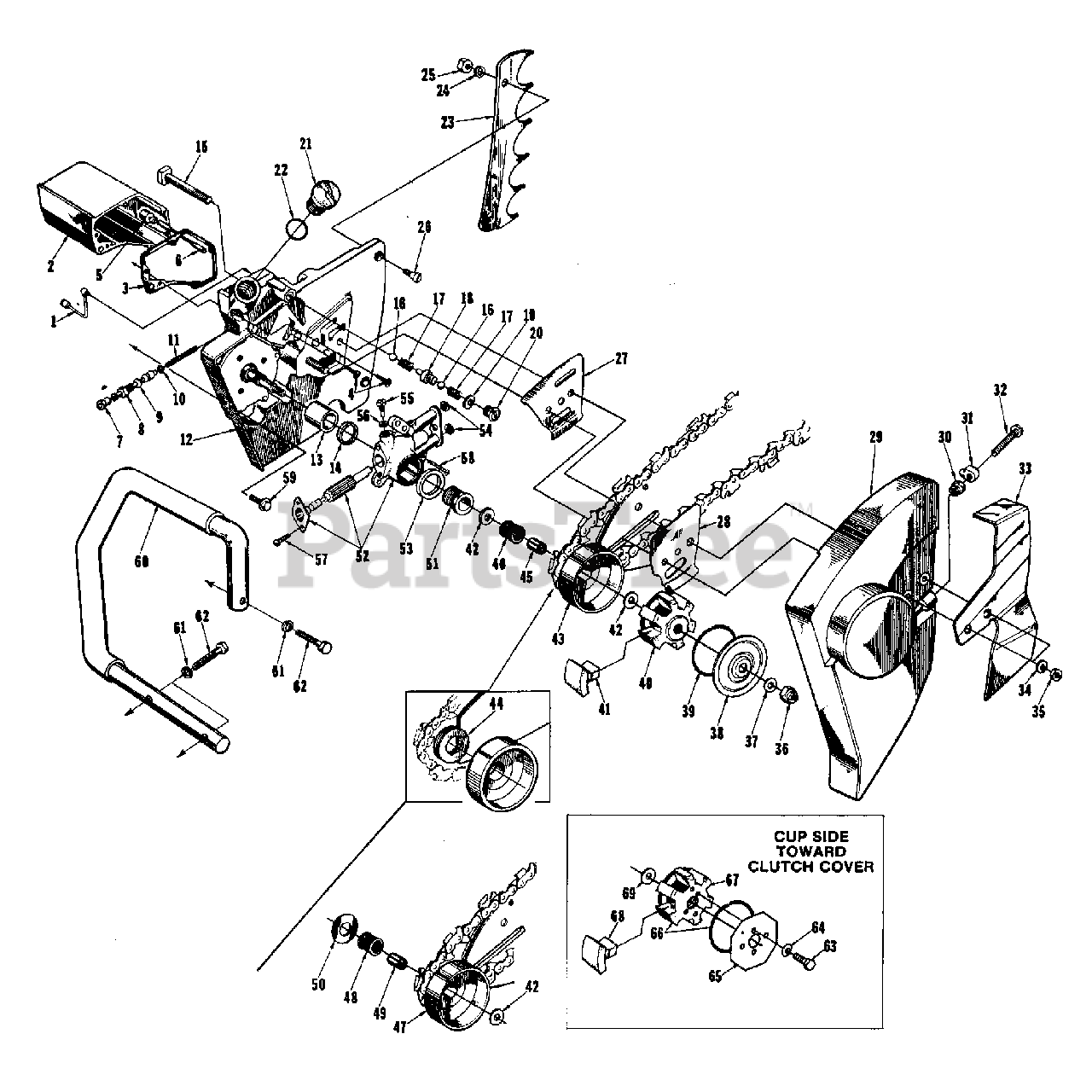

Drivecase Parts Diagram

  • Title

1

Homelite A64010

LINE- Oil pickup

$

$

Not available

2

Homelite A58341A

RESERVOIR- Oil

$

$

Currently unavailable

3

Homelite 67122

GASKET- Reservoir

$

$

Not available

4

Homelite 82156

SCREW- Fil, 8-32 x 3/4

$

$

Not available

Homelite 86301

PIN- Cotter (Not shown)

$

$

Not available

5

Homelite A64293

FILTER- Oil

$

$

Not available

6

Homelite 59674

LINE- Oil pickup

$

$

Not available

7

Homelite 58337A

CONNECTOR- Pump

$

$

Not available

8

Homelite A5783410

PLUNGER- Oil pickup

$

$

Currently unavailable

9

Homelite 59074

"O" RING- Shaft

$

$

Not available

10

Homelite 74388

"O" RING- Plunger
(Superseded to UP06601)

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 59293

SPRING- Plunger

$

$

Not available

12

Homelite A64264B

DRIVECASE

$

$

Not available

Homelite 59023

TUBE- Oil line (Not shown)

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 63043

BEARING- Needle

$

$

Not available

14

Homelite 56256B

SEAL

$

$

Not available

15

Homelite 58334A

BOLT- Guide bar

$

$

Not available

16

Homelite 25527

BALL- Check

$

$

Not available

17

Homelite 59022

SPRING

$

$

Not available

18

Homelite A67959

SEAT- Valve

$

$

Currently unavailable

19

Homelite 67123

GASKET

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 67958

CAP- Check valve

$

$

Not available

21

Homelite A63717C

CAP- Oil

$

$

Not available

Homelite 69451

VALVE- Check (Not shown)

$

$

Not available

22

Homelite 56607

GASKET

$

$

Not available

23

Homelite 69275

KIT- Spiked bumper (Long spikes)

$

$

Currently unavailable

Homelite A58543

BUMPER- (Short) (Not shown)

$

$

Not available

24

Homelite 83009

WASHER- Lock, 1/4

$8.49

$

Usually ships in 3-7 days

0

25

Homelite 81053

NUT- Hex, 1/4-20

$

$

Not available

26

Homelite 80053

SCREW- Flat, 1/4-20 x 3/4

$3.49

$

Usually ships in 3-7 days

0

27

Homelite 67669A

PLATE- Guide bar (inner)

$

$

Currently unavailable

28

Homelite 67670A

PLATE- Guide bar (outer)

$

$

Currently unavailable

29

Homelite A640744

COVER- Drivecase

$

$

Not available

30

Homelite 81235

NUT- 5/16-18

$

$

Not available

31

Homelite 556131

PIN- Adjusting

$

$

Currently unavailable

32

Homelite 82219

SCREW- 5/16-18 x 2-1/8

$

$

Not available

33

Homelite 640292

GUARD- Chain

$

$

Currently unavailable

34

Homelite 84099

WASHER- Flat, 3/8

$

$

Not available

35

Homelite 810892

NUT- Hex 3/8-16

$13.99

$

Usually ships in 3-7 days

0

36

Homelite 81192

NUT- Hex, 3/8-24 (5/8" clutch)
(Superseded to UP03654)

$

$

Not available

37

Homelite 64027

WASHER- Flat (5/8" clutch)

$

$

Currently unavailable

38

Homelite 56238A

COVER- (5/8' clutch)

$

$

Currently unavailable

39

Homelite 67441

SPRING- (5/8" clutch)

$

$

Not available

40

Homelite 585462A

SPIDER- (5/8" clutch)

$

$

Currently unavailable

41

Homelite 697541B

SHOE- Clutch (5/8" clutch)

$

$

Currently unavailable

42

Homelite 56132

WASHER- Thrust (5/8" clutch)

$

$

Not available

43

Homelite A65991

DRUM & HUB- (Rim type)

$

$

Currently unavailable

Homelite A68727A

DRUM & HUB

$

$

Currently unavailable

44

Homelite 65960

SPROCKET 404 pitch, 8 tooth
(Superseded to 65960A)

$

$

Not available

Homelite 67017

SPROCKET 1/2" pitch, 6 tooth

$

$

Not available

45

Homelite 65348

RACE- Inner

$

$

Not available

46

Homelite 65393

BEARING- Needle caged

$

$

Not available

47

Homelite A57341

SPROCKET & DRUM (open type) 404 pitch 8 tooth

$

$

Currently unavailable

Homelite A56299

7/16" pitch, 7 tooth

$

$

Currently unavailable

Homelite A56615

1/2" pitch, 7 tooth

$

$

Currently unavailable

48

Homelite 56230

BEARING- Needle

$

$

Not available

49

Homelite 56231

RACE- Inner

$

$

Not available

50

Homelite 56236

WASHER Thrust

$

$

Not available

51

Homelite 63893

WORM- Gear

$

$

Not available

52

Homelite A64073A

PUMP- Automatic oil (short stroke)

$

$

Not available

Homelite A67579

PUMP- Automatic oil (long stroke)

$

$

Currently unavailable

53

Homelite 59926

SEAL Felt
(Superseded to UP06982)

$6.49

$

In Stock, Qty 10

0

54

Homelite 59074

"O" RING

$

$

Not available

55

Homelite 64102A

SCREW- Cam

$

$

Not available

56

Homelite 59736

GASKET

$

$

Not available

57

Homelite 80919

SCREW-Pan hd., (4-40 x 1/4)

$

$

Not available

Homelite 59772

PLUG- (Not shown)

$

$

Not available

58

Homelite 80560

SCREW- Hex, 8-32 x 1/2

$

$

Not available

59

Homelite 80867

SCREW- Hex, 12-24 x 3/4

$4.99

$

Usually ships in 3-7 days

0

60

Homelite A69174

HANDLE BAR- Flush cut

$

$

Currently unavailable

Homelite A58398A

HANDLE BAR- Wrap around (Not shown)

$

$

Currently unavailable

Homelite A59922

HANDLE BAR- Wrap around (Not shown)

$

$

Currently unavailable

Homelite A64727

HANDLE BAR- Reversible bow (Not shown)

$

$

Currently unavailable

61

Homelite 83003

WASHER- Lock, 5/16
(Superseded to UP03791)

$

$

Not available

62

Homelite 80087

SCREW- Hex, 5/16-18 x 1-1/2

$

$

Not available

Homelite A94744

KIT- Clutch

$

$

Currently unavailable

63

Homelite 803612

SCREW- (3/4" Clutch)

$

$

Currently unavailable

64

Homelite 12021

WASHER- (3/4" Clutch)

$

$

Not available

65

Homelite A24921A

COVER- (3/4" Clutch)

$

$

Currently unavailable

66

Homelite 93289

SPRING- (3/4" Clutch)

$

$

Not available

67

Homelite 932881

SPIDER- (3/4" Clutch)

$

$

Not available

68

Homelite 932811

SHOE- (3/4" Clutch)

$

$

Currently unavailable

69

Homelite 94743

WASHER- Thrust (3/4 Clutch)

$

$

Not available
