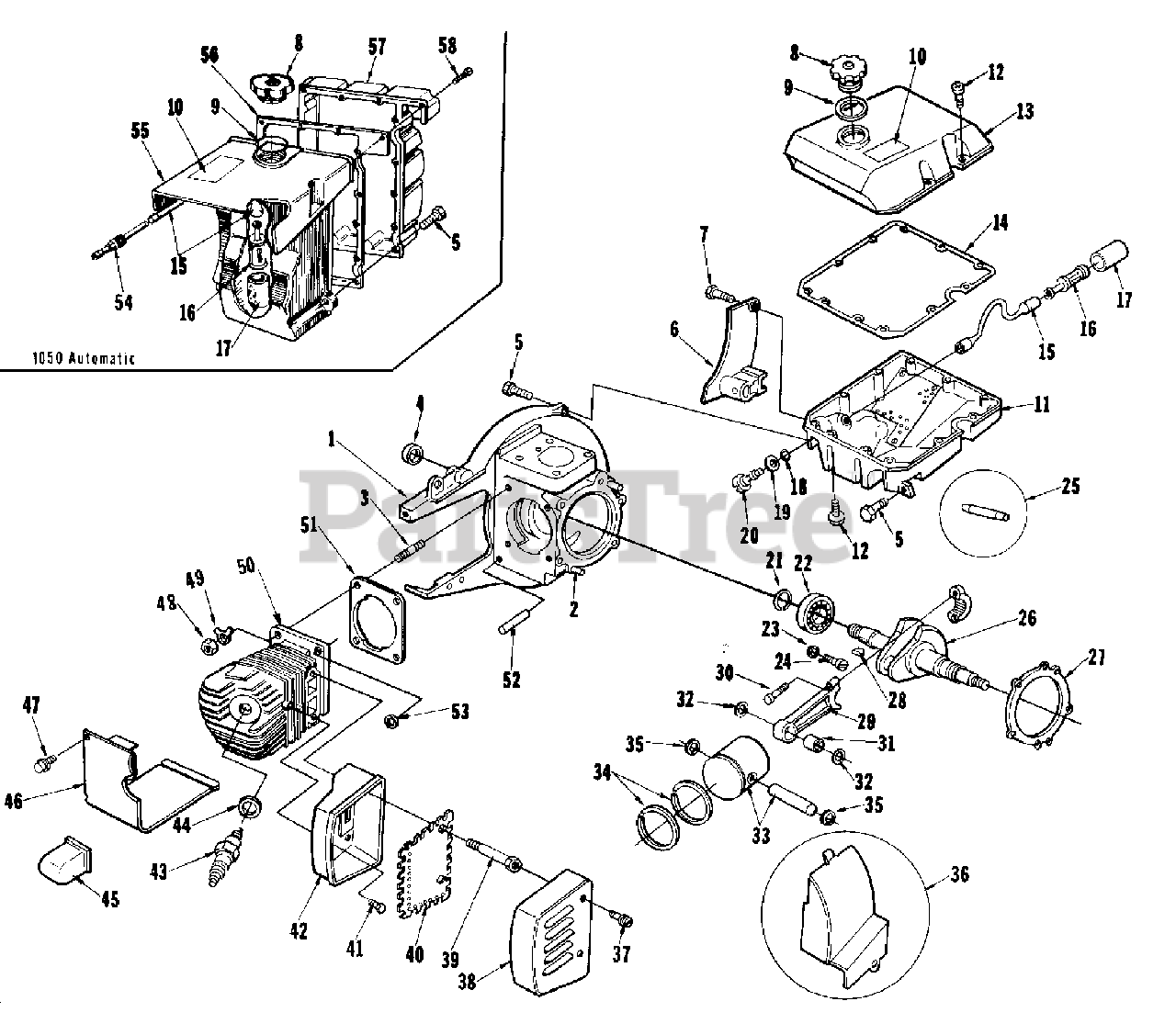

SUPER 1050 (UT-10139) - Homelite Chainsaw Engine Internals, Tanks & Muffler Parts Diagram

Chainsaw

Engine Internals, Tanks & Muffler Parts Diagram

  • Title

1

Homelite A64532

CRANKCASE- W/pins

$228.99

$

Usually ships in 3-7 days

0

2

Homelite 74332

PIN- Dowel

$

$

Not available

3

Homelite 727871

STUD

$

$

Currently unavailable

4

Homelite 58308B

SEAL
(Superseded to UP07021)

$

$

Not available

5

Homelite 80867

SCREW- Hex, 12-24 x 3/4

$4.99

$

Usually ships in 3-7 days

0

8

Homelite A65741A

CAP- Fuel tank

$

$

Not available

9

Homelite 65358

GASKET

$

$

Not available

Homelite 69451

VALVE- Vent (Not shown)

$

$

Not available

10

Homelite 69847

LABEL- Warning

$

$

Not available

15

Homelite 55805

FLEXIBLE LINE
(Superseded to UP03904)

$

$

Not available

16

Homelite A59251

FILTER ASSEMBLY
(Superseded to 592531A)

$11.99

$

Usually ships in 3-7 days

0

17

Homelite 592531

FILTER
(Superseded to UP06516)

$

$

Not available

21

Homelite 58319A

RING- Retaining

$

$

Not available

22

Homelite 58190S

BEARING- Ball
(Superseded to 58190)

$

$

Not available

23

Homelite 83061

WASHER- Lock

$

$

Not available

24

Homelite 192383

SCREW- Bearing retaining

$

$

Not available

25

Homelite A69062

ROLLERS- Set of 31

$

$

Currently unavailable

26

Homelite A64068

CRANKSHAFT

$705.99

$

Usually ships in 3-7 days

0

27

Homelite 63356

GASKET

$

$

Not available

28

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

29

Homelite A69170

CONNECTING ROD

$221.99

$

Usually ships in 3-7 days

0

30

Homelite 80345

SCREW- 10-32 x 5/8

$

$

Not available

31

Homelite 59606

BEARING- Needle

$

$

Not available

32

Homelite 68719

WASHER- Thrust

$

$

Not available

33

Homelite A69189A

PISTON & PIN

$

$

Not available

34

Homelite 56291

PISTON RING

$

$

Not available

35

Homelite 64743

RING- Retaining

$

$

Not available

36

Homelite 631031

EXCHANGER- Heat (optional)

$

$

Currently unavailable

37

Homelite 80837

SCREW- Hex, 12-24 x 3/8
(Superseded to 80676)

$

$

Not available

38

Homelite A599632

CAP- Muffler

$

$

Currently unavailable

39

Homelite 59982B

STUD- Muffler

$

$

Currently unavailable

40

Homelite 59978A

BAFFLE- Muffler

$

$

Currently unavailable

41

Homelite 80402

SCREW- Hex, 1/4-20 x 5/8
(Superseded to UP07182)

$

$

Not available

42

Homelite A599272

BODY- Muffler

$

$

Not available

43

Homelite 63547S

SPARK PLUG

$9.99

$

Usually ships in 3-7 days

0

44

Homelite 25038

GASKET

$

$

Not available

45

Homelite 63735A

CAP- Spark plug

$

$

Not available

46

Homelite A637361

CYLINDER SHIELD

$

$

Not available

47

Homelite 808691

SCREW- Hex , 10-24 x 3/8
(Superseded to UP04149)

$

$

Not available

48

Homelite 25412

NUT- Hex 5/16-24

$

$

Not available

49

Homelite 83002

WASHER- Lock
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

50

Homelite A69712A

CYLINDER
(Superseded to A69712B)

$

$

Not available

51

Homelite 64453

GASKET

$

$

Not available

52

Homelite 55290

SLEEVE- Insulating

$

$

Not available

53

Homelite 83002

WASHER- Lock, 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

54

Homelite 58364

FITTING- Fuel outlet

$

$

Not available

55

Homelite 581724

TANK- fuel

$

$

Currently unavailable

56

Homelite 58367

GASKET- Fuel tank cover

$

$

Currently unavailable

57

Homelite 599202

COVER- Fuel tank

$

$

Currently unavailable

58

Homelite 80513

SCREW- Rd., 6 x 1/2

$

$

Not available

Homelite A635181A

ACCESSORIES (Not shown) SPARK ARRESTOR

$

$

Currently unavailable
