Sulky - Exmark Sulky (SN: 850000 - 919999) (2010) Decals 1 Parts Diagram

Sulky

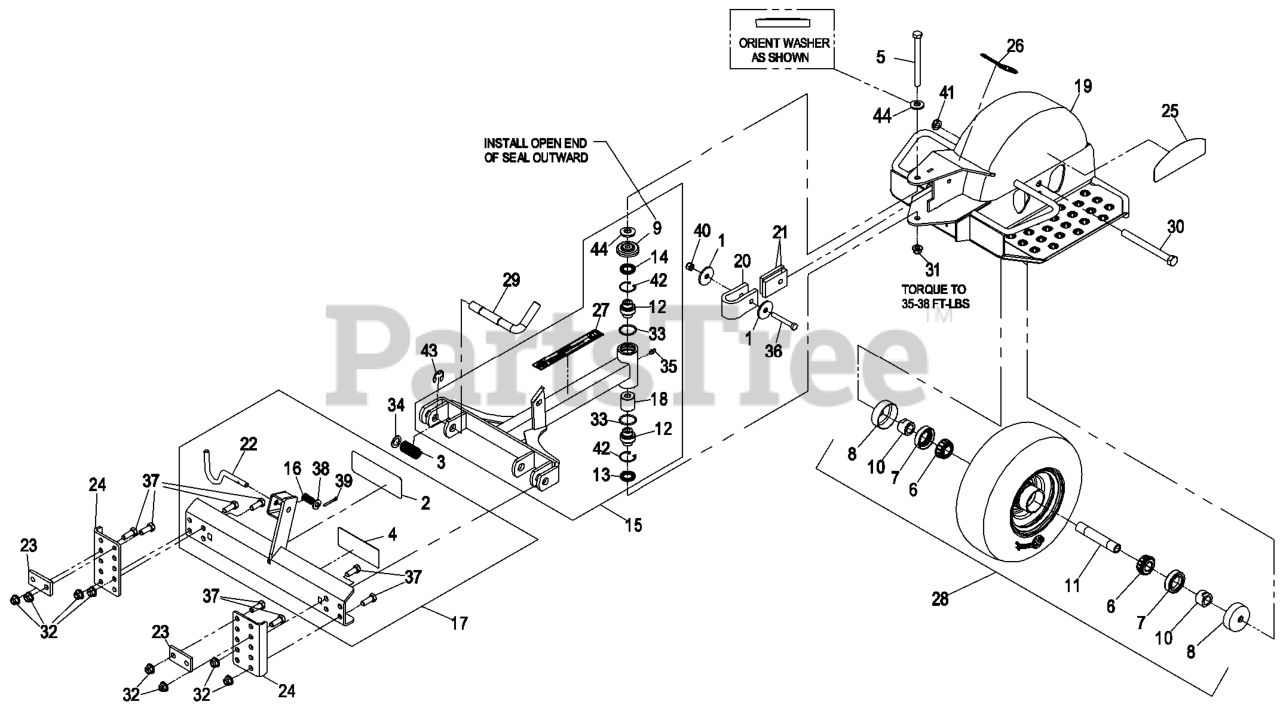

Decals 1 Parts Diagram

  • Title

1

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-303517

DECAL,BELT DRIVE

Note: One of each decal is shipped loose to be placed on Turf Tracer and Viking Hydro mowers only.

$9.49

$

In Stock, only 2 left!

0

3

Exmark 1-373054

SPRING,HITCH RELEASE

$13.99

$

In Stock, only 1 left!

0

4

Exmark 1-403143

DECAL,SULKY WARNING

Note: One of each decal is shipped loose to be placed on Turf Tracer and Viking Hydro mowers only.

$5.49

$

In Stock, only 1 left!

0

5

Exmark 323-38

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

6

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

7

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

8

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

9

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

0

10

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

11

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$19.99

$

In Stock, Qty 15

0

12

Exmark 103-3504

BEARING-SPHERICAL

$26.99

$

In Stock, Qty 20+

0

13

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

14

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 7

0

15

Exmark 103-9589

ASM,PULL ARM W/BRGS-DECAL

Note: Includes items 5, 31, & 44.

$348.99

$

Usually ships in 3-6 days

0

16

Exmark 103-6643

SPRING,LOCK PIN

$3.49

$

Usually ships in 3-6 days

0

17

Exmark 103-6646

ASM,PULL FRAME

Note: Does not include screw item # 37.

$331.99

$

Usually ships in 3-6 days

0

18

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 103-9590

ASM,SULKY FRAME W/DECALS

$576.99

$

Usually ships in 3-6 days

0

20

Exmark 103-6652

126-9101
(Superseded to 126-9101)

$5.99

$

In Stock, only 2 left!

0

21

Exmark 103-6654

PAD,STOP

$1.99

$

Usually ships in 3-6 days

0

22

Exmark 103-6656

PIN LATCH

$8.99

$

Usually ships in 3-6 days

0

23

Exmark 103-6663

PLATE,BACK-UP (PLATED)

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 103-6675-01

PLATE,ADAPTER

$40.99

$

In Stock, only 4 left!

0

25

Exmark 109-1117

DECAL,STANDON

$

$

Not available

26

Exmark 103-8845

DECAL,EXMARK

$9.99

$

Usually ships in 3-6 days

0

27

Exmark 103-9141

DECAL,SULKY

$

$

Not available

28

Exmark 103-9591

ASM,WHEEL AND BEARING

Note: Includes screw item #30 and nut item #41. For Operator's over 250 lbs, it is recommended to use pneumatic tire assembly, P/N 103-3798

$289.99

$

In Stock, Qty 15

0

29

Exmark 103-9169

PIN,PULL ARM (PLATED)

$15.99

$

Usually ships in 3-6 days

0

30

Exmark 103-9508

SCREW-HH

$19.99

$

In Stock, only 1 left!

0

31

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 11

0

34

Exmark 107-3041

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

35

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

36

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

37

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

38

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

42

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 9

0

43

Exmark 32120-19

E-RING

$2.99

$

In Stock, Qty 10

0

44

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0
