Sulky - BCS America Transport Sulky Attachment (1995 & After) Transport Sulky Parts Diagram

Transport Sulky Attachment

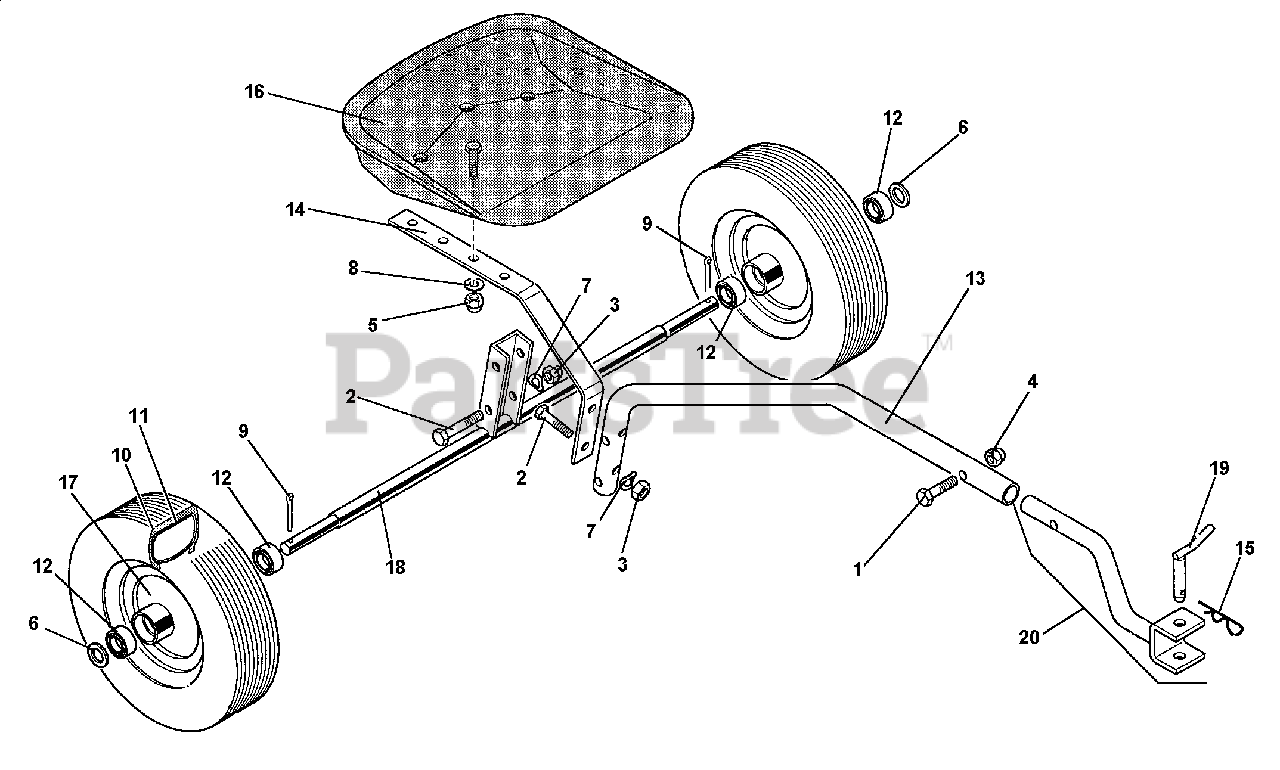

Transport Sulky Parts Diagram

  • Title

1

BCS America 311.12215

Screw, M10 X 60

Note:

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 311.12216

Screw, M10 X 65

Note:

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 312.11100

Nut, M10

Note:

$1.49

$

In Stock, only 3 left!

0

4

BCS America 312.41100

Nut, Self Locking M10

Note:

$1.49

$

In Stock, only 2 left!

0

5

BCS America 312.41120

Nut, Self Locking M12

Note:

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 314.14260

Washer, Flat

Note:

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.23105

Washer, Lock 10.5

Note:

$1.49

$

In Stock, Qty 5

0

8

BCS America 314.23130

Washer, Lock M13

Note:

$1.49

$

In Stock, only 3 left!

0

9

BCS America 341.10051

Cotter Pin

Note:

$1.99

$

Usually ships in 5-8 days

0

10

BCS America 392.21203

Tire

Note:

$114.99

$

Usually ships in 5-8 days

0

11

BCS America 394.14008

Tube 4.00 X 8

Note:

$34.99

$

Usually ships in 5-8 days

0

12

BCS America 552.42390

Bushing

Note:

$11.99

$

Usually ships in 5-8 days

0

13

BCS America 561.48682

Tube

Note:

$276.99

$

Usually ships in 5-8 days

0

14

BCS America 565.48699

Seat Spring

Note:

$466.99

$

Usually ships in 5-8 days

0

15

BCS America 580.02052

Pin

Note:

$1.99

$

In Stock, only 3 left!

0

16

BCS America 580.48791

Padded Seat

Note:

$205.99

$

Usually ships in 5-8 days

0

17

BCS America 590.02955

Sulky Wheel

Note:

$267.99

$

Usually ships in 5-8 days

0

18

BCS America 590.48688

Axle

Note:

$

$

Currently unavailable

19A

BCS America 590.48697

Pin - 700 Series Tractors

Note: 700 Series Tractors

$38.99

$

Usually ships in 5-8 days

0

19B

BCS America 590.42768

Pin - 800/900 Series Tractors

Note: 800/900 Series Tractors

$37.99

$

Usually ships in 5-8 days

0

20A

BCS America 922.59500

Curved Coupler - 700 Series Tractors

Note: 700 Series Tractors

$82.50

$

Usually ships in 5-8 days

0

20B

BCS America 922.47720

Curved Coupler - 800 Series Tractors

Note: 800 Series Tractors

$87.00

$

Usually ships in 5-8 days

0

20C

BCS America 922.59512

Curved Coupler - 900 Series Tractors

Note: 900 Series Tractors

$100.50

$

Usually ships in 5-8 days

0
