Sulky - BCS America Transport Sulky Attachment (1994 & Before) Transport Sulky w/ V-Style Draw Bar Parts Diagram

Transport Sulky Attachment

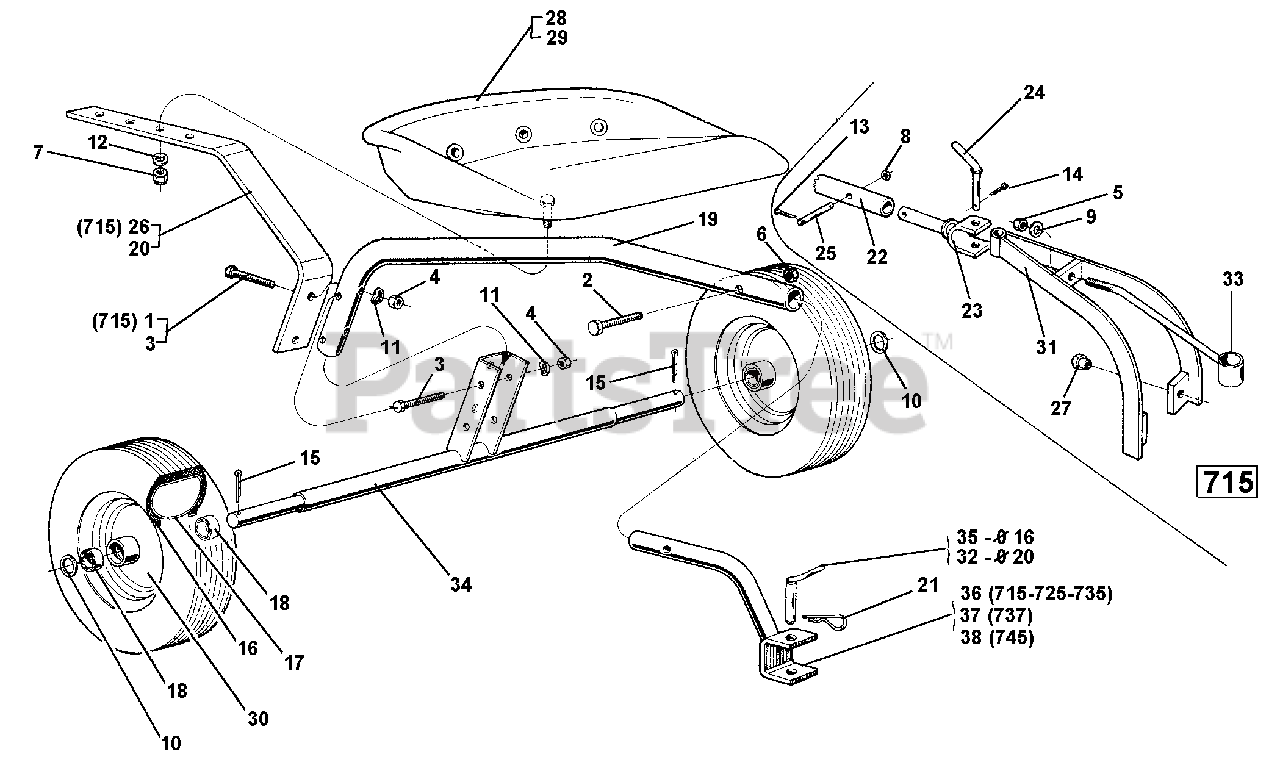

Transport Sulky w/ V-Style Draw Bar Parts Diagram

  • Title

1

BCS America 311.11212

SCREW TE M10 X 25

$

$

Currently unavailable

2

BCS America 311.12215

SCREW M10 X 60

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 311.12216

SCREW TE M10 X 65 UNI 5739-8G

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 3 left!

0

5

BCS America 31211140

NUT M14 UNI 5588-5S

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

7

31241120

NUT, SELF LOCKING M12

$

$

Not available

8

BCS America 31411130

WASHER, FLAT 13

$0.99

$

Usually ships in 5-8 days

0

9

BCS America 31411150

WASHER, FLAT 15

$1.49

$

Usually ships in 5-8 days

0

10

BCS America 31414260

WASHER, FLAT 26

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

12

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, Qty 5

0

13

BCS America 34110040

PIN, COTTER A 4 X 20 UNI 1336

$0.99

$

Usually ships in 5-8 days

0

14

BCS America 341.10042

PIN, COTTER A 4 X 30 UNI 1336

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 341.10051

PIN, COTTER A 5 X 40 UNI 1336

$1.99

$

Usually ships in 5-8 days

0

16

BCS America 392.21203

TIRE FOR CAR 100 X 203

$114.99

$

Usually ships in 5-8 days

0

17

BCS America 394.14008

TUBE 4.00 X 8

$34.99

$

Usually ships in 5-8 days

0

18

BCS America 55242390

BUSHING

$11.99

$

Usually ships in 5-8 days

0

19

BCS America 561.48682

CAR TUBE

$276.99

$

Usually ships in 5-8 days

0

20

BCS America 565.48699

SEAT SPRING

$466.99

$

Usually ships in 5-8 days

0

21

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

22

BCS America 580.42383

SEAT FRAME

$

$

Currently unavailable

23

BCS America 580.42384

CONNECTION FOR CAR

$

$

Currently unavailable

24

BCS America 580.42385

HANDLE

$

$

Currently unavailable

25

BCS America 580.42386

PIN

$

$

Currently unavailable

26

BCS America 580.42388

CONNECTION FOR SEAR

$

$

Currently unavailable

27

BCS America 580.42809

NUT M12 X 1.25

$2.99

$

Usually ships in 5-8 days

0

28

BCS America 580.48791

PADDED SEAT

$205.99

$

Usually ships in 5-8 days

0

29

BCS America 590.02078

SEAR FOR CAR

$

$

Currently unavailable

30

BCS America 590.02955

SULKY WHEEL

$267.99

$

Usually ships in 5-8 days

0

31

BCS America 59042380

V-DRAWBAR

$

$

Not available

32

BCS America 590.42768

PIN

$37.99

$

Usually ships in 5-8 days

0

33

BCS America 590.43798

TIEROD, BENT, FOR 715

$

$

Currently unavailable

34

BCS America 590.48688

AXLE

$

$

Currently unavailable

35

BCS America 590.48697

PIN

$38.99

$

Usually ships in 5-8 days

0

36

BCS America 922.43791

CURVED COUPLING 725-735

$

$

Currently unavailable

37

BCS America 922.4772

CURVED COUPLING 737

$

$

Currently unavailable

38

BCS America 922.49767

CURVED COUPLING 745

$

$

Currently unavailable
