STZ52-20KH - Scag STZ 52" Zero-Turn Mower, 20hp Kohler CUTTER DECK SMZ-52 Parts Diagram

STZ 52" Zero-Turn Mower, 20hp Kohler

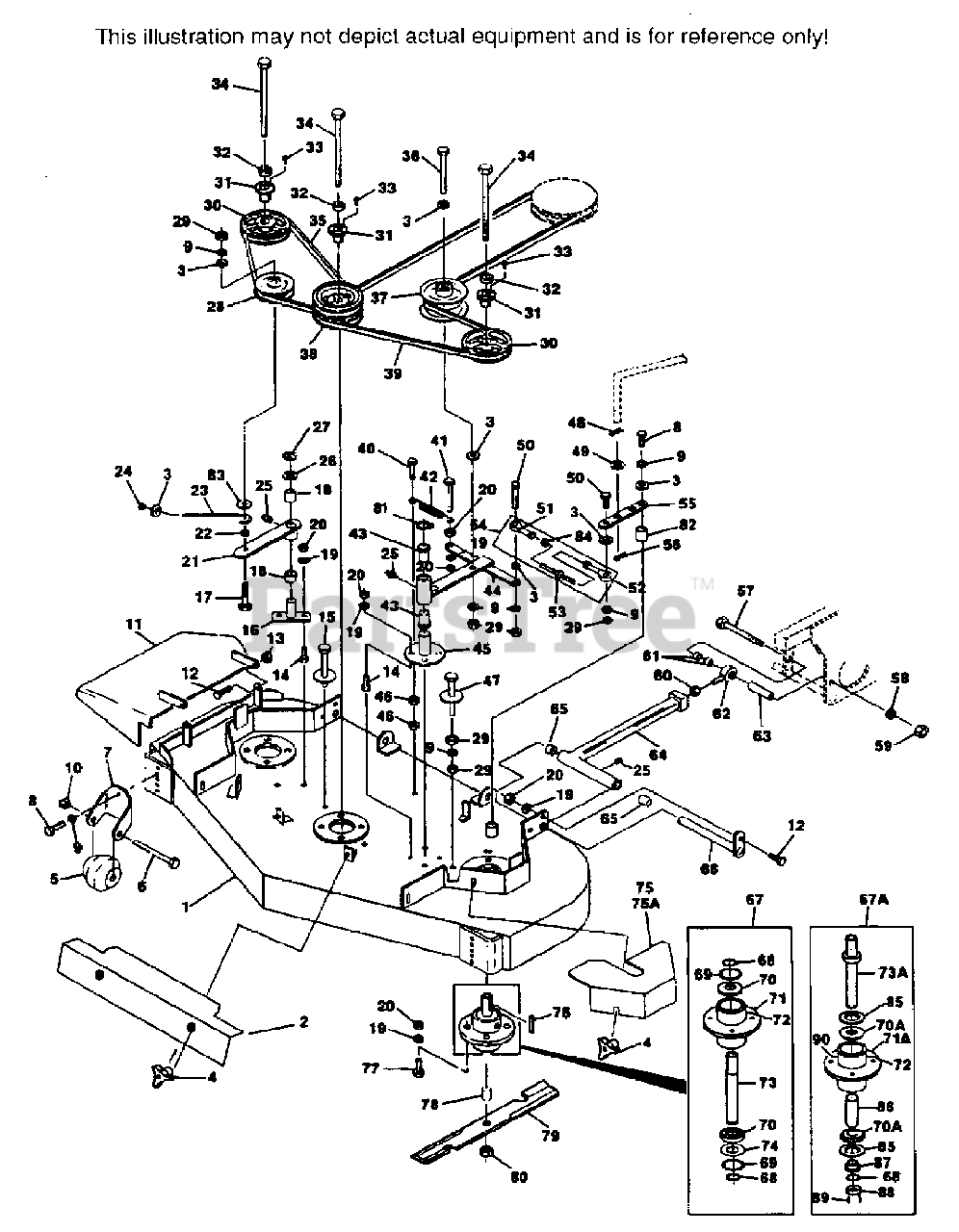

CUTTER DECK SMZ-52 Parts Diagram

  • Title

1

Scag 46442

CUTTER DECK(INCLUDES DECALS)

$

$

Not available

2

Scag 42931

BELT COVER - FRONT

$118.99

$

Usually ships in 2-12 days

0

3

FLAT WASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

5

Scag 48584

ANTI-SCALP WHEEL

$13.99

$

Usually ships in 2-12 days

0

6

HEX HEAD BOLT, 5/8-11 X 4-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 42882

ANTI-SCALP WHEEL BRACKET
(Superseded to 461086)

$67.99

$

Usually ships in 2-12 days

0

8

HEX HEAD BOLT, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

LOCKWASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

HEX NUT, 5/8-11 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

Scag 45331

DISCHARGE CHUTE
(Superseded to 461293)

$84.99

$

Usually ships in 2-12 days

0

12

HEX HEAD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

Scag 48350

BELT GUIDE
(Superseded to 48350-01)

$29.99

$

Usually ships in 2-12 days

0

16

Scag 45037

IDLER PIVOT BASE

$31.99

$

Usually ships in 2-12 days

0

17

HEX HEAD BOLT, 3/8-16 X 2-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

Scag 48100-05

BUSHING

$0.99

$

In Stock, only 3 left!

0

19

LOCKWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

21

Scag 46081

IDLER ARM(INCLUDES BUSHINGS & GREASE FTG.)

$47.99

$

Usually ships in 2-12 days

0

22

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

23

Scag 43028

"J" ROD

$4.99

$

In Stock, only 2 left!

0

24

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

26

Scag 04041-08S

FLAT WASHER, 3/4 SPECIAL

$0.99

$

In Stock, Qty 20+

0

27

Scag 04050-02

RETAINING RING, 3/4 EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

28

Scag 48181

PULLEY, IDLER

$26.99

$

In Stock, Qty 14

0

29

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

Scag 48127

PULLEY(INCLUDES ITEMS 31 & 33)
(Superseded to 482744)

$

$

Not available

31

Scag 48141

TAPERED HUB

$30.99

$

In Stock, only 1 left!

0

32

Scag 43038

SPACER
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

33

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2

$15.99

$

In Stock, Qty 20+

0

35

Scag 48285

BELT, RH BLADE DRIVE

$41.99

$

Usually ships in 2-12 days

0

36

HEX HEAD BOLT, 3/8-16 X 3-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

Scag 48550

PULLEY, IDLER - CUTTER ENGAGEMENT
(Superseded to 483210)

$56.99

$

In Stock, Qty 6

0

38

Scag 48412

PULLEY, DOUBLE
(Superseded to 48923)

$113.99

$

In Stock, only 1 left!

0

39

Scag 48296

BELT, BLADE DRIVE

$103.99

$

In Stock, only 1 left!

0

40

HEX HEAD BOLT, 1/4-20 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

HEX HEAD BOLT, 5/16-18 X 4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

42

Scag 48052

SPRING, IDLER TENSION

$6.99

$

Usually ships in 2-12 days

0

43

Scag 48100-02

BUSHING

$3.99

$

In Stock, only 2 left!

0

44

Scag 46387

IDLER ARM(INCLUDES BUSHINGS & GREASE FTG.)

$

$

Not available

45

Scag 45329

IDLER PIVOT BASE

$40.99

$

Usually ships in 2-12 days

0

46

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

47

Scag 45351

BELT GUIDE

$23.99

$

Usually ships in 2-12 days

0

48

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

FLAT WASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50

HEX HEAD BOLT, 3/8-16 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

Scag 48464

BALL JOINT - RH(SILVER)

$23.99

$

In Stock, only 1 left!

0

52

Scag 48544

BALL JOINT - LH(GOLD)

$27.99

$

Usually ships in 2-12 days

0

53

Scag 48590

LINK, TURNBUCKLE

$33.99

$

Usually ships in 2-12 days

0

54

Scag 46388

TURNBUCKLE ASSEMBLY

$127.99

$

Usually ships in 2-12 days

0

55

Scag 421107

DECLUTCH LINK, CUTTER ENGAGEMENT

$56.99

$

In Stock, only 1 left!

0

56

Scag 04062-01

HAIR PIN, 1/8" DIA.

$0.99

$

In Stock, Qty 20+

0

57

HEX HEAD BOLT, 1/2-13 X 5-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

58

LOCKWASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

59

HEX NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

60

HEX NUT, 1/2-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

61

Scag 43041

SPACER

$5.49

$

Usually ships in 2-12 days

0

62

Scag 48542

BALL JOINT

$41.99

$

In Stock, only 3 left!

0

63

Scag 43193

SPACER

$12.99

$

Usually ships in 2-12 days

0

64

Scag 46389

PUSH ARM(INCLUDES BUSHINGS & FITTING)

$

$

Not available

65

Scag 48100-06

BUSHING

$1.49

$

In Stock, only 1 left!

0

66

Scag 45332

PUSH ARM SHAFT
(Superseded to 451240)

$53.99

$

In Stock, Qty 20+

0

67

Scag 46020

CUTTER SPINDLE ASSEMBLY(INCLUDES 68-74)
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

67A

Scag 46400

CUTTER SPINDLE ASSEMBLY COMPLETE, TAPER

$

$

Not available

68

Scag 04050-04

RETAINING RING, 1" EXTERNAL INVERTED

$1.99

$

In Stock, Qty 5

0

69

Scag 04050-07

RETAINING RING, 2-7/16" INTERNAL BASIC

$3.99

$

Usually ships in 2-12 days

0

70

Scag 48101-02

BEARING, CUTTER SPINDLE

$25.99

$

Usually ships in 2-12 days

0

70A

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$24.99

$

In Stock, Qty 20+

0

71

Scag 41001

SPINDLE HOUSING

$

$

Not available

71A

Scag 41007

SPINDLE HOUSING, TAPERED SPINDLE
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

72

Scag 48114-02

GREASE FITTING

$1.99

$

In Stock, only 3 left!

0

73

Scag 43001-02

SPINDLE SHAFT

$53.99

$

In Stock, only 3 left!

0

73A

Scag 45391

SPINDLE SHAFT, TAPERED SPINDLE
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

74

Scag 04041-02

WASHER, 1-5/16 X 2-7/16 X 16 GA.

$22.99

$

In Stock, only 2 left!

0

75

Scag 42890

BELT COVER - RH

$117.99

$

Usually ships in 2-12 days

0

75A

Scag 42889

BELT COVER - LH

$117.99

$

In Stock, only 1 left!

0

76

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

77

HEX HEAD BOLT, 5/16-18 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

78

Scag 43189

SPACER - USE WITH BALL BEARING SPINDLE

$6.49

$

Usually ships in 2-12 days

0

78

Scag 43235

SPACER-USE WITH TAPER BEARING SPINDLE
(Superseded to 43591)

$11.99

$

Usually ships in 2-12 days

0

79

Scag 48108

CUTTER BLADE
(Superseded to 481707)

$23.99

$

In Stock, Qty 20+

0

80

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

81

Scag 04050-05

RETAINING RING 1 1/8" EXT. E

$0.99

$

In Stock, Qty 20+

0

82

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

83

Scag 04041-12

3/8" FLAT WASHER, 3/8 X 1 1/2 X .06

$0.99

$

In Stock, Qty 9

0

84

HEX NUT 3/8-24 UNF

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

85

Scag 48681

SEAL, CUTTER SPINDLE, TAPERED
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

86

Scag 43218

SPACER, TAPERED SPINDLE

$8.99

$

Usually ships in 2-12 days

0

87

Scag 43217

BUSHING, TAPERED SPINDLE

$15.99

$

Usually ships in 2-12 days

0

88

Scag 43201

1/4" BLADE SPACER, TAPERED SPINDLE

$20.99

$

Usually ships in 2-12 days

0

89

ROLL PIN, 1/8 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

90

Scag 48677

RELIEF FITTING, TAPERED SPINDLE

$9.49

$

Usually ships in 2-12 days

0
