STZ52-20KH - Scag STZ 52" Zero-Turn Mower, 20hp Kohler CUTTER DECK CONTROLS Parts Diagram

STZ 52" Zero-Turn Mower, 20hp Kohler

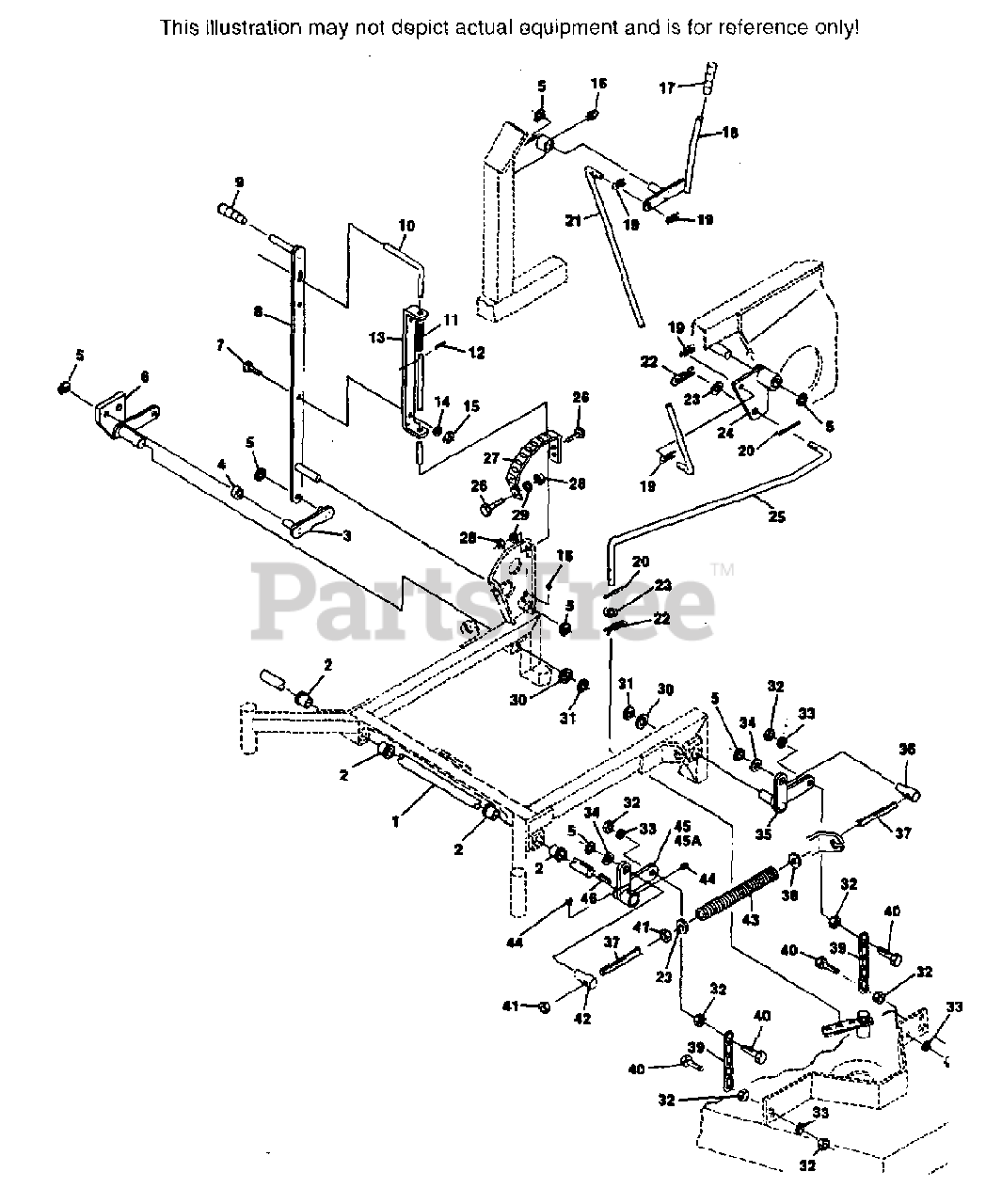

CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 43186

SHAFT, CUTTER DECK
(Superseded to 45427)

$

$

Not available

2

Scag 48100-05

BUSHING

$0.99

$

In Stock, only 3 left!

0

3

Scag 45344

LIFT LINK

$

$

Not available

4

Scag 43180

BUSHING

$10.99

$

Usually ships in 2-12 days

0

5

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

6

Scag 45310

BELLCRANK, LIFT - RIGHT REAR

$

$

Not available

7

HEX HEAD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

8

Scag 46384

HEIGHT ADJUSTMENT LEVER(INCLUDES GRIP)

$120.99

$

Usually ships in 2-12 days

0

9

Scag 48093

GRIP, LIFT LEVER

$1.99

$

In Stock, only 1 left!

0

10

Scag 44065

ROD, CUTTER DECK LOCK

$37.99

$

Usually ships in 2-12 days

0

11

Scag 48053

SPRING, DECK LIFT INDEX

$5.99

$

Usually ships in 2-12 days

0

12

Scag 04060-01

ROLL PIN, 5/32 X 3/4

$0.99

$

Usually ships in 2-12 days

0

13

Scag 42887

LOCK ROD GUIDE

$31.99

$

Usually ships in 2-12 days

0

14

LOCKWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

17

Scag 48144

GRIP, BLADE CLUTCH LEVER

$1.49

$

Usually ships in 2-12 days

0

18

Scag 46385

LEVER, CUTTER ENGAGEMENT(INCLUDES GRIP)

$

$

Not available

19

Scag 04062-02

HAIR PIN, 1/16" DIA.

$0.99

$

In Stock, Qty 20+

0

20

Scag 04061-01

COTTER PIN, 3/32 X 1

$0.99

$

In Stock, Qty 11

0

21

Scag 44060

ROD, CUTTER ENGAGEMENT - UPPER

$

$

Not available

22

Scag 04062-01

HAIR PIN, 1/8" DIA.

$0.99

$

In Stock, Qty 20+

0

23

FLAT WASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

Scag 45307

BELLCRANK, CUTTER ENGAGEMENT
(Superseded to 45037)

$31.99

$

Usually ships in 2-12 days

0

25

Scag 44061

ROD, CUTTER ENGAGEMENT - LOWER

$

$

Not available

26

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

27

Scag 42828

STRIP, HEIGHT ADJUSTMENT

$135.99

$

Usually ships in 2-12 days

0

28

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

29

LOCKWASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

Scag 04041-08S

FLAT WASHER, 3/4 SPECIAL

$0.99

$

In Stock, Qty 20+

0

31

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

32

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

33

LOCKWASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

FLAT WASHER, 5/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

35

Scag 45313

BELLCRANK, LIFT - LEFT REAR

$

$

Not available

36

Scag 43167

SWIVEL JOINT - RH

$44.99

$

Usually ships in 2-12 days

0

37

Scag 04004-12

ADJUSTMENT STUD

$45.99

$

Usually ships in 2-12 days

0

38

Scag 04040-10

FLAT WASHER, 5/8 ID

$0.99

$

In Stock, Qty 11

0

39

Scag 48540

CHAIN
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

40

HEX HEAD BOLT, 3/8-16 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

HEX NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

42

Scag 43168

SWIVEL JOINT - LH

$46.99

$

Usually ships in 2-12 days

0

43

Scag 48546

SPRING, DECK LIFT

$108.99

$

Usually ships in 2-12 days

0

44

Scag 04012-03

SETSCREW, 5/16-18 X 1/4

$1.49

$

Usually ships in 2-12 days

0

45

Scag 45312

BELLCRANK, LIFT - LEFT FRONT
(Superseded to 45427)

$

$

Not available

45A

Scag 45311

BELLCRANK, LIFT - RIGHT FRONT
(Superseded to 45426)

$

$

Not available

46

Scag 04063-17

KEY, 3/16 X 3/16 X 1"

$0.99

$

Usually ships in 2-12 days

0

?47

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 9

0
