STZ52-20KH - Scag STZ 52" Zero-Turn Mower, 20hp Kohler BRAKE AND STEERING CONTROLS Parts Diagram

STZ 52" Zero-Turn Mower, 20hp Kohler

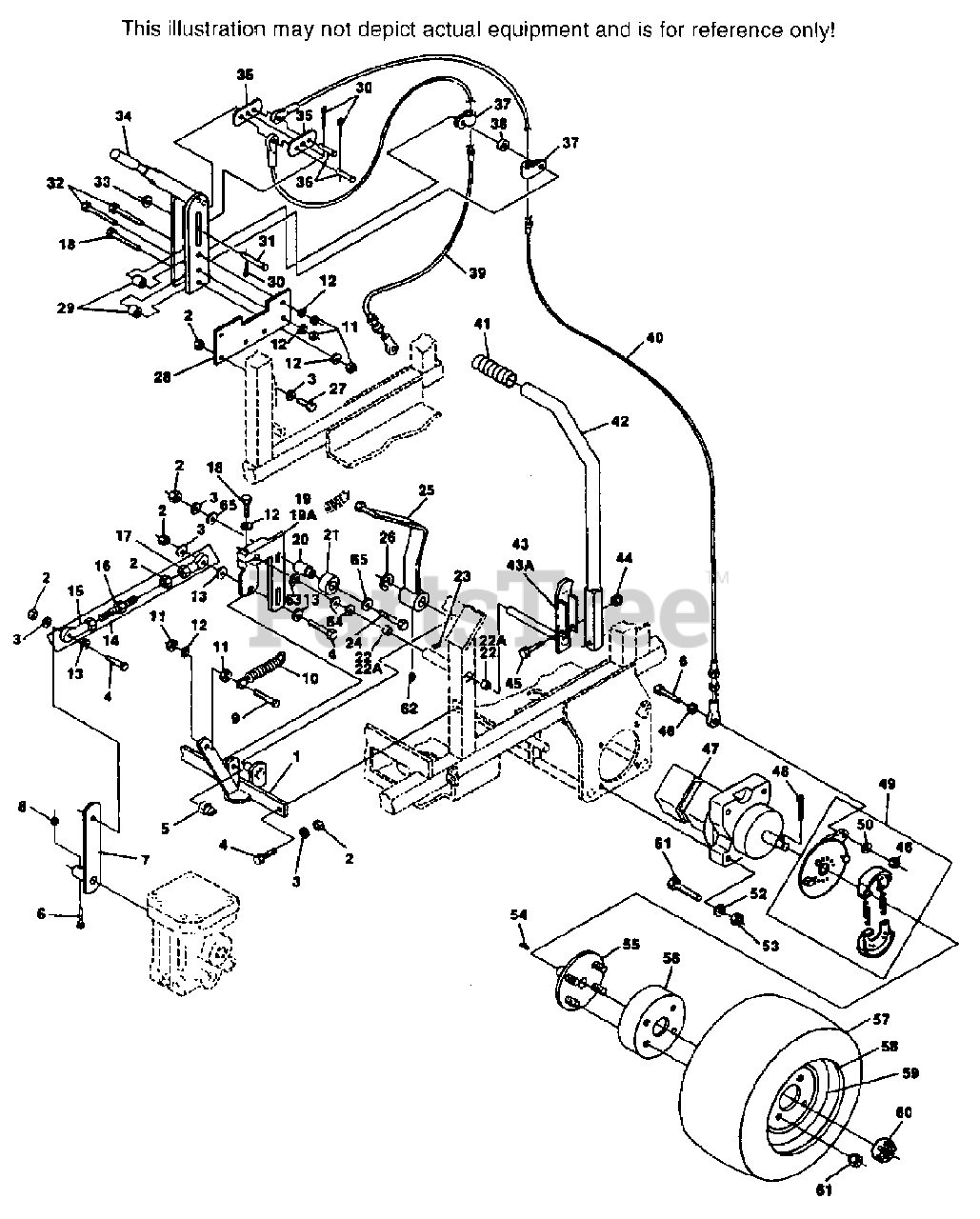

BRAKE AND STEERING CONTROLS Parts Diagram

  • Title

1

Scag 45319

NEUTRAL CONTROL

$

$

Not available

2

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

3

LOCKWASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

HEX HEAD BOLT, 3/8-16 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

Scag 48021

SWITCH, NEUTRAL

$33.99

$

Usually ships in 2-12 days

0

6

HEX HEAD BOLT, 1/4-20 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 45345

LEVER, PUMP CONTROL

$

$

Not available

8

HEX NUT, 1/4-20 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

HEX HEAD BOLT, 5/16-18 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

Scag 48051

SPRING, NEUTRAL

$5.99

$

In Stock, only 2 left!

0

11

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

LOCKWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

Scag 04040-05

FLAT WASHER, 3/8

$0.99

$

In Stock, only 4 left!

0

14

Scag 46421

TURNBUCKLE ASSEMBLY

$98.99

$

Usually ships in 2-12 days

0

15

Scag 48544

BALL JOINT, LH THREAD(GOLD)

$27.99

$

Usually ships in 2-12 days

0

16

Scag 48673

LINK, TURNBUCKLE

$43.99

$

In Stock, only 4 left!

0

17

Scag 48464

BALL JOINT, RH THREAD(SILVER)

$23.99

$

In Stock, only 1 left!

0

18

HEX HEAD BOLT, 5/16-18 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

Scag 45346

LEVER, PUMP TRANSFER - RH

$

$

Not available

19A

Scag 45347

LEVER, PUMP TRANSFER - LH

$

$

Not available

20

Scag 43178

SPACER, NEUTRAL BEARING

$

$

Not available

21

Scag 48224

BEARING, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

22

Scag 48100-06

BUSHING - LH

$1.49

$

In Stock, only 1 left!

0

22A

Scag 48100-05

BUSHING - RH

$0.99

$

In Stock, only 3 left!

0

23

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

24

HEX HEAD BOLT, 3/8-16 X 2-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

Scag 46337

NEUTRAL CAM(INCLUDES GREASE FTG.)

$40.99

$

Usually ships in 2-12 days

0

26

Scag 04050-01

RETAINING RING, 5/8 EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

27

HEX HEAD BOLT, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

28

Scag 42884

BRAKE EXTENSION BAR

$

$

Not available

29

Scag 48574-01

SPACER

$

$

Not available

30

Scag 48574-09

COTTER PIN

$

$

Not available

?30A

Scag 48574-02

COTTER PIN

$1.49

$

Usually ships in 2-12 days

0

31

Scag 48574-03

PIN

$

$

Not available

32

HEX HEAD BOLT, 5/16-18 X 2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

33

Scag 48574-04

WASHER

$

$

Not available

34

Scag 48574

BRAKE LEVER ASSEMBLY, COMPLETE

$236.99

$

Usually ships in 2-12 days

0

35

Scag 48574-05

EQUALIZER

$

$

Not available

36

Scag 48574-06

PIN

$

$

Not available

37

Scag 48574-07

CLAMP

$

$

Not available

38

Scag 48574-08

SPACER

$

$

Not available

39

Scag 48549

BRAKE CABLE - RH

$148.99

$

Usually ships in 2-12 days

0

40

Scag 48548

BRAKE CABLE - LH

$136.99

$

Usually ships in 2-12 days

0

41

Scag 48093

GRIP, CONTROL HANDLE

$1.99

$

In Stock, only 1 left!

0

42

Scag 46390

CONTROL HANDLE(INCLUDES GRIP)

$

$

Not available

43

Scag 45349

CONTROL LEVER - RH

$62.99

$

Usually ships in 2-12 days

0

43A

Scag 45348

CONTROL LEVER - LH
(Superseded to 45898)

$71.99

$

Usually ships in 2-12 days

0

44

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

HEX HEAD BOLT, 5/16-18 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

46

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

47

Scag 48439

MOTOR, WHITE

$2536.99

$

Usually ships in 2-12 days

0

48

COTTER PIN, 5/32 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

Scag 48461

PARKING BRAKE ASSEMBLY

$318.99

$

Usually ships in 2-12 days

0

50

LOCKWASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

HEX HEAD BOLT, 1/2-13 X 2-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

52

LOCKWASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

53

HEX NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

54

Scag 04063-16

KEY, 5/16 X 5/16 X 15/16

$1.99

$

Usually ships in 2-12 days

0

55

Scag 46332

WHEEL HUB ASSEMBLY
(Superseded to 46929)

$178.99

$

In Stock, only 1 left!

0

56

Scag 48513

BRAKE DRUM

$97.99

$

Usually ships in 2-12 days

0

57

Scag 48554

WHEEL ASSEMBLY

$429.99

$

Usually ships in 2-12 days

0

58

Scag 48554-01

TIRE ONLY

$339.99

$

Usually ships in 2-12 days

0

59

Scag 48416-04

RIM ONLY

$298.99

$

Usually ships in 2-12 days

0

60

Scag 04027-03

HEX CASTLE NUT
(Superseded to 48680)

$17.99

$

In Stock, only 4 left!

0

61

Scag 48004-06

NUT AND BOLT

$

$

Not available

62

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 9

0

63

Scag 04050-02

RETAINING RING, 3/4 EXT "E"

$0.99

$

In Stock, Qty 7

0

64

Scag 04041-08

FLAT WASHER

$0.99

$

In Stock, Qty 20+

0

65

FLAT WASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
