STZ-20KH - Scag STZ Zero-Turn Mower, 20hp Kohler (SN: 30000 - 39999) INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

STZ Zero-Turn Mower, 20hp Kohler

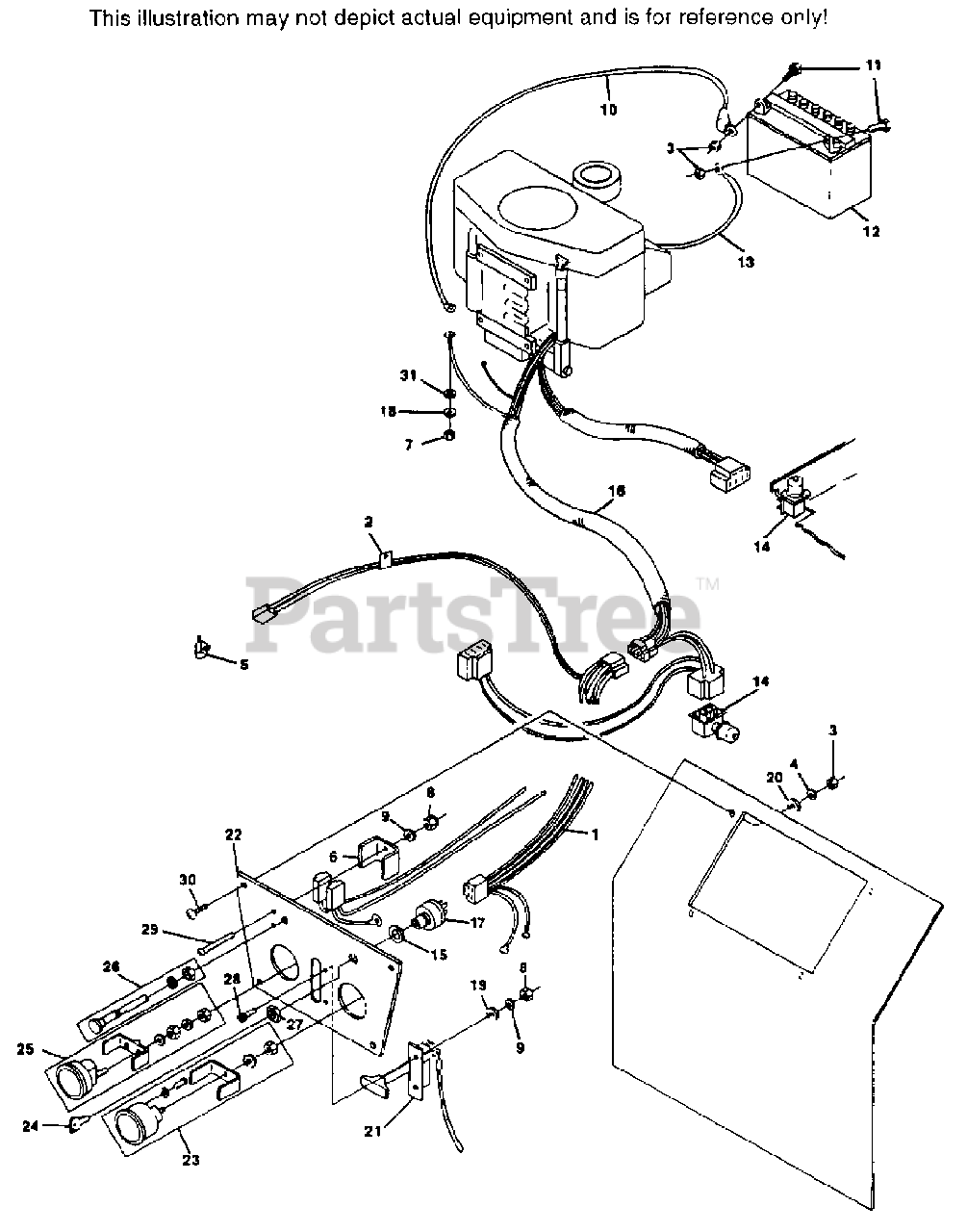

INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Scag 48518

WIRE HARNESS, INSTRUMENT PANEL

$88.99

$

Usually ships in 2-12 days

0

2

Scag 48030-09

CLAMP

$1.49

$

In Stock, Qty 15

0

3

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

LOCKWASHER, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

Scag 48717

SWITCH, SEAT

$9.99

$

In Stock, only 3 left!

0

6

Scag 42413

BRACKET, FUSE HOLDER

$40.99

$

Usually ships in 2-12 days

0

7

HEX NUT, MS-METRIC

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

8

HEX NUT, #10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

LOCKWASHER, #10 EXTERNAL TOOTH

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

Scag 48029-02

BATTERY CABLE - 30-3/4"(RED)

$15.99

$

Usually ships in 2-12 days

0

11

HEX HEAD BOLT, 1/4-20 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 48015

BATTERY

$

$

Not available

13

Scag 48029-01

BATTERY CABLE - 13-3/4"(BLACK)

$9.99

$

Usually ships in 2-12 days

0

14

Scag 48522

SWITCH, CUTTER DECK ENGAGE
(Superseded to 481474)

$103.99

$

In Stock, only 1 left!

0

15

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

16

Scag 48751

WIRE HARNESS - LOWER

$

$

Not available

17

Scag 48017

SWITCH, IGNITION

$22.99

$

Usually ships in 2-12 days

0

18

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

FLAT WASHER #10

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

FLAT WASHER 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

21

Scag 48519

THROTTLE CONTROL
(Superseded to 48090)

$61.99

$

In Stock, only 1 left!

0

22

Scag 42762

INSTRUMENT PANEL

$

$

Not available

23

Scag 48023

HOURMETER(INCLUDES HARDWARE)

$157.99

$

Usually ships in 2-12 days

0

24

Scag 48017-02

IGNITION KEY

$3.99

$

In Stock, Qty 9

0

25

Scag 48022

AMMETER(INCLUDES HARDWARE)
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

26

Scag 48091

CHOKE CONTROL

$

$

Not available

27

Scag 48017-04

HEX NUT, 5/8-11

$1.49

$

In Stock, Qty 5

0

28

SCREW, PHILLIPS WASHER HD, #10-32 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

29

SCREW, PHILLIPS WASHER HD, #10-32 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

SCREW, PHILLIPS PAN HEAD, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

31

FLAT WASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?32

Scag 421174

KICK PLATE

$

$

Not available
