STZ-20KH - Scag STZ Zero-Turn Mower, 20hp Kohler (SN: 30000 - 39999) HYDRAULIC COMPONENTS Parts Diagram

STZ Zero-Turn Mower, 20hp Kohler

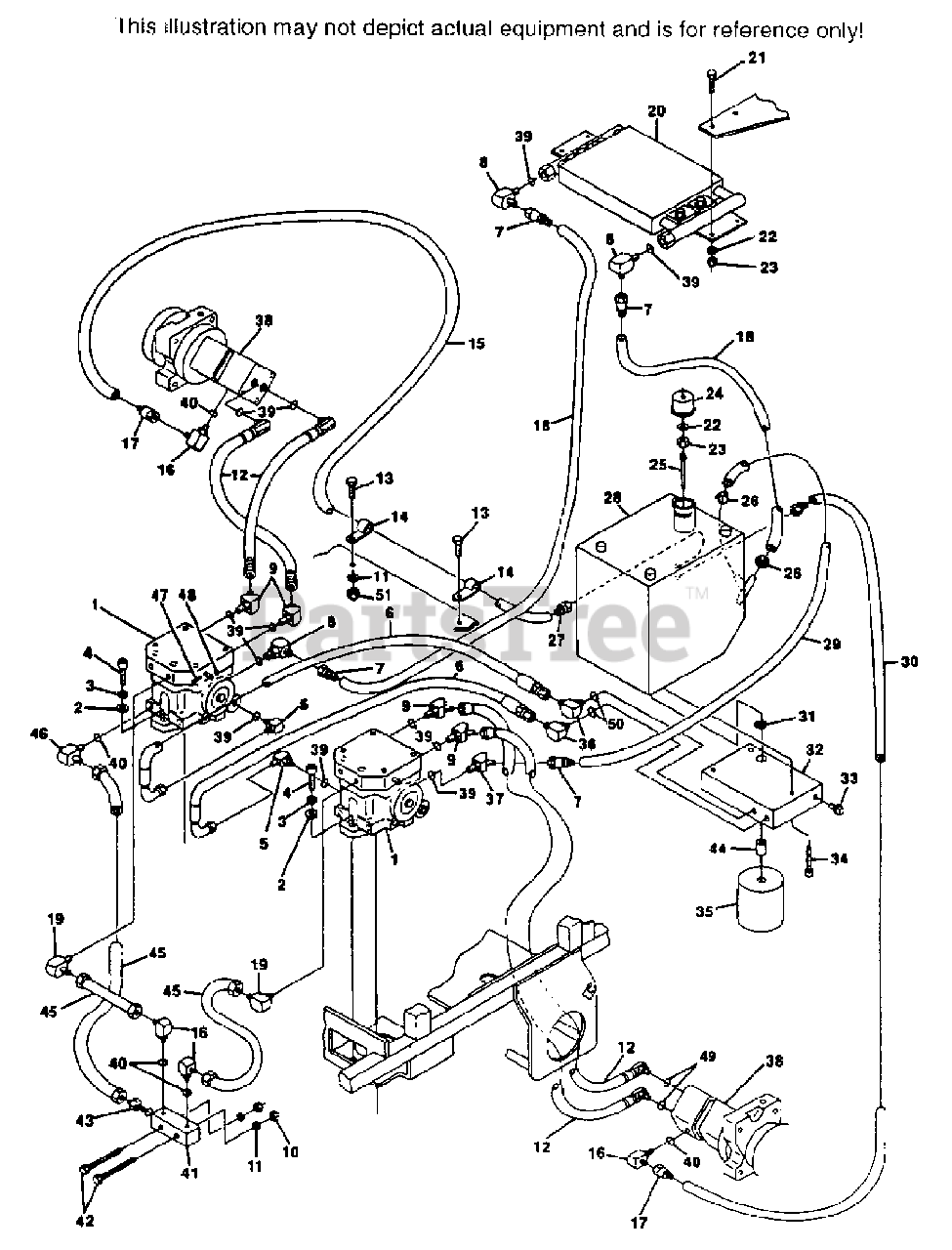

HYDRAULIC COMPONENTS Parts Diagram

  • Title

1

Scag 48597

PUMP, SUNDSTRAND
(Superseded to 46763)

$1294.99

$

Usually ships in 2-12 days

0

2

Scag 04041-04

FLAT WASHER(.516 X .937 X .105)

$0.99

$

Usually ships in 2-12 days

0

3

LOCKWASHER, 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

Scag 04015-03

CAPSCREW, SOCKET HD., 5/16-18 X 3/4"

$

$

Not available

5

Scag 48350-07

ELBOW 90 DEG., 1-1/16-12 JIC TO 3/4-16 "O"

$

$

Not available

6

Scag 48622

HOSE ASSEMBLY, PUMP SUCTION

$

$

Not available

7

Scag 48353-04

COUPLING, 7/8-14 SAE FLARE TO 5/8 ID HOSE

$23.99

$

Usually ships in 2-12 days

0

8

Scag 48350-05

ELBOW 90 DEG., 7/8-14 JIC TO 3/4-16 "O"

$32.99

$

Usually ships in 2-12 days

0

9

Scag 48485-01

ELBOW 45 DEG., 3/4-16 JIC TO 3/4-16 "O"

$23.99

$

Usually ships in 2-12 days

0

10

1/4-20 ELASTIC STOP NUT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

LOCKWASHER, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 48501

HOSE ASSEMBLY, PUMP TO MOTOR

$69.99

$

Usually ships in 2-12 days

0

13

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

Scag 48030-09

HOSE CLAMP

$1.49

$

In Stock, Qty 5

0

15

Scag 48482-11

HOSE, 1/4" ID - 31 1/2" LONG
(Superseded to 48482)

$0.99

$

In Stock, Qty 20+

0

16

Scag 48485-03

ELBOW 90 DEG., 7/16-20 JIC TO 7/16-20 "O"

$

$

Not available

17

Scag 48353-02

COUPLING, 7/8-14 SAE FLARE TO 1/4 ID HOSE

$4.49

$

Usually ships in 2-12 days

0

18

Scag 48504-07

HOSE, 5/8" ID - 18-1/2" LONG
(Superseded to 48504-01)

$

$

Not available

19

Scag 48489-04

ELBOW 90 DEG. 1/8 NPT X 7/16-20JIC

$

$

Not available

20

Scag 48645

OIL COOLER

$

$

Not available

21

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

22

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

23

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

Scag 48630

CAP, OIL RESERVOIR

$

$

Not available

25

Scag 43198

DIP STICK

$

$

Not available

26

Scag 48136-04

HOSE CLAMP

$8.49

$

Usually ships in 2-12 days

0

27

Scag 48352-02

COUPLING, 1/4 NPT TO 1/4 ID HOSE

$7.49

$

Usually ships in 2-12 days

0

28

Scag 45309

OIL RESERVOIR

$

$

Not available

29

Scag 48504-05

HOSE, 5/8" ID - 16" LONG
(Superseded to 48504-01)

$

$

Not available

30

Scag 48482-10

HOSE, 1/4" ID - 14 1/2" LONG
(Superseded to 48482)

$0.99

$

In Stock, Qty 20+

0

31

Scag 48603-01

"O" RING, 1/8 X 1 ID

$2.99

$

Usually ships in 2-12 days

0

32

Scag 48599

OIL MANIFOLD

$

$

Not available

33

Scag 48731-02

PIPE PLUG, 1/2 NPT MAGNETIC

$

$

Not available

34

Scag 04015-04

CAPSCREW, SOCKET HD., 3/8-16 X 2"

$0.99

$

Usually ships in 2-12 days

0

35

Scag 48606

OIL FILTER

$

$

Not available

36

Scag 48350-08

ELBOW 90 DEG.

$

$

Not available

37

Scag 48485-04

ELBOW 45 DEG., 7/8-14 JIC TO 3/4-16 "O"

$

$

Not available

38

Scag 48769

WHITE MOTOR

$2892.99

$

Usually ships in 2-12 days

0

39

Scag 48603-02

"O" RING, 3/32 X 5/8" ID

$3.49

$

In Stock, only 3 left!

0

40

Scag 48603-03

"O" RING 1/16 X 3/8" ID

$3.49

$

Usually ships in 2-12 days

0

41

Scag 48772

E-Z RIDE VALVE

$

$

Not available

42

HEX HEAD BOLT, 1/4-20 X 1-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

43

Scag 48483-01

UNION TUBE, 7/16-20

$

$

Not available

44

Scag 48643

NIPPLE, OIL FILTER

$17.99

$

Usually ships in 2-12 days

0

45

Scag 48764

HOSE ASSEMBLY, E-Z RIDE VALVE

$

$

Not available

?46

Scag 48350-04

ELBOW 90 DEG. 7/16-20 JIC TO 9/16-18 "O"

$21.99

$

Usually ships in 2-12 days

0

47

SCREW, PHILLIPS HEAD, 1/4-20 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

48

HEX NUT, 1/4-20 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

UNKNOWN

$

$

Not available

50

UNKNOWN

$

$

Not available

51

UNKNOWN

$

$

Not available
