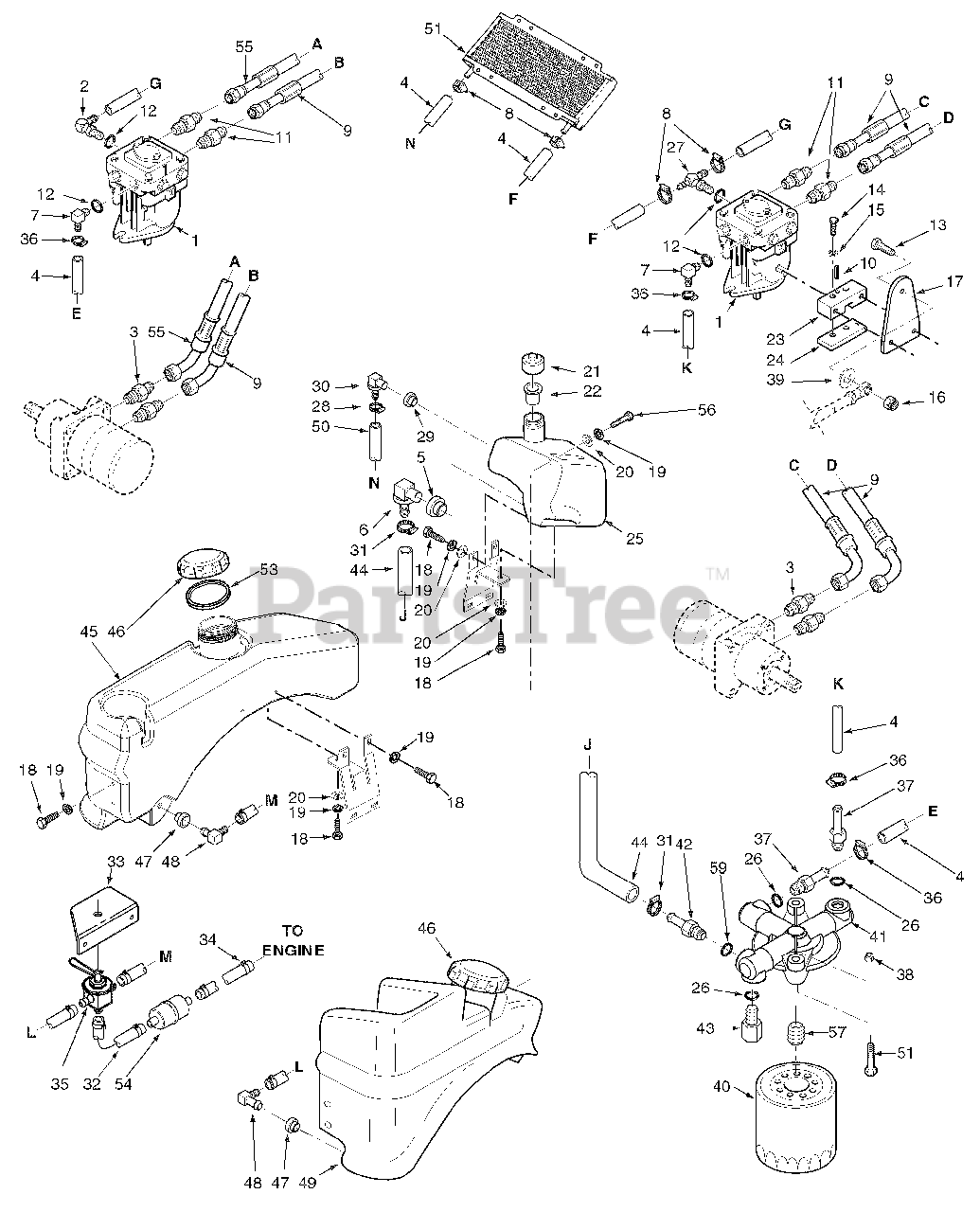

STWC61V-27CV - Scag Wildcat 61" Zero-Turn Mower, 27hp Kohler (SN: D7200001 - D7299999) Fuel And Hydraulic System Parts Diagram

Wildcat 61" Zero-Turn Mower, 27hp Kohler

Fuel And Hydraulic System Parts Diagram

  • Title

1

Scag 482643

Pump, BDP-10A-316

Note: (LH)

$903.99

$

Usually ships in 2-12 days

0

Scag 482644

Pump, BDP-10A-419

Note: (RH)

$903.99

$

Usually ships in 2-12 days

0

2

Scag 482266-01

Elbow, 90 Degree 9/16 O-Ring x 3/8 Hose

$31.99

$

Usually ships in 2-12 days

0

3

Scag 48572-02

Fitting, 1/2" JIC x 5/8 O-Ring

$12.99

$

Usually ships in 2-12 days

0

4

Scag 48811

Hose, 3/8 Pushlock

Note: (Specify length)

$0.99

$

In Stock, Qty 20+

0

5

Scag 482573

Bushing

$13.99

$

In Stock, only 2 left!

0

6

Scag 482574

Fitting

$18.99

$

In Stock, only 1 left!

0

7

Scag 482266-01

Elbow, 90 Degree 9/16 O-Ring x 3/8 Hose

$31.99

$

Usually ships in 2-12 days

0

8

Scag 48136-13

Hose Clamp, .69 Dia.

$7.49

$

In Stock, Qty 20+

0

9

Scag 482548

Hose Assembly
(Superseded to 484451)

$82.99

$

In Stock, Qty 11

0

10

Scag 04060-06

Roll Pin

$0.99

$

In Stock, only 1 left!

0

11

Scag 48572-04

Fitting, 1/2" JIC x 1/2" O-Ring

$8.49

$

In Stock, only 1 left!

0

12

Scag 48603-06

O-Ring

$6.99

$

In Stock, only 2 left!

0

13

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04017-07

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 10

0

15

Scag 04030-02

Lockwasher

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 422969

Control Lever

$8.49

$

Usually ships in 2-12 days

0

18

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

21

Scag 481164

Cap, Hydraulic Tank

$17.99

$

In Stock, Qty 8

0

22

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

23

Scag 48829

Control Block

$21.99

$

In Stock, only 1 left!

0

24

Scag 421203

Clamp Plate

$18.99

$

Usually ships in 2-12 days

0

25

Scag 461479

Hydraulic Tank Assembly w/fittings

$299.99

$

Usually ships in 2-12 days

0

26

Scag 48603-06

O-Ring

$6.99

$

In Stock, only 2 left!

0

27

Scag 482277

Tee Fitting, O-Ring to Barb

$35.99

$

Usually ships in 2-12 days

0

28

Scag 48136-13

Clamp, .69 Max. / .25 Min. Dia.

$7.49

$

In Stock, Qty 20+

0

29

Scag 482571

Bushing

$12.99

$

In Stock, Qty 20+

0

30

Scag 482572

Elbow, 0.38 Hose

$9.99

$

Usually ships in 2-12 days

0

31

Scag 48136-13

Clamp

$7.49

$

In Stock, Qty 20+

0

32

Scag 483617

Fuel Hose, 1/4 ID Non-Perm.

$0.99

$

In Stock, Qty 20+

0

33

Scag 423912

Bracket Fuel Valve

$24.99

$

Usually ships in 2-12 days

0

34

Scag 48059-01

Clamp, Fuel Hose 1/4 Hose ID

$0.99

$

In Stock, Qty 7

0

35

Scag 482212

Valve, Fuel Shutoff

$43.99

$

In Stock, only 1 left!

0

36

Scag 48136-13

Clamp, .69 Max. / .25 Min. Dia.

$7.49

$

In Stock, Qty 20+

0

37

Scag 482800-02

Fitting, 9/16 O-Ring x 3/8 Hose

$16.99

$

Usually ships in 2-12 days

0

38

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

39

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

40

Scag 48462-01

Oil Filter

$25.99

$

In Stock, Qty 20+

0

41

Scag 482798

Filter Head Assembly
(Superseded to 482764)

$323.99

$

Usually ships in 2-12 days

0

42

Scag 482800-01

Fitting, 3/4 O-Ring x 3/8 Hose

$

$

Not available

43

Scag 48604-03

Plug, 9/16-18 O-Ring

$4.49

$

Usually ships in 2-12 days

0

44

Scag 482557

Hose, Filter Inlet

$29.99

$

In Stock, only 2 left!

0

45

Scag 461970

Fuel Tank RH

$210.99

$

Usually ships in 2-12 days

0

46

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

Note: (incl. item #53)

$26.99

$

In Stock, only 4 left!

0

47

Scag 48309

Tank Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

48

Scag 48939

Elbow, 90 Degree
(Superseded to 483748)

$8.99

$

In Stock, only 2 left!

0

49

Scag 461698

Fuel Tank LH

$253.99

$

Usually ships in 2-12 days

0

50

Scag 48811

Hose, 3/8 Pushlock 15" Long

$0.99

$

In Stock, Qty 20+

0

51

Scag 482708

Cooler, Transmission

$207.99

$

Usually ships in 2-12 days

0

52

Scag 04010-10

Screw, 1/4-20 x 2"

$0.99

$

In Stock, Qty 12

0

53

Scag 482774

Gasket, Gas Tank Cap

$3.49

$

In Stock, only 4 left!

0

54

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

55

Scag 482605

Hose Assembly
(Superseded to 484452)

$79.99

$

In Stock, only 1 left!

0

56

Scag 04001-11

Bolt, Hec Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

57

Scag 482802

Nipple, Oil Filter 1.0-12 UNF-2A x 1-1/4"

$21.99

$

Usually ships in 2-12 days

0

58

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

59

Scag 48603-02

O-Ring, 3/4"

$3.49

$

In Stock, only 3 left!

0
