STWC61V-27CV - Scag Wildcat 61" Zero-Turn Mower, 27hp Kohler (SN: C6800001 - C6899999) Engine And Attaching Parts Parts Diagram

Wildcat 61" Zero-Turn Mower, 27hp Kohler

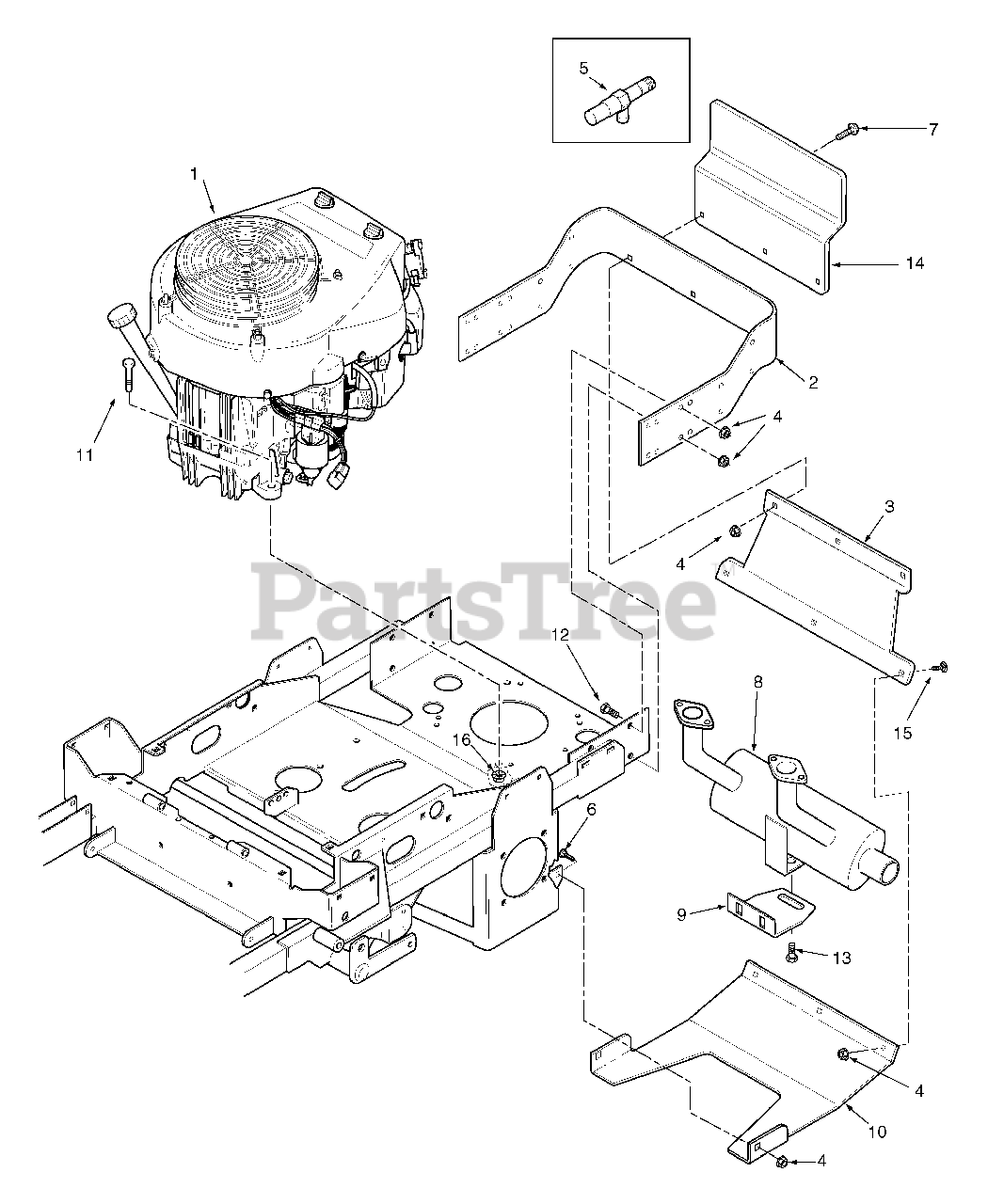

Engine And Attaching Parts Parts Diagram

  • Title

1

Scag 482900

Engine, 27HP Kohler

$

$

Currently unavailable

Scag 482827

Engine, 25HP Kawasaki

$

$

Currently unavailable

Scag 483126

Engine, 26HP Kawasaki Liquid-Cooled

$

$

Currently unavailable

Scag 483197

Engine, 30HP Kohler

$

$

Currently unavailable

2

Scag 423770

Bumper, Rear

$112.99

$

In Stock, only 1 left!

0

3

Scag 41031

Weight, Rear (Shield)

Note: 61V Only

$

$

Not available

Scag 424107

Shield, Rear 52V Only

$59.99

$

Usually ships in 2-12 days

0

4

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 482349

Extension, Oil Drain 4" - Kohler, Kawasaki 26HP

$42.99

$

Usually ships in 2-12 days

0

Scag 482510

Extension, Oil Drain 2.3" - Kawasaki

$36.99

$

Usually ships in 2-12 days

0

6

Scag 04003-23

Bolt, Carr. 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

7

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

8

Scag 483266

Muffler - Kohler
(Superseded to 486141)

$180.99

$

In Stock, only 1 left!

0

Scag 483268

Muffler - Kawasaki

$395.99

$

Usually ships in 2-12 days

0

Scag 483187

Muffler - Kawasaki 26HP Liquid-Cooled

$319.99

$

Usually ships in 2-12 days

0

9

Scag 424133

Bracket, Muffler

$23.99

$

Usually ships in 2-12 days

0

10

Scag 423555

Plate, Skid

$142.99

$

Usually ships in 2-12 days

0

11

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

12

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

13

Scag 04011-12

Screw, 5/16-18 x 3/4"

$0.99

$

In Stock, only 1 left!

0

14

Scag 424415

Guard, Carb Inlet

Note: Kawasaki Only

$34.99

$

Usually ships in 2-12 days

0

15

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

16

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
