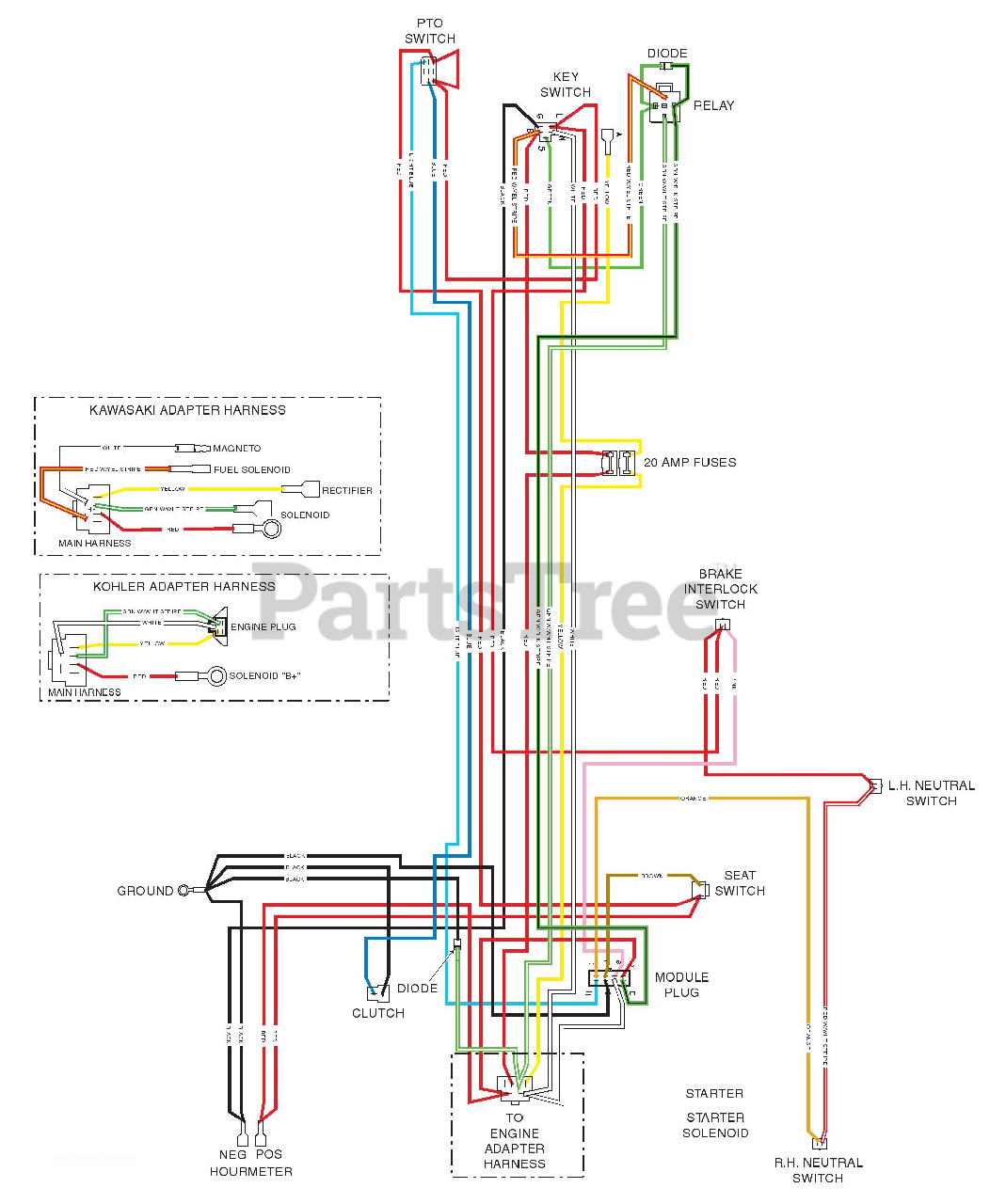

STWC52V-25KA - Scag Wildcat 52" Zero-Turn Mower, 25hp Kawasaki (SN: D6900001 - D6999999) Electrical Schematic Parts Diagram

Wildcat 52" Zero-Turn Mower, 25hp Kawasaki

Electrical Schematic Parts Diagram

  • Title

No Parts List Information Available

$

$

Not available
