STWC48V-25CV - Scag Wildcat 48" Zero-Turn Mower, 25hp Kohler (SN: F4400001 - F4499999) STWC Fuel System - EPA Phase 3 Parts Diagram

Wildcat 48" Zero-Turn Mower, 25hp Kohler

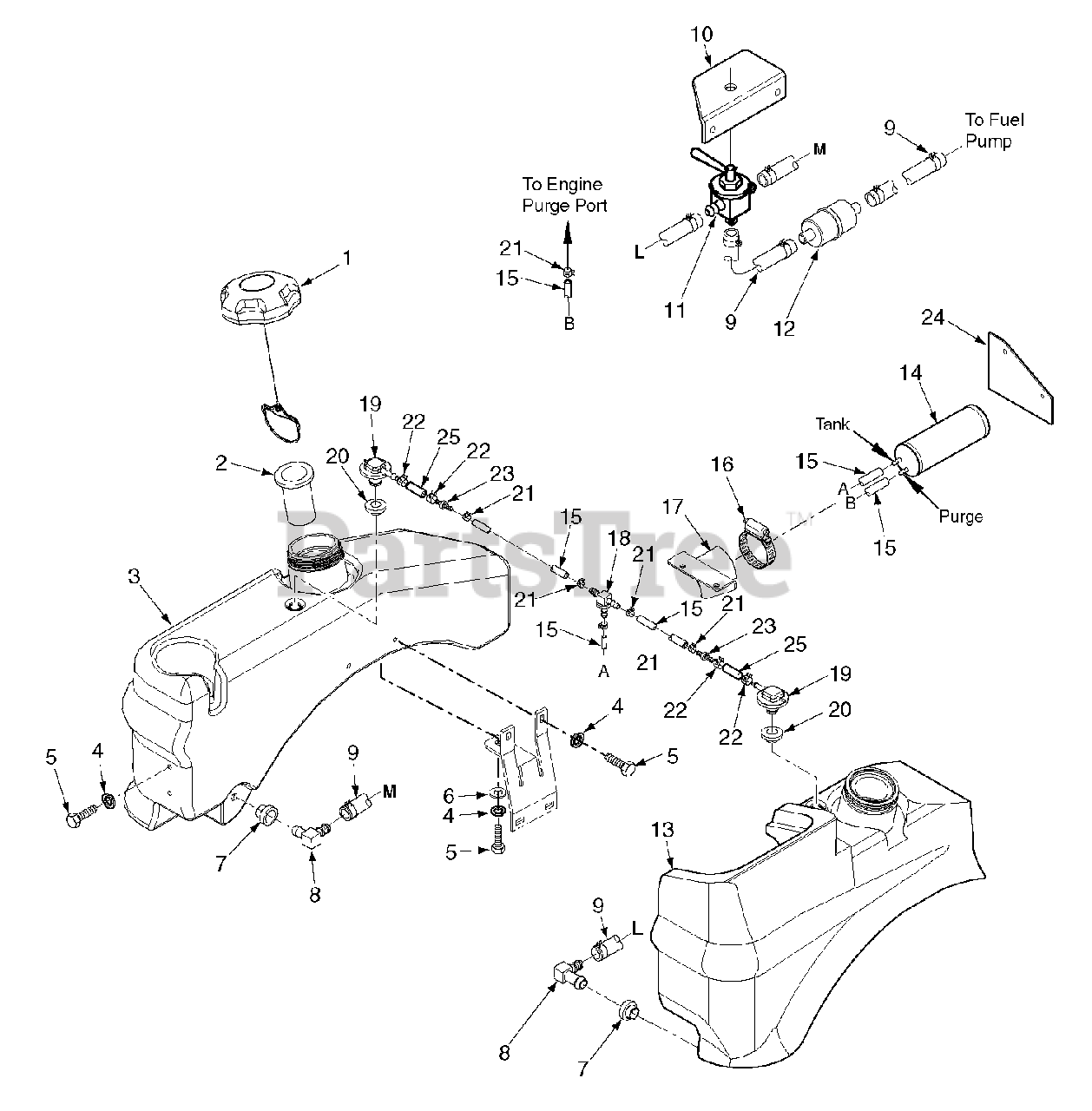

STWC Fuel System - EPA Phase 3 Parts Diagram

  • Title
1

Scag 484286

Fuel Cap w/ Tethered

$53.99

$

In Stock, Qty 7

0

2

Scag 484279-01

Tube, Fuel Tank Insert

$4.49

$

In Stock, only 1 left!

0

3

Scag 462298

Fuel Tank RH

Note: (Incl. #7 & #8)

$

$

Not available

4

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

7

Scag 482571

Tank Bushing

$12.99

$

In Stock, Qty 20+

0

8

Scag 483748

Fitting, 90 Degree

$8.99

$

In Stock, only 2 left!

0

9

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

10

Scag 423912

Bracket, Fuel Valve

$24.99

$

Usually ships in 2-12 days

0

11

Scag 482212

Fuel Shutoff Valve

$43.99

$

In Stock, Qty 15

0

12

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

13

Scag 462297

Fuel Tank LH
(Superseded to 461698)

Note: (Incl. #7 & #8)

$253.99

$

Usually ships in 2-12 days

0

14

Scag 484342

Carbon Canister

$101.99

$

In Stock, Qty 6

0

15

Scag 484347

Hose, 3/16"

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

16

$7.49

$

Usually ships in 2-12 days

0

17

Scag 452176

Bracket, Canister Mounting

$35.99

$

In Stock, only 1 left!

0

18

Scag 48935-02

T - Fitting, Fuel Vent

$28.99

$

Usually ships in 2-12 days

0

19

Scag 484284

Valve, Rollover
(Superseded to 484333)

$14.99

$

In Stock, Qty 19

0

20

Scag 484285

Grommet, Viton

$

$

Not available

21

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 4 left!

0

22

Scag 48059-02

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 19

0

23

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

24

Scag 425559

Heatshield

$17.99

$

Usually ships in 2-12 days

0

25

Scag 484347

Hose, 1/4" Vapor Recovery

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0
