STTII-72V-37BV-EFI - Scag Turf Tiger II 72" Zero-Turn Mower, 37hp Vanguard (SN: P2400001 - P2499999) STTII SHEET METAL COMPONENTS Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 37hp Vanguard

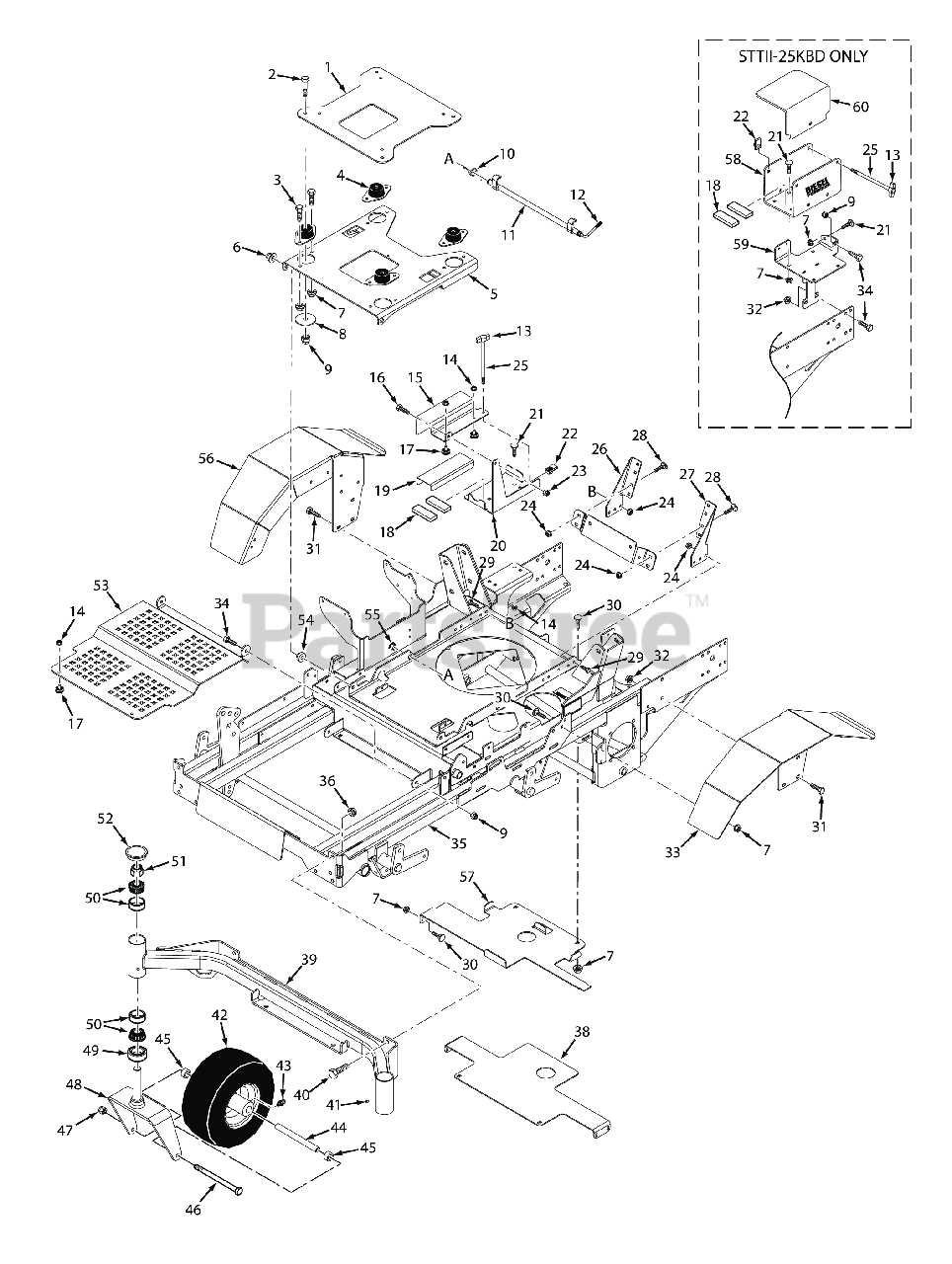

STTII SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 427011

Mounting Plate, Seat

$58.99

$

Usually ships in 2-12 days

0

2

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 484148

Isolator, Seat

$36.99

$

In Stock, only 3 left!

0

5

Scag 462878

Seat Mounting Plate, Lower w/Decals

$203.99

$

Usually ships in 2-12 days

0

6

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 8

0

9

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 485599

Spring, Seat Latch

$1.99

$

Usually ships in 2-12 days

0

11

Scag 462841

Lever Assy., Seat Release

$66.99

$

Usually ships in 2-12 days

0

12

Scag 484341

Grip, Seat Latch

$0.99

$

Usually ships in 2-12 days

0

13

Scag 485698-01

Knob, 1/4" Wing

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

15

Scag 427486

Cover, Battery Box (Gas Only)

$35.99

$

Usually ships in 2-12 days

0

16

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

18

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0

19

Scag 485692

Insulation, Battery Cover (Gas Only)

$4.49

$

Usually ships in 2-12 days

0

20

Scag 427098

Battery Box (Gas Only)

$37.99

$

Usually ships in 2-12 days

0

21

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

22

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

23

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-221

Bolt, Hex Head 1/4-20 x 8"

$3.99

$

In Stock, Qty 18

0

26

Scag 425438

Mounting Bracket - RH, Oil Cooler

$22.99

$

Usually ships in 2-12 days

0

27

Scag 425437

Mounting Bracket - LH, Oil Cooler

$22.99

$

Usually ships in 2-12 days

0

28

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

31

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

32

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

33

Scag 452733

FENDER WLMT, LH

$186.99

$

Usually ships in 2-12 days

0

34

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

35

Scag 462988

Mainframe Assy., w/Decals

$2312.99

$

Usually ships in 2-12 days

0

36

Scag 04117-05

Nut, 7/16-14 Flange Elastic Stop

$0.99

$

Usually ships in 2-12 days

0

37

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

38

Scag 427072

Front Support, Fuel Tank

$68.99

$

Usually ships in 2-12 days

0

39

Scag 452719

Caster Support Weldment - 52V
(Superseded to 453102)

$502.99

$

In Stock, only 1 left!

0

39

Scag 452735

Caster Support Weldment - 61V
(Superseded to 453103)

$387.99

$

Usually ships in 2-12 days

0

39

Scag 452736

Caster Support Weldment - 72V
(Superseded to 453104)

$410.99

$

Usually ships in 2-12 days

0

40

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

41

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

42

Scag 9278

Wheel Assy, 61V, 72V (Incl. 20, 54, 55)

$191.99

$

In Stock, Qty 20+

0

42

Scag 482621

Bearing, Tapered Roller

$20.99

$

In Stock, Qty 20+

0

42

Scag 482622

Roller Bearing, Short

$9.99

$

In Stock, Qty 20+

0

43

Scag 48114-10

Fitting, Grease

$3.99

$

In Stock, only 1 left!

0

44

Scag 43583

Sleeve, Caster Wheel (61V, 72A/VS)

$13.99

$

In Stock, Qty 20+

0

45

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

46

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS)

$5.99

$

In Stock, Qty 20+

0

47

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

48

Scag 451416

Yoke Weldment, Caster (61V & 72A/VS)

$98.99

$

In Stock, Qty 20+

0

49

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

50

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$23.99

$

In Stock, Qty 20+

0

51

Scag 04021-20

Nut, Hex Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

52

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

53

Scag 427494

Foot Plate

$128.99

$

Usually ships in 2-12 days

0

54

Scag 431013

Sleeve, Seat Base Mounting

$7.99

$

Usually ships in 2-12 days

0

55

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

56

Scag 452734

Fender, RH

$196.99

$

Usually ships in 2-12 days

0

57

Scag 427073

Rear Support, Fuel Tank

$55.99

$

Usually ships in 2-12 days

0

58

Scag 462906

Battery Box w/Decal (Diesel Only)

$75.99

$

Usually ships in 2-12 days

0

59

Scag 452800

Battery Bracket Weldment (Diesel Only)

$73.99

$

Usually ships in 2-12 days

0

60

Scag 422682

Cover, Battery (Diesel Only)

$35.99

$

In Stock, only 1 left!

0

60

Scag 481780

Insulation, Battery Cover

$10.99

$

Usually ships in 2-12 days

0
