STTII-72V-35BV - Scag Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard (SN: M0900001 - M0999999) STTII Fuel System - Kubota Diesel Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard

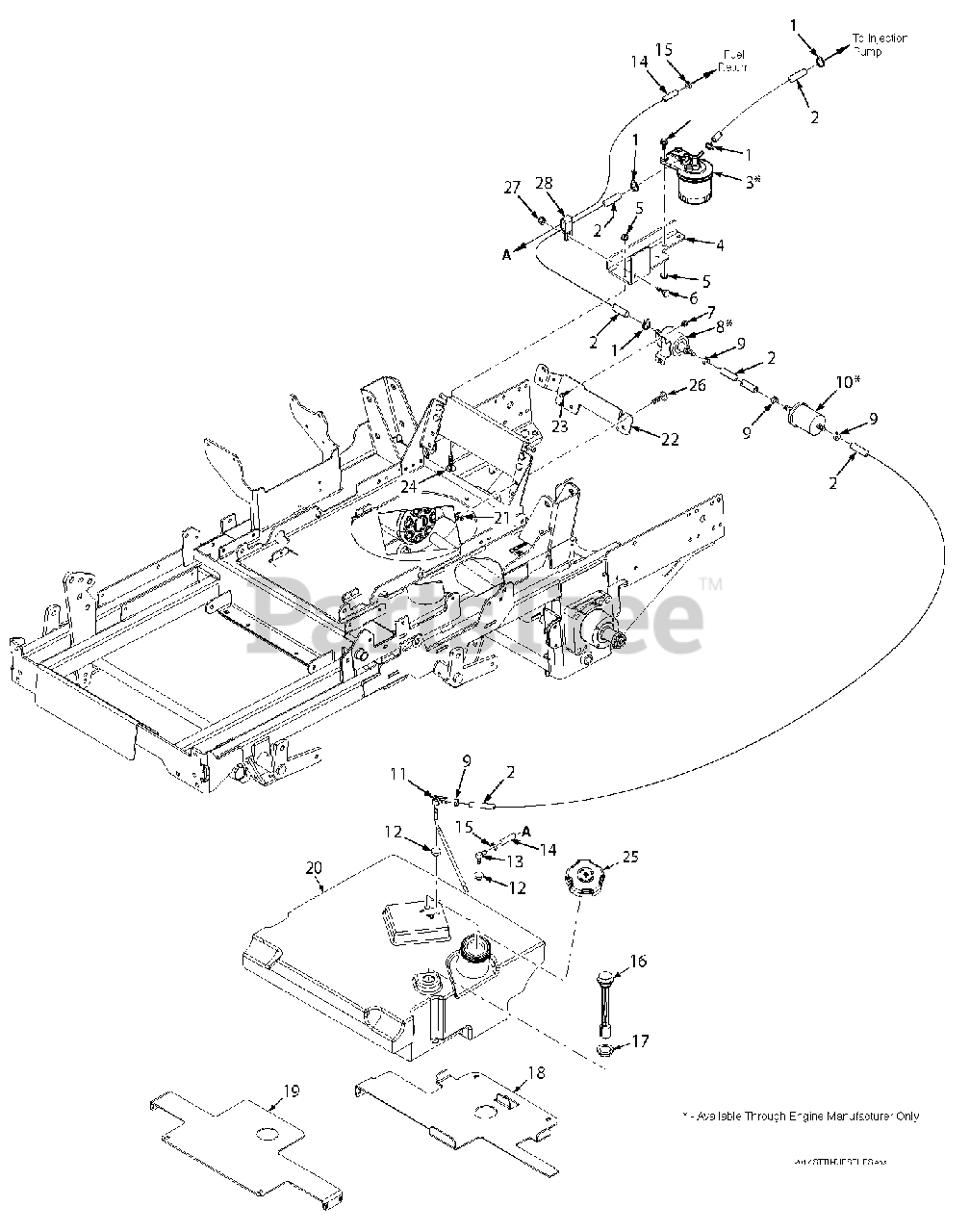

STTII Fuel System - Kubota Diesel Parts Diagram

  • Title

1

Scag 48136-13

Hose Clamp, 0.69" Dia.

$7.49

$

In Stock, Qty 20+

0

2

Scag 483620

Fuel Hose, 5/16" ID. Non-Perm.

Note: Order by the inch.

$0.99

$

In Stock, Qty 20+

0

3

Fuel Filter, Kubota

Note: Available Through Engine Manufacturer Only.

$

$

Not available

4

Scag 427164

Bracket, Fuel Filter Mounting

$51.99

$

Usually ships in 2-12 days

0

5

Scag 04019-03

Nut, Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 04003-29

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 8

0

7

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

8

Fuel Pump, Kubota

Note: Available Through Engine Manufacturer Only.

$

$

Not available

9

Scag 48059-04

Clamp, Fuel Supply Hose

$0.99

$

Usually ships in 2-12 days

0

10

Fuel Pre-Filter, Kubota

Note: Available Through Engine Manufacturer Only.

$

$

Not available

11

Scag 485701

Valve, Shutoff Assy

$71.99

$

In Stock, only 1 left!

0

12

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

13

Scag 485626

Fitting, Return

$9.99

$

Usually ships in 2-12 days

0

14

Scag 481179

Fuel Return Hose, 3/16"

Note: Order by the inch.

$0.99

$

Usually ships in 2-12 days

0

15

Scag 48059-03

Clamp, Fuel Return Hose

$

$

Not available

16

Scag 485687

Fuel Gauge Assy., 8"

Note: (incl. #17)

$91.99

$

Usually ships in 2-12 days

0

17

Scag 484242

Seal, Fuel Gauge

$21.99

$

In Stock, Qty 10

0

18

Scag 427073

Rear Support, Fuel Tank

$55.99

$

Usually ships in 2-12 days

0

19

Scag 427072

Front Support, Fuel Tank

$68.99

$

Usually ships in 2-12 days

0

20

Scag 462832

Fuel Tank Assembly

Note: (Incl. #11, 12, 15, 16)

$482.99

$

Usually ships in 2-12 days

0

21

Scag 04019-02

Nut, Serr. Flng. 1/4-20

$0.99

$

In Stock, Qty 20+

0

22

Scag 427168

Mounting Bracket, Fuel Pump

$64.99

$

Usually ships in 2-12 days

0

23

Scag 04013-04

Capscrew, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

24

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 484294

Fuel Cap

$24.99

$

In Stock, only 2 left!

0

26

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04117-01

Nut, Flange Elastic Stop Nut, 5/16-18

$0.99

$

In Stock, Qty 17

0

28

Scag 48030-11

Clamp, Hose

$2.49

$

Usually ships in 2-12 days

0
