STTII-72V-35BV - Scag Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard (SN: M0900001 - M0999999) STTII Engine & Attaching Parts - Liquid Cooled (Gasoline) Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard

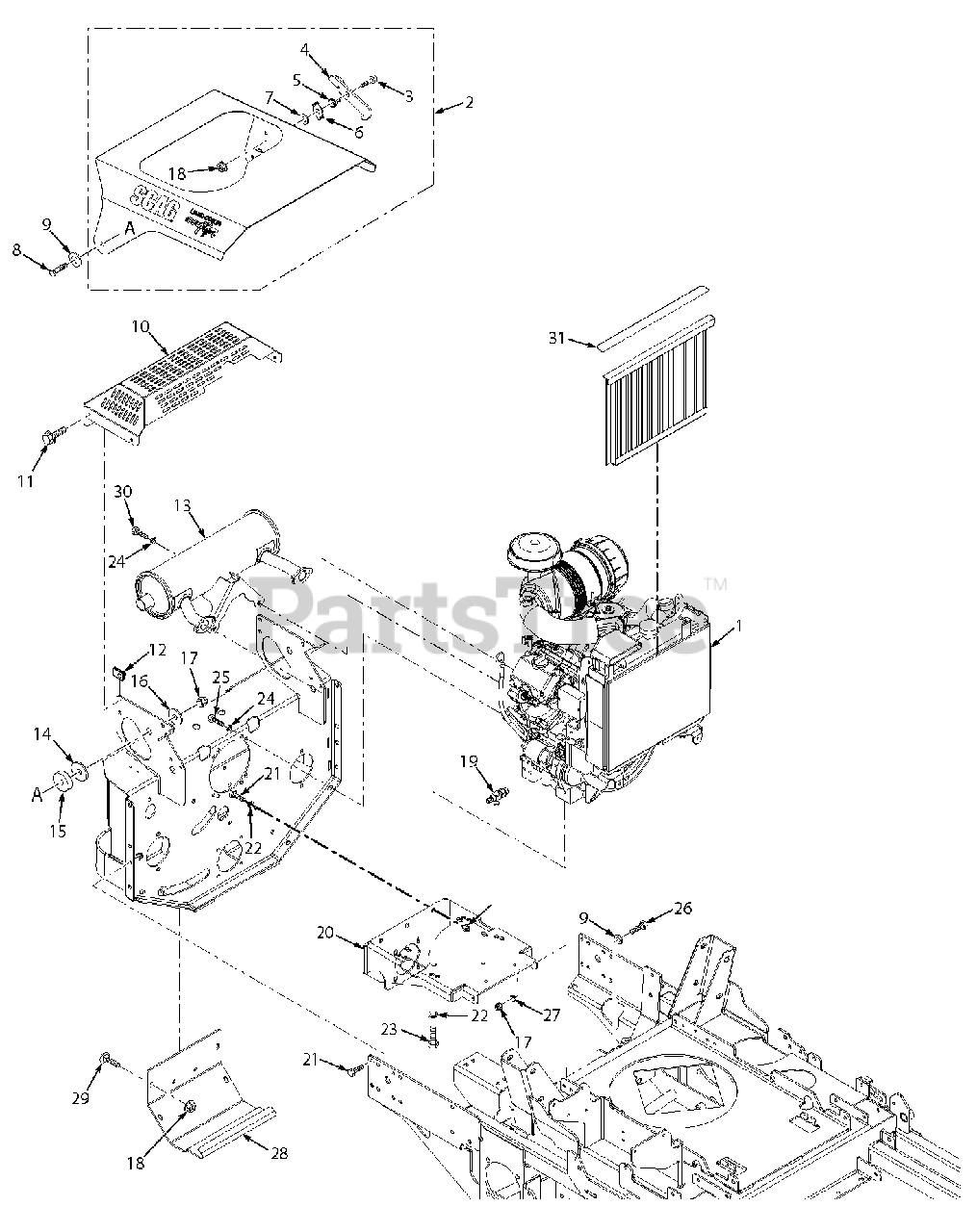

STTII Engine & Attaching Parts - Liquid Cooled (Gasoline) Parts Diagram

  • Title

1

Scag 485037

Engine, FD750 - Kawasaki

Note: Not available through Scag.

$

$

Currently unavailable

1

Scag 485038

Engine, FD791 - Kawasaki

Note: Not available through Scag.

$

$

Currently unavailable

1

Scag 485395

Engine, FD850 - Kawasaki

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 462848

Hood Assy., STTII (FD750)

$246.99

$

Usually ships in 2-12 days

0

2

Scag 462846

Hood Assy., STTII (FD791 & FD850) - Fuel Injected
(Superseded to 462904)

$173.99

$

Usually ships in 2-12 days

0

3

Scag 04009-07

Bolt, Shoulder 3/8 x 1/2

$4.49

$

In Stock, Qty 6

0

4

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

5

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

6

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

7

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

8

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, Qty 20+

0

10

Scag 427091

Guard, Muffler

$104.99

$

Usually ships in 2-12 days

0

11

Scag 04013-04

Bolt, Hex Head Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

12

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

13

Scag 482699

Muffler, Kawasaki

$298.99

$

Usually ships in 2-12 days

0

14

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

15

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Gauge

$1.99

$

In Stock, Qty 5

0

17

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 482351

Oil Drain, Kawasaki

$34.99

$

Usually ships in 2-12 days

0

20

Scag 452726

Plate Weldment, Engine Mount
(Superseded to 453380)

$142.99

$

Usually ships in 2-12 days

0

21

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

22

Scag 04030-05

Lockwasher, 7/16

$0.99

$

In Stock, Qty 5

0

23

Scag 04002-18

Bolt, Hex Head M10-1.5 x 25 Full Thread

$0.99

$

Usually ships in 2-12 days

0

24

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

25

Scag 04002-12

Bolt, Hex Head M8-1.25 x 20

$0.99

$

In Stock, Qty 9

0

26

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

27

Scag 04030-04

Lockwasher, 3/8

$0.99

$

In Stock, Qty 9

0

28

Scag 427071

Cover, Rear

$36.99

$

In Stock, only 1 left!

0

29

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04002-12

Bolt, Hex Head M8-1.25 X 20

$0.99

$

In Stock, Qty 9

0

31

Scag 452243

Screen Weldment, Radiator

$117.99

$

Usually ships in 2-12 days

0
