STTII-72V-35BV - Scag Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard (SN: M0900001 - M0999999) STTII Engine And Attaching Parts - Air Cooled (Gasoline) Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 35hp Vanguard

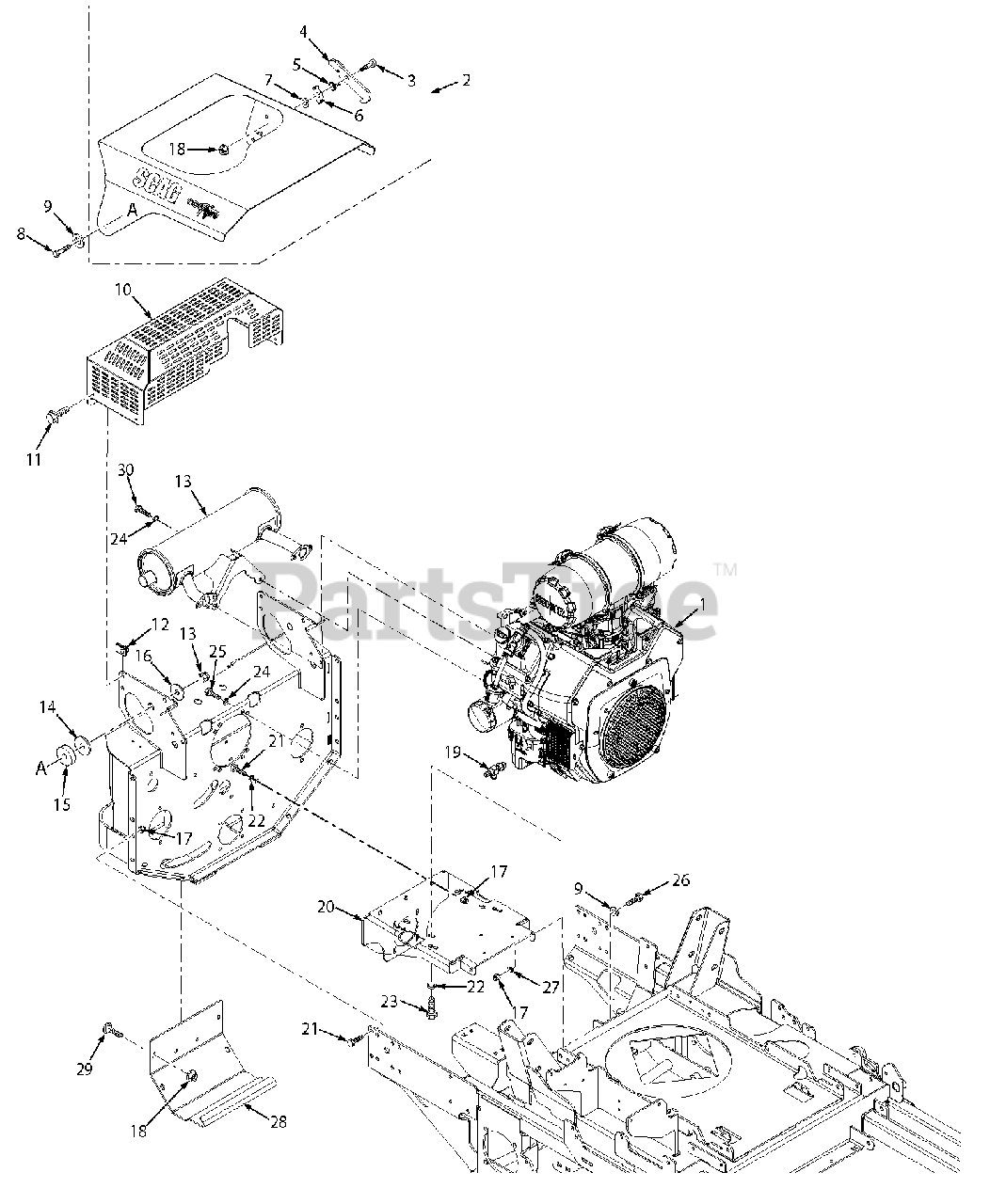

STTII Engine And Attaching Parts - Air Cooled (Gasoline) Parts Diagram

  • Title

1

Scag 485036

Engine, 26EFI - Kohler

Note: Not available through Scag.

$

$

Currently unavailable

1

Scag 484238

Engine, 35BV - Briggs & Stratton

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 462851

Hood Assy., STTII (EFI)

$246.99

$

Usually ships in 2-12 days

0

2

Scag 462848

Hood Assy., STTII (35BV)

$246.99

$

Usually ships in 2-12 days

0

3

Scag 04009-07

Bolt, Shoulder 3/8-1/2

$4.49

$

In Stock, Qty 6

0

4

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

5

Scag 483507

Spring, Hood

$6.49

$

In Stock, only 1 left!

0

6

Scag 424634

Lock, Hood

$11.99

$

In Stock, only 2 left!

0

7

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

8

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

10

Scag 427091

Guard, Muffler

$104.99

$

Usually ships in 2-12 days

0

11

Scag 04013-04

Bolt, Hex Head Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

12

Scag 04110-01

U-Nut,. 1/4-20

$1.49

$

In Stock, Qty 18

0

13

Muffler, 26EFI - Kohler

Note: Available through the individual engine manufacturer.

$

$

Not available

13

Muffler, 35BV - Briggs & Stratton

Note: Available through the individual engine manufacturer.

$

$

Not available

14

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

15

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

17

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Oil Drain, 26EFI - Kohler (Kohler p/n 25 462 12)

Note: Available through the individual engine manufacturer.

$

$

Not available

19

Scag 483017

Oil Drain, 35BV - Briggs & Stratton

$46.99

$

In Stock, Qty 16

0

20

Scag 452726

Plate Weldment, Engine Mounting
(Superseded to 453380)

$142.99

$

Usually ships in 2-12 days

0

21

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-04

Lockwasher, 3/8

$0.99

$

In Stock, Qty 20+

0

22

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (EFI)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-53

Bolt, Hex Head 5/16-18 x 2-1/2" (35BV)

$0.99

$

In Stock, Qty 13

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18 (35BV)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-19

Bolt, Hex Head 3/16-1"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

27

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

28

Scag 427071

Cover, Rear

$36.99

$

In Stock, only 1 left!

0

29

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0
