STTII-72V-31DFI - Scag Turf Tiger II 72" Zero-Turn Mower, 31hp Kawasaki (SN: S9500001 - S9599999) ELECTRICAL SCHEMATIC - KAWASAKI 31DFI Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 31hp Kawasaki

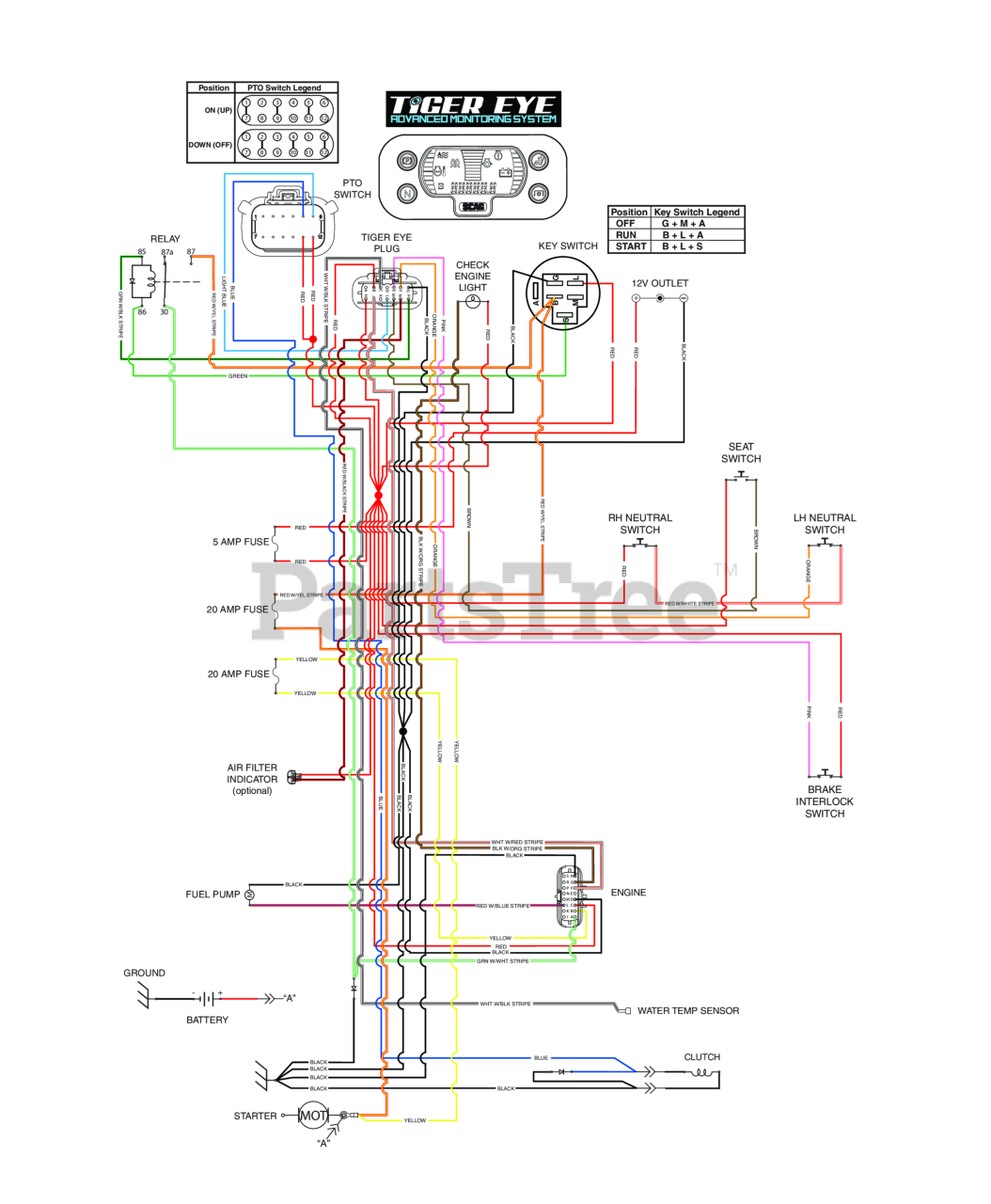

ELECTRICAL SCHEMATIC - KAWASAKI 31DFI Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
