STTII-72V-31DFI - Scag Turf Tiger II 72" Zero-Turn Mower, 31hp Kawasaki (SN: P2200001 - P2299999) STTII HYDRAULIC SYSTEM Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 31hp Kawasaki

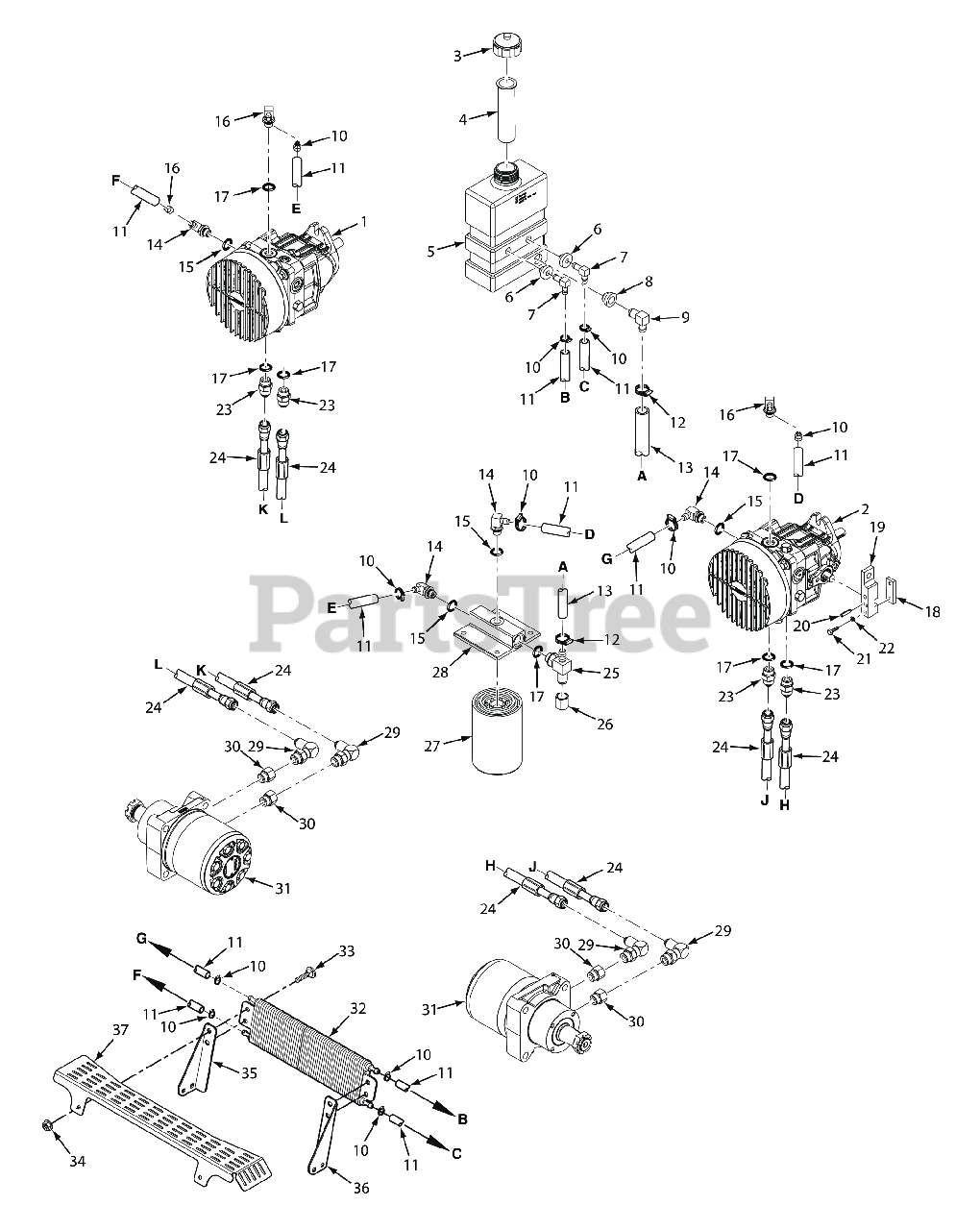

STTII HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Scag 483100

Pump w/Fan, Right Hand (791DFI,35BVAC)

$811.99

$

In Stock, only 1 left!

0

1

Scag 462954

Pump, RH w/Fan (26EFI Only)

$1177.99

$

Usually ships in 2-12 days

0

2

Scag 483101

Pump w/Fan, Left Hand (791DFI, 35BVAC)

$811.99

$

Usually ships in 2-12 days

0

3

Scag 481164

CAP, HYDRAULIC TANK

$17.99

$

In Stock, Qty 8

0

4

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

5

Scag 462845

Hydraulic Tank Assy., STTII

$202.99

$

Usually ships in 2-12 days

0

6

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

7

Scag 482572

Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring

$9.99

$

Usually ships in 2-12 days

0

8

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

In Stock, only 2 left!

0

9

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

In Stock, only 1 left!

0

10

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, Qty 20+

0

11

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

12

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

13

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

$0.99

$

In Stock, Qty 12

0

14

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$31.99

$

Usually ships in 2-12 days

0

15

Scag 48603-06

"O" RING, 5/64 X 15/32 ID

$6.99

$

In Stock, only 2 left!

0

16

Scag 482266-02

Elbow, 90 Degree - 3/4" O-Ring x 3/8" Hose

$28.99

$

In Stock, only 1 left!

0

17

Scag 48603-02

"O" RING, 3/32 X 5/8" ID

$3.49

$

In Stock, only 3 left!

0

18

Scag 422694

Clamp Plate, Pump Control

$13.99

$

In Stock, only 1 left!

0

19

Scag 485969

Block, RH Pump Control

$31.99

$

Usually ships in 2-12 days

0

19

Scag 485968

Block, LH Pump Control

$31.99

$

Usually ships in 2-12 days

0

20

Scag 04060-09

Roll Pin, Spring 3/16 x 3/4"

$1.49

$

In Stock, only 3 left!

0

21

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

22

Scag 04030-02

Lockwasher, 1/4� Spring

$0.99

$

In Stock, Qty 20+

0

23

Scag 48572-06

Fitting, Union 3/4-16 JIC X O-Ring

$10.99

$

Usually ships in 2-12 days

0

24

Scag 484458

Hose Assembly

$110.99

$

In Stock, only 1 left!

0

25

Scag 482477

Tee, 3/8" O-Ring x JIC x 1/2" Hose

$28.99

$

Usually ships in 2-12 days

0

26

Scag 48571-02

CAP, 3-4-16 JIC

$5.99

$

Usually ships in 2-12 days

0

27

Scag 48758

FILTER, SPIN-ON LUBE

$26.99

$

In Stock, Qty 20+

0

28

Scag 482417

Filter Head Assembly

$125.99

$

Usually ships in 2-12 days

0

29

Scag 48350-05

ELBOW, 90DEG, 7/8-14 JIC X 7/8-14 O-RING

$32.99

$

Usually ships in 2-12 days

0

30

Scag 48938-02

Bushing, 7/8"-14 JIC x 3/4"-16 O-Ring

$14.99

$

Usually ships in 2-12 days

0

31

Scag 484108

Wheel Motor, Parker TG - 18ci.

$812.99

$

Usually ships in 2-12 days

0

32

Scag 482505

Cooler, Transmission

$241.99

$

Usually ships in 2-12 days

0

33

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

35

Scag 425438

Mounting Bracket - RH, Oil Cooler

$22.99

$

Usually ships in 2-12 days

0

36

Scag 425437

Mounting Bracket - LH, Oil Cooler

$22.99

$

Usually ships in 2-12 days

0

37

Scag 427084

Screen Guard, Kohler EFI

Note: Air Cooled Models Only.

$99.99

$

Usually ships in 2-12 days

0

37

Scag 427094

Screen Guard, Briggs & Stratton 35BV

Note: Air Cooled Models Only.

$98.99

$

Usually ships in 2-12 days

0

37

Scag 427484

Screen Guard, Briggs & Stratton 37BV-EFI

Note: Air Cooled Models Only.

$31.99

$

Usually ships in 2-12 days

0
