STTII-72V-25KBD - Scag Turf Tiger II 72" Zero-Turn Mower, 25hp Kubota (SN: S9400001 - S9499999) ELECTRICAL SCHEMATIC - KUBOTA 25KBD Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 25hp Kubota

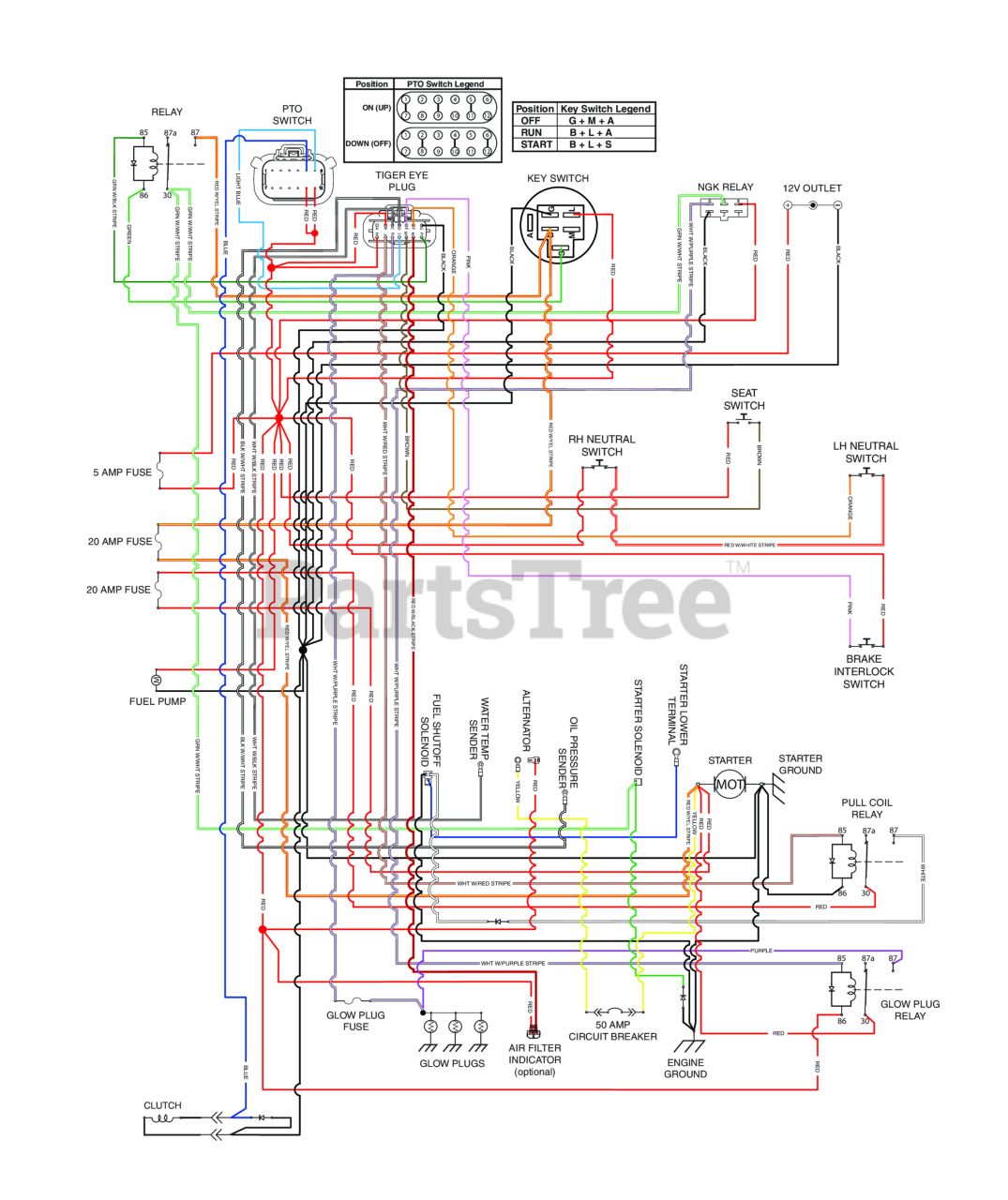

ELECTRICAL SCHEMATIC - KUBOTA 25KBD Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
