STTII-72V-25KBD - Scag Turf Tiger II 72" Zero-Turn Mower, 25hp Kubota (SN: S9400001 - S9499999) (Rev 01) STTII ENGINE AND ATTACHING PARTS - AIR COOLED (GASOLINE) Parts Diagram

Turf Tiger II 72" Zero-Turn Mower, 25hp Kubota

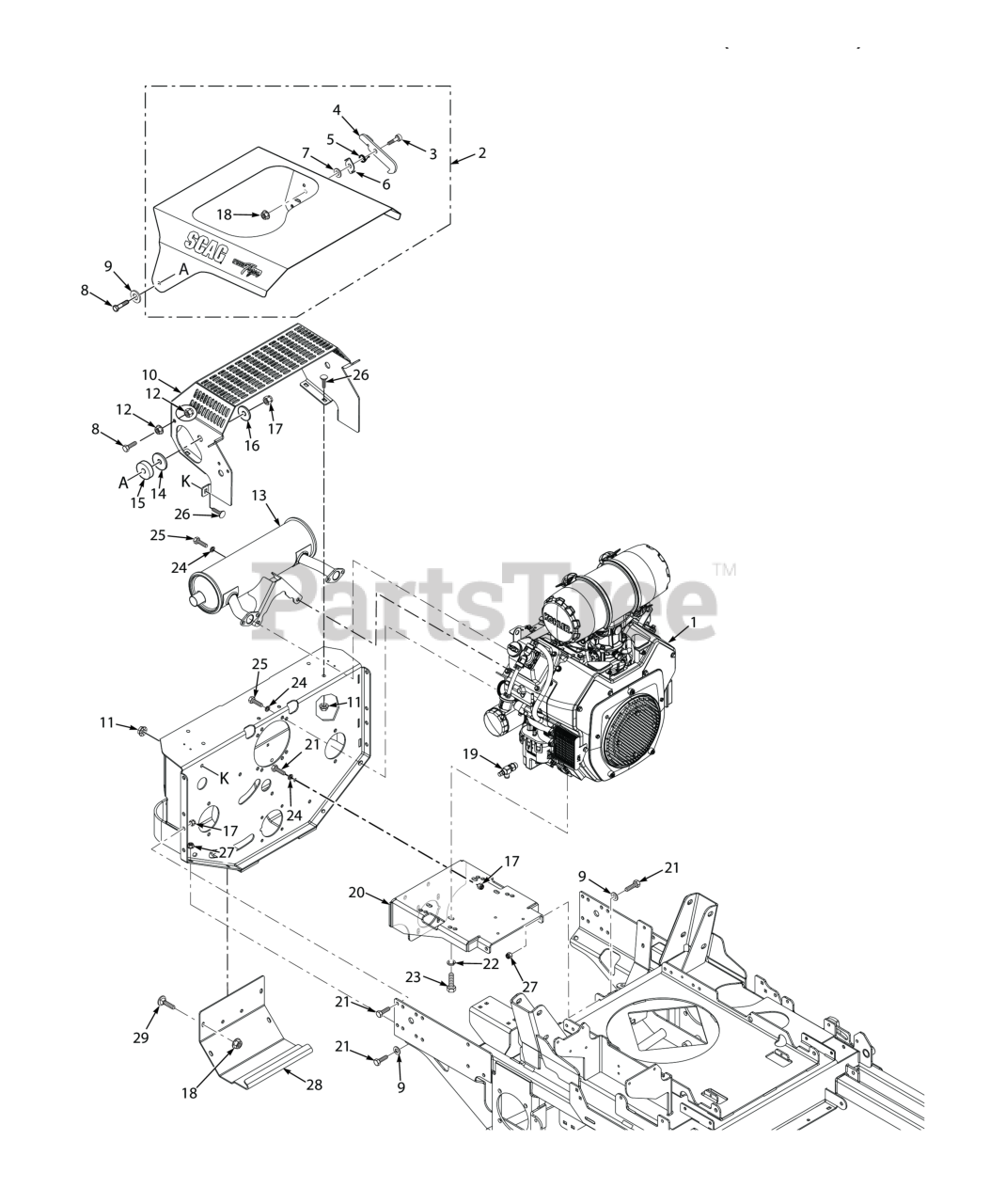

STTII ENGINE AND ATTACHING PARTS - AIR COOLED (GASOLINE) Parts Diagram

  • Title

3

Scag 04009-07

Bolt, Shoulder 5/16-18 x 1/2"

$4.49

$

In Stock, Qty 6

0

4

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

5

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

6

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

7

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

8

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 427561

Guard, Muffler

$273.99

$

Usually ships in 2-12 days

0

11

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

12

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

14

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

15

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

17

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

20

Scag 452726

Plate Weldment, Engine Mounting
(Superseded to 453380)

$142.99

$

Usually ships in 2-12 days

0

21

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

26

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

27

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 427071

Cover, Rear

$36.99

$

In Stock, only 1 left!

0

29

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0
