STTII-61V-40BV-EFI - Scag Turf Tiger II 61" Zero-Turn Mower, 40hp Vanguard (SN: V7200001 - V7299999) STTII ENGINE & ATTACHING PARTS - KUBOTA DIESEL Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 40hp Vanguard

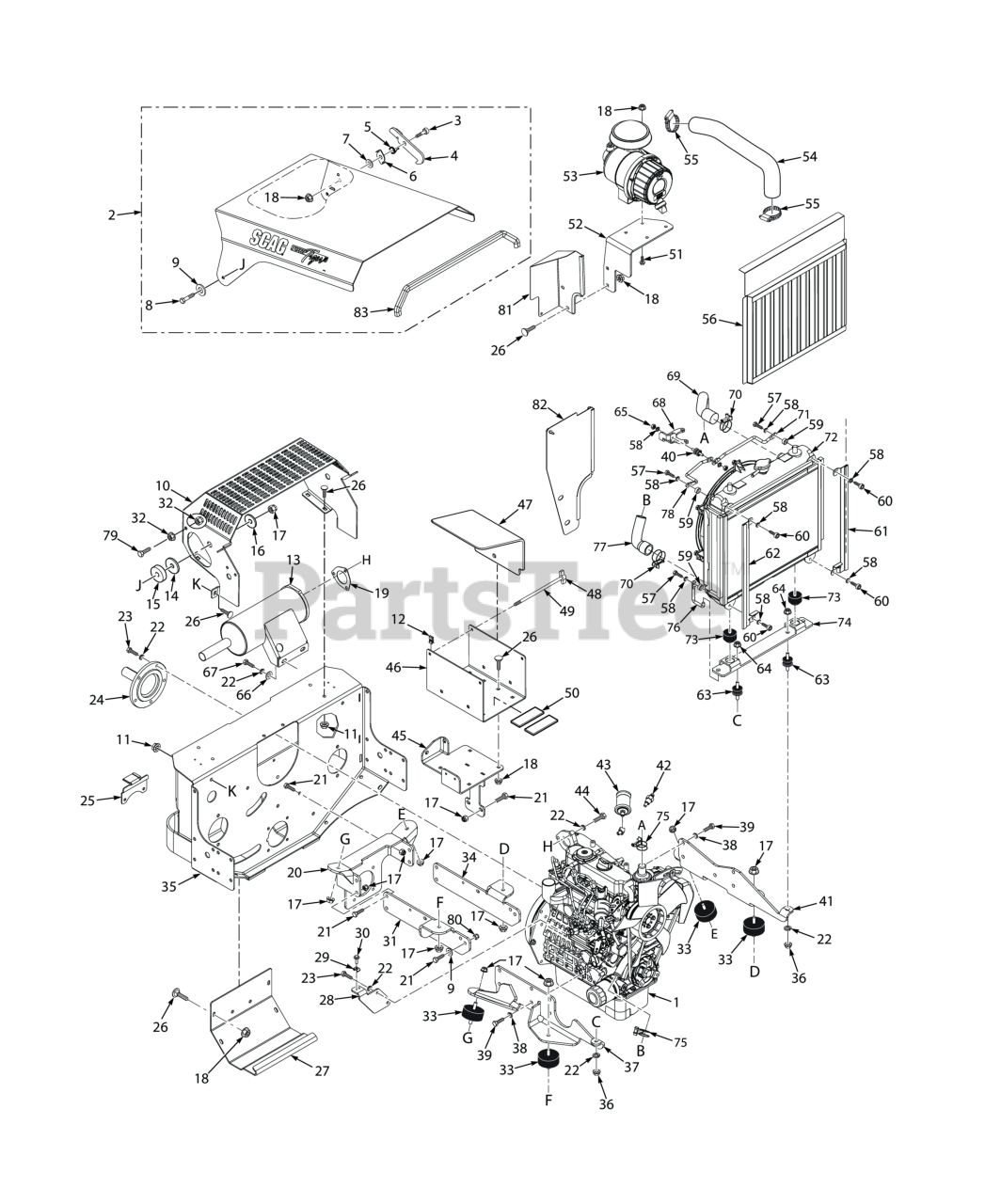

STTII ENGINE & ATTACHING PARTS - KUBOTA DIESEL Parts Diagram

  • Title

1

Scag 485749

Engine, D902 - Kubota

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 462917

Hood Assy., STTII (Kubota Diesel)

$164.99

$

Usually ships in 2-12 days

0

3

Scag 04009-07

Bolt, Shoulder 5/16-18 x 1/2"

$4.49

$

In Stock, Qty 6

0

4

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

5

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

6

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

7

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

8

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 427561

Guard, Muffler

$273.99

$

Usually ships in 2-12 days

0

11

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

12

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

13

Scag 483811

Muffler, Kubota

$474.99

$

Usually ships in 2-12 days

0

14

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

15

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

17

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

19

Scag 483387

Gasket, Muffler

$29.99

$

Usually ships in 2-12 days

0

20

Scag 424452

Plate, Rear Engine Mount

$

$

Not available

21

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

23

Scag 04002-12

Bolt, Metric Hex Head M8-1.25 x 20LG

$0.99

$

In Stock, Qty 9

0

24

Scag 482334

Stub Shaft, (Kubota)

$144.99

$

Usually ships in 2-12 days

0

25

Scag 426054

Bracket, Belt Guide

$7.49

$

Usually ships in 2-12 days

0

26

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

27

Scag 427071

Cover, Rear

$36.99

$

In Stock, only 1 left!

0

28

Scag 424485

Bracket, Control Mount

$20.99

$

Usually ships in 2-12 days

0

29

Scag 424580

Clamp

$5.99

$

Usually ships in 2-12 days

0

30

Scag 04011-06

SCREW, 10-32 X 3/4" SELF TAP

$0.99

$

Usually ships in 2-12 days

0

31

Scag 427137

Plate, Engine Mount RH

$39.99

$

Usually ships in 2-12 days

0

32

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

33

Scag 483351

Mount, Engine Isolation

$42.99

$

Usually ships in 2-12 days

0

34

Scag 427136

Plate, Engine Mount LH

$39.99

$

Usually ships in 2-12 days

0

35

Scag 452886

Pump Mounting Plate Weldment (Diesel)

$496.99

$

Usually ships in 2-12 days

0

36

Scag 04025-02

Nut, Metric Hex M8-1.25mm

$1.49

$

Usually ships in 2-12 days

0

37

Scag 452792

Mounting Bracket Weldment RH

$75.99

$

Usually ships in 2-12 days

0

38

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 20+

0

39

Scag 04002-10

Bolt, Metric Hex Head M10-1.25 x 25LG

$0.99

$

Usually ships in 2-12 days

0

40

Scag 484069

ISO Mount, Upper Radiator

$105.99

$

Usually ships in 2-12 days

0

41

Scag 452791

Mounting Bracket Weldment LH

$75.99

$

Usually ships in 2-12 days

0

42

Scag 483360

Temperature Sensor, Engine Coolant

$31.99

$

Usually ships in 2-12 days

0

43

Scag 481811

Sender Unit, Oil Pressure

$241.99

$

Usually ships in 2-12 days

0

44

Scag 04002-01

Bolt, Metric Hex Head M8-1.25 x 30LG

$0.99

$

In Stock, only 4 left!

0

45

Scag 453112

Battery Bracket Weldment (Diesel Only)

$79.99

$

Usually ships in 2-12 days

0

46

Scag 463320

Battery Box w/Decal (Diesel Only)

$43.99

$

Usually ships in 2-12 days

0

47

Scag 428257

Cover, Battery (Diesel Only)

$34.99

$

Usually ships in 2-12 days

0

Scag 481780

Insulation, Battery Cover

$10.99

$

Usually ships in 2-12 days

0

48

Scag 485698-01

Knob, 1/4" Wing

$0.99

$

In Stock, Qty 20+

0

49

Scag 04001-221

Bolt, Hex Head 1/4-20 x 8"

$3.99

$

In Stock, Qty 18

0

50

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0

51

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

52

Scag 427140

Bracket, Air Cleaner Mount

$69.99

$

Usually ships in 2-12 days

0

53

Scag 485322

Air Filter Assembly (Enginaire p/n 67150)

$277.99

$

In Stock, only 1 left!

0

54

Scag 484697

Hose, Air Intake

$100.99

$

Usually ships in 2-12 days

0

55

Scag 48136-25

Clamp, 2-3/4" Max. Dia.

$4.99

$

Usually ships in 2-12 days

0

56

Scag 463423

Debris Screen Assembly (With Upper Foam)

$320.99

$

Usually ships in 0 days

0

57

Scag 04002-20

Bolt, Metric Hex Hd. M6-1.0 x 30mm

$0.99

$

Usually ships in 2-12 days

0

58

Scag 04030-02

Lockwasher, 1/4� Spring

$0.99

$

In Stock, Qty 20+

0

59

Scag 43714

Spacer, Radiator

$7.49

$

Usually ships in 2-12 days

0

60

Scag 04106-01

Capscrew, Metric M6-1.0 x 16mm

$0.99

$

Usually ships in 2-12 days

0

61

Scag 424623

Debris Screen Track RH

$97.99

$

Usually ships in 2-12 days

0

62

Scag 424624

Debris Screen Track LH

$72.99

$

Usually ships in 2-12 days

0

63

Scag 483928

ISO Mount, Lower Radiator

$110.99

$

In Stock, only 2 left!

0

64

Scag 04111-04

Nut, Metric Serr. Flng. M8 x 1.25

$0.99

$

Usually ships in 2-12 days

0

65

Scag 04025-01

Nut, Metric Hex M6 x 1

$0.99

$

Usually ships in 2-12 days

0

66

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

67

Scag 04002-03

Bolt, Metric Hex Head M8-1.25 x 25LG

$0.99

$

In Stock, only 1 left!

0

68

Mount, Hose - (Kubota p/n 1G930-72191)

Note: Available through the engine manufacturer.

$

$

Not available

69

Hose, Upper - (Kubota p/n 1G952-72851)

Note: Available through the engine manufacturer.

$

$

Not available

70

Clamp, Large - (Kubota p/n 09318-89030)

Note: Available through the engine manufacturer.

$

$

Not available

71

Brace, LH - (Kubota p/n1G960-72141)

Note: Available through the engine manufacturer.

$

$

Not available

72

Radiator Assy - (Kubota p/n 1G952-72001)

Note: Available through the engine manufacturer. | Includes Items #40, #63 and #68 thru #78

$

$

Not available

73

Cushion, Radiator - (Kubota p/n 1G952-72181)

Note: Available through the engine manufacturer.

$

$

Not available

74

Brkt, Rad Mount - (Kubota p/n 1G952-72151)

Note: Available through the engine manufacturer.

$

$

Not available

75

Clamp, Small - (Kubota p/n 09318-89039)

Note: Available through the engine manufacturer.

$

$

Not available

76

Mount, Lwr Rad - (Kubota p/n 1G952-30821)

Note: Available through the engine manufacturer.

$

$

Not available

77

Hose, Lower - (Kubota p/n 1G952-72941)

Note: Available through the engine manufacturer.

$

$

Not available

78

Brace, RH - (Kubota p/n 1G960-72131)

Note: Available through the engine manufacturer.

$

$

Not available

79

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

80

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

81

Scag 463417

Heatshield Assembly, Air Filter

$61.99

$

Usually ships in 2-12 days

0

Scag 481017-03

Trim Seal

$16.99

$

Usually ships in 0 days

0

Scag 486388-03

Edge Trim, Trim Lock

$8.49

$

Usually ships in 2-12 days

0

82

Scag 463418

Heatshield Assembly, Engine

$57.99

$

Usually ships in 0 days

0

Scag 486388-03

Edge Trim, Trim Lock

$8.49

$

Usually ships in 2-12 days

0

Scag 481017-03

Trim Seal

$16.99

$

Usually ships in 0 days

0

Scag 485846

BUMPER, PLUG

$8.99

$

Usually ships in 2-12 days

0

83

Scag 481017-02

Trim Seal

$33.99

$

Usually ships in 0 days

0
