STTII-61V-40BV-EFI - Scag Turf Tiger II 61" Zero-Turn Mower, 40hp Vanguard (SN: V7200001 - V7299999) STTII ENGINE AND ATTACHING PARTS - AIR COOLED (GASOLINE) Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 40hp Vanguard

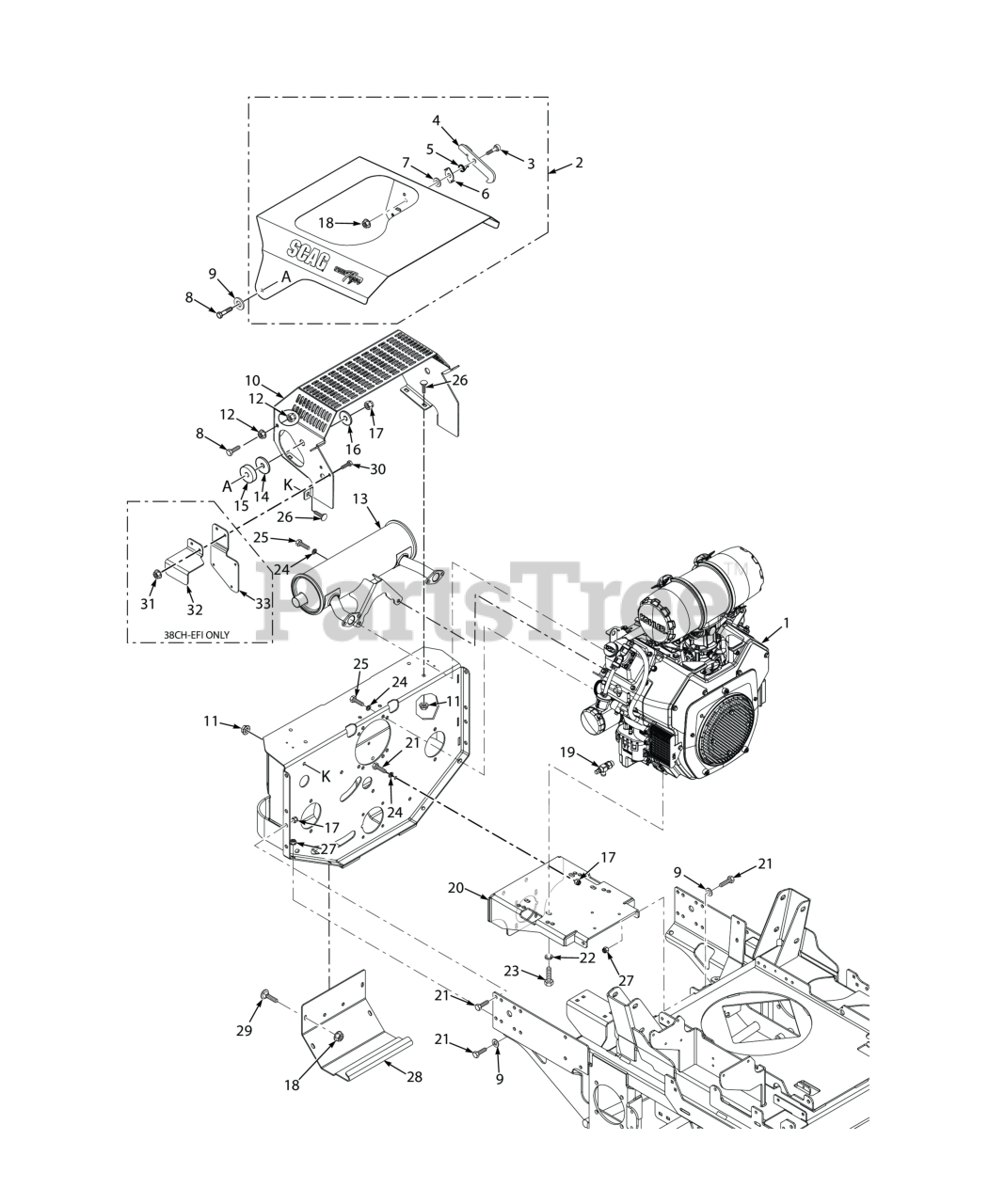

STTII ENGINE AND ATTACHING PARTS - AIR COOLED (GASOLINE) Parts Diagram

  • Title

1

Scag 487035

Engine, 40BV-EFI - Briggs & Stratton

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 462963

Hood Assy., STTII (37BV-EFI)

Note: (37BV-EFI & 40BV-EFI)

$136.99

$

Usually ships in 2-12 days

0

3

Scag 04009-07

Bolt, Shoulder 5/16-18 x 1/2"

$4.49

$

In Stock, Qty 6

0

4

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

5

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

6

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

7

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

8

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 429112

Guard, Muffler

$261.99

$

Usually ships in 2-12 days

0

11

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

12

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

13

Muffler, 37BV-EFI & 40BV-EFI - Briggs & Stratton

Note: Available through the individual engine manufacturer.

$

$

Not available

14

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

15

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

17

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

19

Scag 483017

Oil Drain, 35BV & 37BV-EFI - Briggs & Stratton

$46.99

$

In Stock, Qty 16

0

20

Scag 453380

Plate Weldment, Engine Mounting

$142.99

$

Usually ships in 2-12 days

0

21

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 20+

0

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

Scag 04001-53

Bolt, Hex Head 5/16-18 x 2-1/2" (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 13

0

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 20+

0

25

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

26

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

27

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 427071

Cover, Rear

$36.99

$

In Stock, only 1 left!

0

29

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

31

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

32

Scag 427301

Guard, Fuel Pump

$6.99

$

Usually ships in 2-12 days

0

33

Scag 427300

Bracket, Fuel Pump

$10.99

$

Usually ships in 2-12 days

0
